1. Introduction
The ZONETECH Universal Car Power Door Lock Actuator is designed to provide reliable and smooth operation for your vehicle's door locking system. This 4-pack includes actuators suitable for adding power door locks to vehicles without central locking systems or replacing existing worn units. The actuators feature a clutch drive system for smooth operation, a slim design for versatile fitting, and are constructed from high-impact resin for durability.
2. Safety Information
- Always disconnect the vehicle's battery before beginning any electrical installation to prevent electrical shock or damage.
- Professional installation is recommended for optimal results and to prevent damage to your vehicle's electrical system or door mechanisms.
- Ensure all wiring connections are properly insulated and secured to prevent short circuits, corrosion, or interference with moving parts.
- Wear appropriate safety gear, including eye protection, during installation.
3. Package Contents
Verify that all components are present before beginning installation:
- 4x ZONETECH Power Door Lock Actuators
- 4x Mounting Straps
- 4x Connecting Rods
- 4x Connecting Adapters
- Mounting Screws

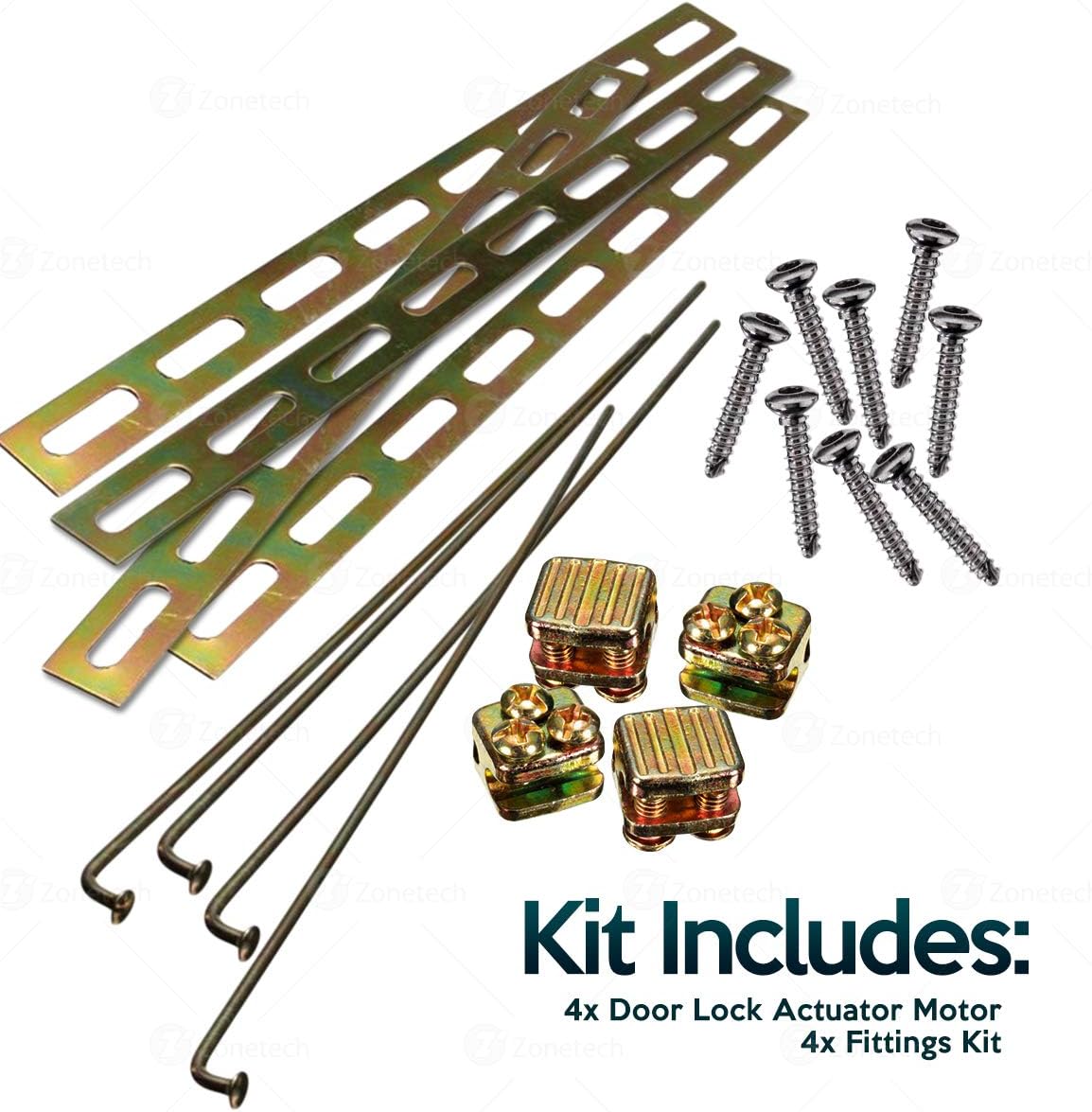

Figure 1: Kit Contents - Four actuators and associated hardware.
4. Product Features
- Clutch Drive System: Provides smooth operation without adding tension to the manually driven door lock lever, allowing for both power and manual locking/unlocking.
- Slim Design: Ultra-thin profile enables fitting into restricted spaces within vehicle doors. Each actuator delivers a consistent 13 lbs of push and pull force.
- 2-Wire Design: Simplifies wiring for integration into existing or new central locking systems. Features a unique rotatable and changeable head for installation flexibility.
- Premium Quality Construction: The actuator case is made from high-impact resin, sonically sealed and riveted for smooth, quiet operation, ensuring maximum strength and durability. The unit is waterproof and dust-free.
Figure 2: Actuator Detail - Highlighting premium quality and wiring.
Figure 3: Slim Design - Side view of the actuator demonstrating its compact profile.
5. Specifications
| Brand | ZONETECH |
| Model Number | GA0042 |
| Voltage | 12 Volts |
| Material | High-Impact Resin |
| Item Dimensions (L x W x H) | 1 x 8 x 2 inches |
| Item Weight | 4 ounces (0.25 Pounds) |
| Number of Pieces | 4 (in this pack) |
| Lock Type | Pin Tumbler |
| UPC | 723508910649 |
Figure 4: Universal Fit and Dimensions - Actuator with measurements.
6. Setup and Installation
This section outlines the general steps for installing the ZONETECH power door lock actuator. Due to variations in vehicle models, some steps may differ. Professional installation is highly recommended.
- Remove Door Panel: Carefully remove the interior door panel of the door where you are installing or replacing the actuator. Identify the existing door lock mechanism and the path of the lock rod. Ensure there is sufficient space for the new actuator without interfering with window mechanisms.
- Prepare Actuator for Mounting: Insert the provided connecting rod through the swivel hole on the actuator. Insert the connecting rod and your vehicle's existing door lock rod into the connecting adapter. Insert the included small adapter screws into the connecting adapter, but do not tighten them yet.
- Mount the Actuator: Position the actuator in a location that allows for full travel and does not obstruct other door components. It is crucial that the actuator is parallel to the vehicle's existing door lock rod. If necessary, slightly bend the connecting rod to achieve proper alignment. Mount the actuator securely to the vehicle's door with the supplied mounting screws and straps. Ensure a firm, stable attachment.
- Final Adjustments: Position both the actuator and the vehicle's door lock rod in the locked/down position. Adjust the connecting adapter and connecting rod, then tighten the adapter screws using a Phillips head screwdriver. Verify that the lock/unlock operation is smooth and unobstructed before reattaching the door panel. Ensure all wiring is routed safely and not exposed to sharp edges or moving parts.
Wiring: The actuator uses a 2-wire system. Typically, one wire is for locking and the other for unlocking when connected to a central locking module or alarm system. Consult your vehicle's wiring diagram or the central locking system's instructions for specific connections.
Figure 5: Actuator Mounting - Illustrates the actuator being positioned inside a car door.
Figure 6: Rod Connection - Detail of the actuator linked to the door lock rod.
Figure 7: Installation Diagram - Visual guide for mounting and connecting the actuator.
7. Operating Instructions
Once properly installed and connected to a compatible central locking system or alarm, the ZONETECH power door lock actuators will operate electronically. When a signal is sent from your vehicle's remote or central locking switch, the actuators will engage to either lock or unlock the vehicle doors. The integrated clutch drive system ensures that manual operation of the door lock lever remains functional without resistance from the actuator.
8. Maintenance
The ZONETECH power door lock actuators are designed for durability and minimal maintenance. The waterproof and dust-free construction protects internal components from environmental factors.
- Periodic Inspection: Periodically inspect all wiring connections to ensure they remain secure and free from corrosion.
- Mechanical Check: Ensure that the actuator's movement is unobstructed and that the connecting rod operates smoothly without binding.
- Cleaning: If the door panel is removed for other maintenance, gently wipe any accumulated dust or debris from the actuator's exterior. Do not use harsh chemicals.
9. Troubleshooting
- Actuator Not Responding:
- Check all electrical connections for proper contact and ensure they are not loose or corroded.
- Verify that the central locking system or alarm is receiving power and functioning correctly.
- Test the actuator directly with a 12V power source to confirm its functionality.
- Weak Locking/Unlocking Force:
- Ensure the actuator is mounted securely and is parallel to the door lock rod. Misalignment can reduce effective force.
- Check for any obstructions or excessive friction in the door's mechanical locking mechanism that might impede the actuator's movement.
- Verify that the vehicle's electrical system is providing adequate voltage to the actuator.
- Unusual Noise During Operation:
- Inspect the actuator's mounting for any looseness. Tighten all screws and ensure the mounting straps are firm.
- Check if the connecting rod or any part of the actuator is rubbing against the door panel or other internal components. Adjust positioning if necessary.
10. Warranty and Support
ZONETECH products are manufactured to high standards. For specific warranty information, please refer to the product packaging or contact ZONETECH customer service directly. If you encounter any issues or require technical assistance, please reach out to our support team for guidance.
Contact Information: Please visit the official ZONETECH website or refer to your purchase documentation for customer service contact details.
