1. Product Overview
The HOMCOM Portable Aluminum Massage Table (Model: ES5550-32830731) is a versatile and robust solution designed for professional and personal use in various settings, including massage therapy, physiotherapy, beauty treatments, and acupuncture. Its lightweight aluminum frame ensures stability and portability, while the high-quality PU leather and dense foam padding provide maximum comfort for the user.
This table features adjustable height and an adjustable headrest angle, allowing for customized positioning. It is also designed for easy folding and storage, making it convenient for transport and space-saving.
Figure 1: The HOMCOM Portable Aluminum Massage Table in its fully assembled state, showcasing its black and orange design.
2. Setup and Assembly
Follow these steps to set up your massage table:
- Unfolding the Table: Place the folded table on its side on a flat, stable surface. Release the metal latches securing the two halves of the table. Carefully unfold the table, allowing the legs to extend outwards. Ensure all four legs are fully extended and locked into place.
- Adjusting Height: The table height can be adjusted from 62 cm to 82 cm. Locate the adjustment knobs or pins on each leg. Press the pin and slide the inner leg section up or down to the desired height. Ensure the pin clicks securely into one of the 9 available positions on all four legs for stability.
- Attaching Accessories:
- Headrest: Insert the headrest support bars into the designated slots at one end of the table. The angle of the headrest can be adjusted for optimal client comfort.
- Armrests: Slide the armrest supports into the slots on the sides of the table.
- Hand Support: Attach the hand support sling to the designated points beneath the headrest for additional comfort.
Figure 2: The massage table fully unfolded and ready for use in a typical room setting.
Figure 3: Illustration showing the adjustable backrest angle and the 9-position height adjustment feature of the table legs.

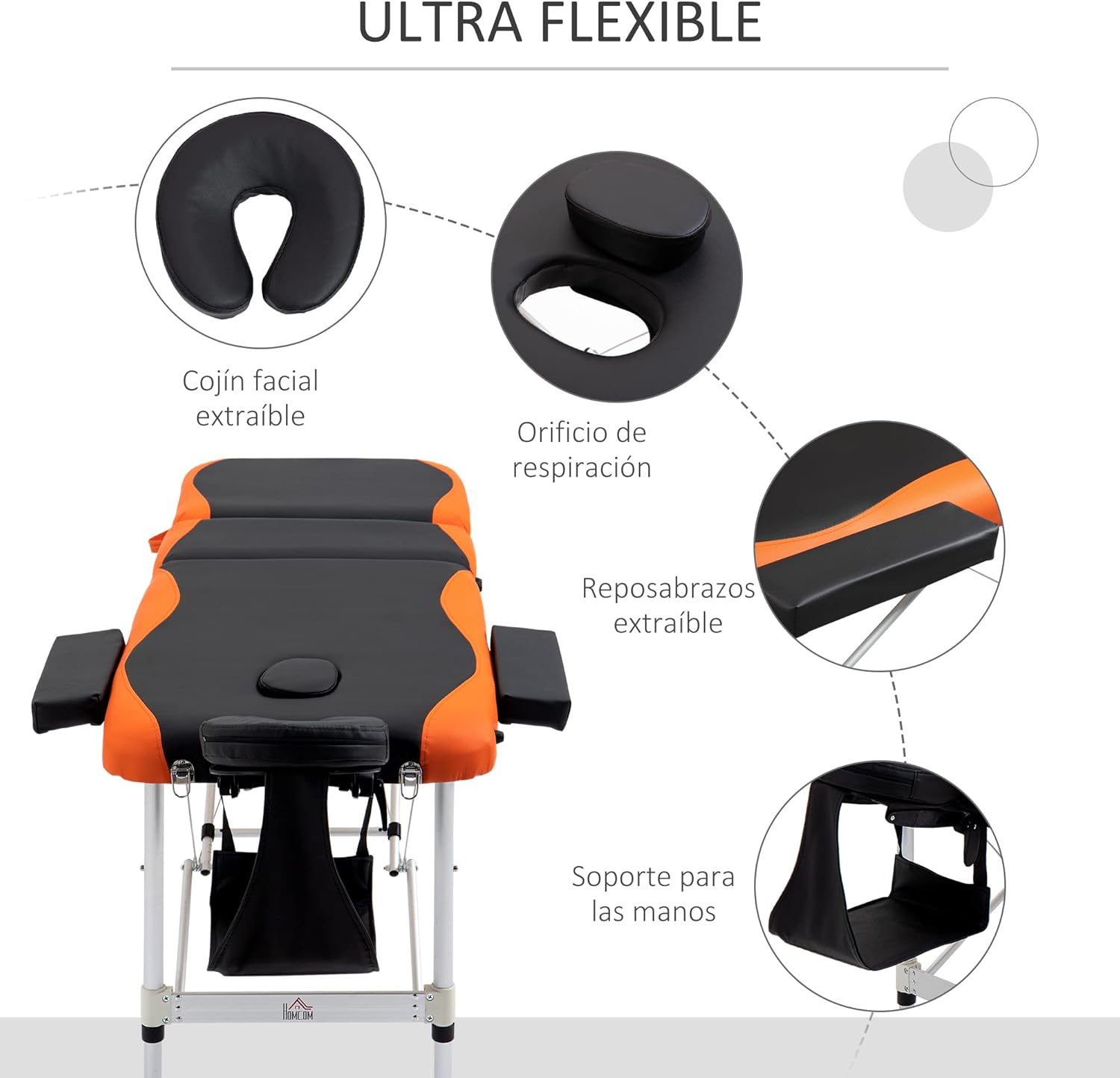

Figure 4: Detailed view of the table's flexible features, including the removable facial cushion, breathing hole, extraíble armrests, and hand support.
3. Operation
The HOMCOM massage table is designed for ease of use and client comfort.
- Client Positioning: Guide the client to lie down on the table. Utilize the adjustable headrest and armrests to ensure they are in a comfortable and relaxed position for the duration of the session. The breathing hole with a removable cushion allows clients to lie face down comfortably.
- Adjusting Backrest Angle: The backrest section of the table can be inclined to various angles. To adjust, lift the backrest slightly and engage the support mechanism to the desired notch. Ensure it is securely locked before the client leans on it.
- Comfort Features: The table is padded with 5 cm thick high-density foam and covered with oil and water-resistant PU leather, providing a soft and comfortable surface.

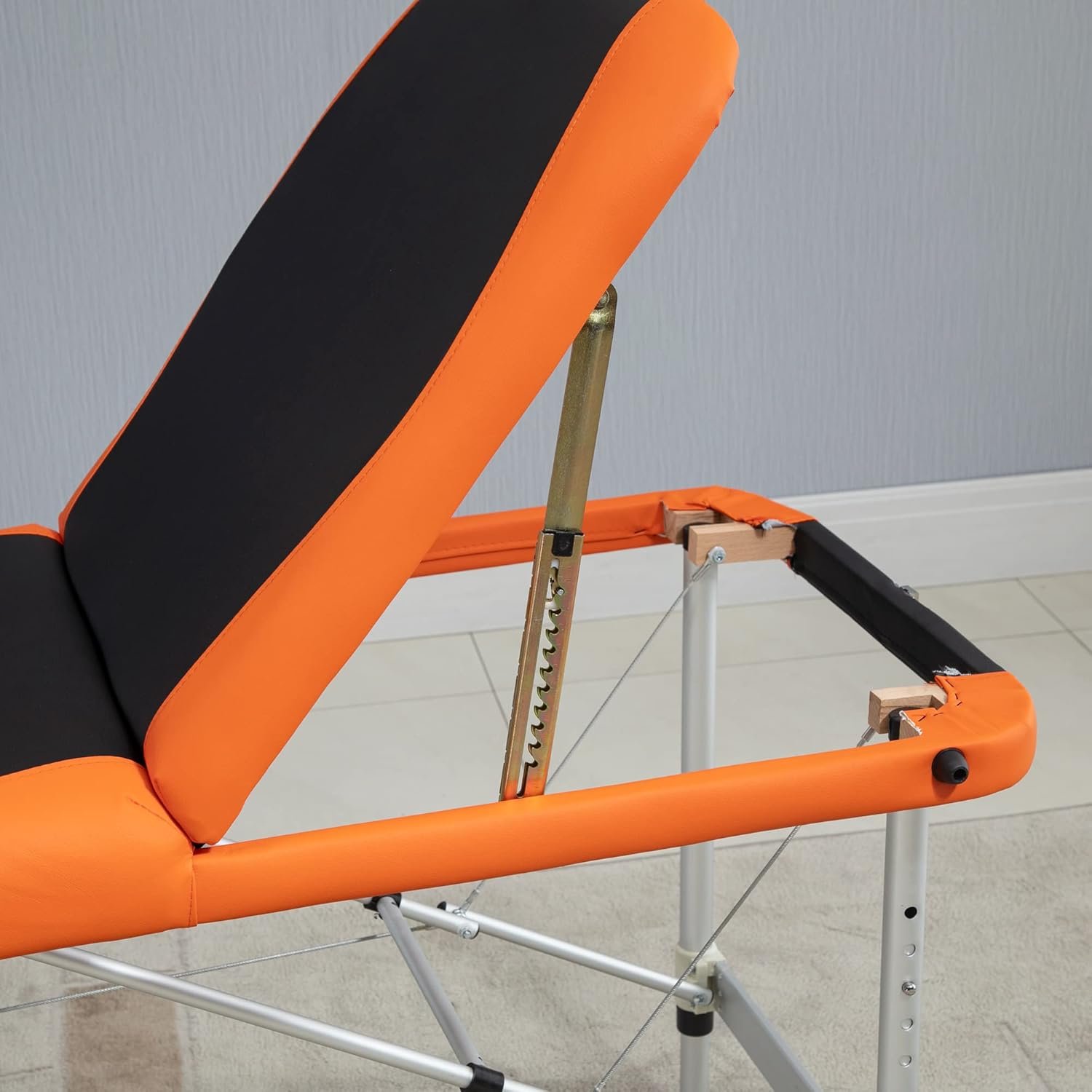

Figure 5: A close-up view of the adjustable backrest mechanism, showing the support bar and adjustment notches.
Figure 6: Images illustrating the high-density foam padding and the durable PVC leather material used for maximum comfort.
4. Maintenance
Proper maintenance will extend the life of your massage table.
- Cleaning: The PU leather surface is water and oil resistant, making it easy to clean. Wipe the surface with a damp cloth after each use. For stubborn stains, use a mild soap solution and wipe dry immediately. Avoid abrasive cleaners or solvents that could damage the material.
- Storage: When not in use, fold the table to save space and protect it from dirt and damage. Ensure all accessories are detached and stored securely within the folded table or separately. Secure the table with its metal latches to prevent accidental unfolding.
- Inspection: Periodically inspect all moving parts, hinges, and leg adjustments for wear and tear. Ensure all screws and bolts are tight. Do not use the table if any part appears damaged or unstable.
Figure 7: The table in its folded state, highlighting the metal latches that secure it for transport and storage.
5. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Table feels unstable or wobbly. | Legs not fully extended or locked; uneven leg height adjustment; loose connections. | Ensure all leg adjustment pins are securely engaged. Verify all four legs are set to the same height. Check and tighten any loose bolts or screws. Ensure the table is on a flat, level surface. |
| Difficulty folding/unfolding the table. | Latches are stuck; mechanism is stiff; obstruction. | Ensure latches are fully disengaged. Apply a small amount of silicone lubricant to hinges if stiff. Check for any objects obstructing the folding mechanism. |
| Headrest or armrests do not fit securely. | Incorrect insertion; debris in slots. | Ensure accessories are inserted correctly and fully into their respective slots. Check slots for any debris and clear if necessary. |
6. Product Specifications
- Model Number: ES5550-32830731
- Brand: HOMCOM
- Material: PU Leather, Aluminum, Plastic
- Color: Black and Orange
- Overall Dimensions (L x W x H): 185 x 60 x 62-82 cm (adjustable height)
- Folded Dimensions (approx.): 92.5 x 60 x 18 cm
- Product Weight: Approximately 14.5 kg
- Weight Capacity: Up to 225 kg
- Padding Thickness: 5 cm (high-density foam)
- Special Features: Adjustable height, adjustable backrest angle, foldable design, comfortable padding, oil and water-resistant surface, removable headrest, armrests, and hand support.
Figure 8: Diagram illustrating the key dimensions of the HOMCOM massage table, including length, width, and adjustable height range.
7. Warranty and Support
For any questions, concerns, or issues regarding your HOMCOM Portable Aluminum Massage Table, please contact the manufacturer or the seller directly. Refer to your purchase documentation for specific warranty terms and contact information.
Manufacturer: HOMCOM
Seller: Spanish Aosom, S.L. (EU)
You can often find support contact details on the HOMCOM Brand Store on Amazon or through your order history.
