Ducasa Ducaverre White 1200W Glass Radiant Panel Heater User Manual

1. Introduction

This manual provides essential information for the safe installation, operation, and maintenance of your Ducasa Ducaverre White 1200W Glass Radiant Panel Heater. Please read these instructions carefully before use and retain them for future reference.

1.1 Safety Information

• Electrical Safety: Always ensure the heater is connected to a properly grounded electrical outlet. Do not operate with a damaged cord or plug.
• Placement: Maintain a safe distance from flammable materials (curtains, furniture) as indicated in the installation section. Do not cover the heater.
• Water Exposure: Do not install the heater near water sources (bathrooms, laundry rooms) unless specifically rated for such environments. Avoid direct water spray.
• Children and Vulnerable Individuals: This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Maintenance: Disconnect from power before cleaning or performing any maintenance.

1.2 Package Contents

Verify that all components are present in the packaging:

• Ducasa Ducaverre 1200W Glass Radiant Panel Heater
• Wall Mounting Bracket(s)
• Mounting Screws and Wall Plugs
• User Manual (this document)

2. Setup and Installation

Proper installation is crucial for the safe and efficient operation of your heater. If you are unsure about any step, consult a qualified electrician.

2.1 Wall Mounting

The Ducasa Ducaverre heater is designed for wall mounting. Choose a suitable location away from direct drafts, windows, and areas where it might be accidentally covered. Ensure there is sufficient clearance around the heater as specified in the diagram below.

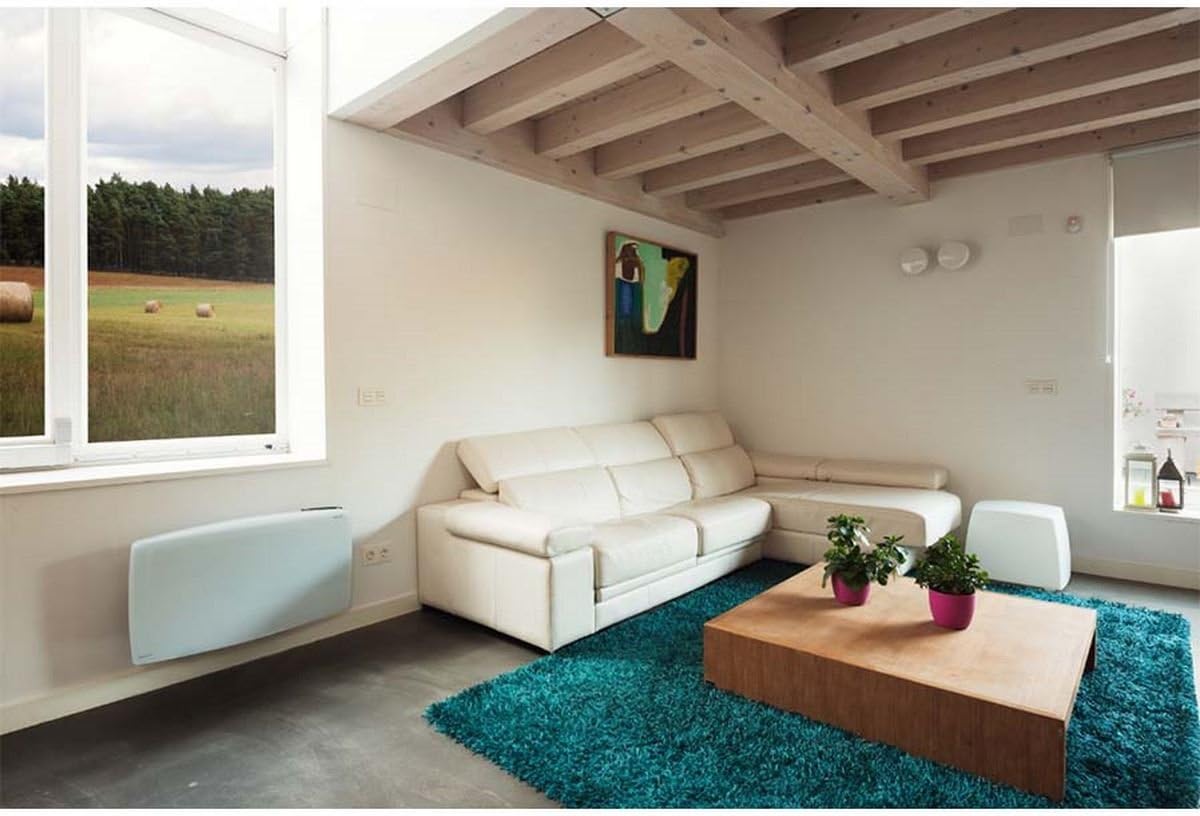

Image 1: Ducasa Ducaverre 1200W Glass Radiant Panel Heater mounted on a wall in a modern living room setting. The heater is white and rectangular, positioned low on the wall, illustrating a typical installation scenario.

1. Marking: Hold the mounting bracket against the wall at the desired height. Use a pencil to mark the drilling points.
2. Drilling: Drill holes at the marked points using an appropriate drill bit for your wall type. Insert the wall plugs.
3. Attach Bracket: Secure the mounting bracket to the wall using the provided screws. Ensure it is level and firmly attached.
4. Mount Heater: Carefully lift the heater and hook it onto the mounting bracket. Ensure it clicks securely into place. Some models may require additional screws to fix the heater to the bracket from below.

2.2 Electrical Connection

Once mounted, connect the heater to a standard electrical outlet. Ensure the outlet is easily accessible and rated for the heater's power consumption (1200W). Do not use extension cords or multi-plugs unless absolutely necessary and only if they are rated for the heater's power.

3. Operating Instructions

Your Ducasa Ducaverre heater features an intuitive control panel for setting temperature and operating modes.

Image 2: A close-up view of the black control panel located on the top right side of the white Ducasa Ducaverre heater. The panel features a digital display and several buttons labeled 'OK', '+', '-', 'MODE', and 'PROG', indicating user interface for settings and programming.

3.1 Control Panel Overview

• Digital Display: Shows current temperature, set temperature, and operating mode.
• MODE Button: Cycles through operating modes (Comfort, Eco, Frost Protection, Program).
• '+' / '-' Buttons: Adjust temperature settings or navigate menu options.
• OK Button: Confirms selections.
• PROG Button: Accesses programming functions.

3.2 Setting the Time and Day

Before using programmed modes, set the current time and day:

1. Press and hold the MODE button until the time setting appears.
2. Use '+' or '-' to adjust the hour, then press OK.
3. Repeat for minutes and day of the week.

3.3 Operating Modes

• Comfort Mode (C): Maintains your desired set temperature. Use '+' or '-' to adjust the temperature.
• Eco Mode (E): Maintains a temperature typically 3-4°C lower than the Comfort setting, saving energy.
• Frost Protection Mode (F): Maintains a minimum temperature (e.g., 7°C) to prevent freezing.
• Program Mode (P): Follows a pre-set weekly heating schedule.

3.4 Programming a Weekly Schedule

To set a custom heating schedule:

1. Press the PROG button. The display will show the current day and a time segment.
2. Use MODE to select the desired operating mode (Comfort, Eco, Frost Protection) for that specific hour.
3. Use '+' to advance to the next hour or '-' to go back.
4. Repeat for all 24 hours of the day.
5. Press PROG again to move to the next day.
6. Once all days are programmed, press OK to save and exit.

4. Maintenance

Regular cleaning ensures optimal performance and extends the lifespan of your heater.

4.1 Cleaning

1. Disconnect Power: Always unplug the heater from the electrical outlet before cleaning.
2. Exterior: Wipe the glass panel and exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish.
3. Dust: Use a soft brush or vacuum cleaner with a brush attachment to remove dust from air inlets and outlets.
4. Drying: Ensure the heater is completely dry before plugging it back in.

4.2 Storage

If storing the heater for an extended period, ensure it is clean and dry. Store it in its original packaging or a protective cover in a cool, dry place, away from direct sunlight and extreme temperatures.

5. Troubleshooting

If you encounter issues with your heater, refer to the following common problems and solutions:

• Heater does not turn on:
  • Check if the power cord is securely plugged into a working outlet.
  • Verify that the circuit breaker has not tripped.
  • Ensure the heater is not in standby mode.
• Heater is on but not heating:
  • Check the set temperature; it might be lower than the ambient room temperature.
  • Ensure the heater is not in Frost Protection mode if you expect higher heat output.
  • Verify that no objects are obstructing the air vents.
• Unusual noises:
  • Minor expansion/contraction noises are normal during heating and cooling cycles.
  • If noises are loud or persistent, disconnect power and contact support.
• Error Codes: If an error code appears on the display, note the code and consult the manufacturer's support or a qualified technician.

If the problem persists after attempting these solutions, disconnect the heater from the power supply and contact customer support.

6. Specifications

• Model: Ducasa Ducaverre 1200W
• Type: Glass Radiant Panel Heater
• Power Output: 1200W
• Voltage: 230V ~ 50Hz (Standard European)
• Material: Glass front panel
• Installation: Wall-mounted
• Dimensions: Refer to product packaging or manufacturer's website for exact measurements.
• ASIN: B01HZMXDAY

Image 3: A full, slightly angled view of the Ducasa Ducaverre 1200W Glass Radiant Panel Heater. The heater is white with a sleek glass surface, and the 'ducasa' brand name is visible on the top right, along with the small digital control panel.

7. Warranty and Support

Your Ducasa Ducaverre heater is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase or visit the official Ducasa website for detailed terms and conditions.

For technical assistance, spare parts, or warranty claims, please contact Ducasa customer support through their official channels. Have your product model and ASIN (B01HZMXDAY) ready when contacting support.
