Tiger MAA-C400-XC 4.0L Stainless Steel Air Pot Thermos Flask User Manual

1. Introduction

Thank you for purchasing the Tiger MAA-C400-XC 4.0L Stainless Steel Air Pot Thermos Flask. This manual provides essential information for the safe and efficient use, maintenance, and care of your new air pot. Please read these instructions thoroughly before first use and retain them for future reference.

This air pot is designed to keep beverages hot or cold for extended periods, making it ideal for various settings. Its durable stainless steel construction ensures longevity and reliable performance.

2. Safety Precautions

To prevent injury or damage to the product, always observe the following safety guidelines:

• Do not use the air pot for carbonated drinks, dry ice, or dairy products, as pressure buildup can cause the lid to eject or contents to spill.
• Do not overfill the air pot. Leave sufficient space to prevent spills when inserting the lid.
• Ensure the lid is securely closed before carrying or dispensing.
• Keep out of reach of children, especially when containing hot liquids.
• Do not place the air pot near heat sources or in a microwave oven.
• Avoid dropping or subjecting the air pot to strong impacts, as this may damage the vacuum insulation.
• Use only for its intended purpose of storing and dispensing beverages.
• Do not immerse the entire air pot in water. Refer to cleaning instructions.

3. Product Components

Familiarize yourself with the main parts of your Tiger Air Pot:

Image 3.1: Exploded view of the Tiger MAA-C400-XC Air Pot, showing the main stainless steel body, the detachable pump lid assembly, the internal pump tube, and the rubber sealing ring. This illustrates how the various parts separate for cleaning and assembly.

Image 3.2: The Tiger MAA-C400-XC Air Pot fully assembled. It features a sleek stainless steel body with a black pump-action lid and an integrated carrying handle, ready for use.

• Main Body: The double-walled, vacuum-insulated stainless steel container.
• Lid Assembly: Includes the pump mechanism, dispensing spout, and handle.
• Pump Tube: The internal tube that draws liquid from the bottom of the pot to the spout.
• Sealing Ring: Ensures an airtight seal between the lid and the main body.

4. Setup Instructions

Before using your air pot for the first time, follow these steps:

1. Initial Cleaning: Wash all detachable parts (lid, pump tube, sealing ring) with warm water and mild dish soap. Rinse thoroughly and dry. Wipe the exterior of the main body with a damp cloth.
2. Assemble Pump Tube: Insert the pump tube into the designated opening on the underside of the lid assembly. Ensure it is firmly seated.

Image 4.1: A close-up view demonstrating the correct way to insert the pump tube into the underside of the lid assembly. The tube connects to the dispensing mechanism, allowing liquid to be drawn up from the pot.
3. Attach Lid: Place the lid assembly onto the main body, aligning the grooves. Twist the lid clockwise until it is securely locked in place.

5. Operating Instructions

5.1. Filling the Air Pot

1. Unlock and remove the lid assembly by twisting it counter-clockwise.
2. Carefully pour your desired hot or cold beverage into the main body. Do not fill beyond the maximum fill line (if indicated) or to the very top to prevent spills.

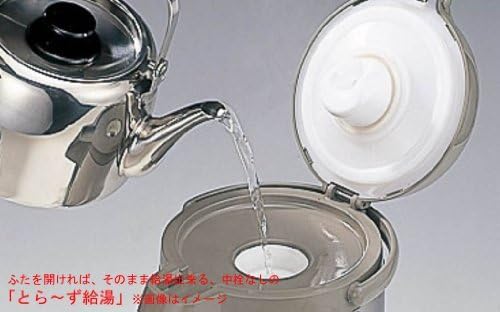

Image 5.1: This image shows a kettle pouring hot water directly into the wide opening of the Tiger Air Pot. The wide mouth facilitates easy filling and cleaning.

3. Securely reattach the lid assembly by twisting it clockwise until it locks.

5.2. Dispensing Beverages

1. Place a cup or mug under the dispensing spout.
2. Press down firmly and repeatedly on the pump button located on top of the lid until the beverage flows out.
3. Release the pump button to stop dispensing.

5.3. Heat and Cold Retention

The Tiger MAA-C400-XC Air Pot utilizes vacuum insulation technology to maintain beverage temperature:

• Heat Retention: Over 78°C (172°F) after 10 hours (initial temperature 95°C ±1°C at 20°C ±2°C room temperature).
• Cold Retention: Below 7°C (45°F) after 10 hours (initial temperature 4°C ±1°C at 20°C ±2°C room temperature).

6. Maintenance and Cleaning

Regular cleaning ensures hygiene and extends the life of your air pot.

1. Disassembly: Remove the lid assembly and detach the pump tube and sealing ring.
2. Cleaning the Interior: Wash the inside of the main body with warm water and mild dish soap using a soft sponge or brush. The wide mouth design facilitates easy cleaning and allows for large ice cubes.


Image 6.1: This image highlights the wide opening of the air pot, demonstrating its suitability for easy cleaning access and for inserting larger items like ice cubes, enhancing its cold retention capabilities.

3. Cleaning Lid Components: Wash the lid assembly, pump tube, and sealing ring with warm water and mild dish soap. Pay attention to the spout and pump mechanism to remove any residue.
4. Exterior Cleaning: Wipe the exterior of the main body with a damp cloth. The clear coating on the stainless steel exterior aids in maintenance and durability.

Image 6.2: A detailed shot of the air pot's stainless steel exterior, emphasizing the clear coating. This coating is designed to improve durability and simplify cleaning, helping to maintain the pot's appearance over time.
5. Drying: Ensure all parts are thoroughly dry before reassembling and storing to prevent odors or mold.
6. Storage: Store the air pot in a clean, dry place away from direct sunlight.

Note: Do not use abrasive cleaners, bleach, or metal brushes, as these can damage the finish or internal components.

7. Troubleshooting

If you encounter issues with your air pot, refer to the following common problems and solutions:

• Poor Heat/Cold Retention:
  • Ensure the lid is securely closed and the sealing ring is properly seated.
  • Check for any damage to the main body that might compromise the vacuum insulation.
  • Pre-heat with hot water or pre-chill with cold water for a few minutes before filling with your beverage.
• Difficulty Pumping/No Liquid Dispensed:
  • Verify that the pump tube is correctly inserted and extends to the bottom of the pot.
  • Ensure there is sufficient liquid inside the pot.
  • Check if the pump mechanism is clogged. Clean the lid assembly thoroughly.
• Leaking from Spout or Lid:
  • Confirm the lid is tightly secured and the sealing ring is in place and undamaged.
  • Do not overfill the air pot.

If the problem persists, please contact customer support.

8. Specifications

9. Warranty and Support

For warranty information or technical support, please refer to the warranty card included with your product or contact Tiger customer service directly. Keep your purchase receipt as proof of purchase.

For further assistance, please visit the official Tiger website or contact your local distributor.
