Relaxdays Garden Gazebo (Model: 10020077_45)

Introduction

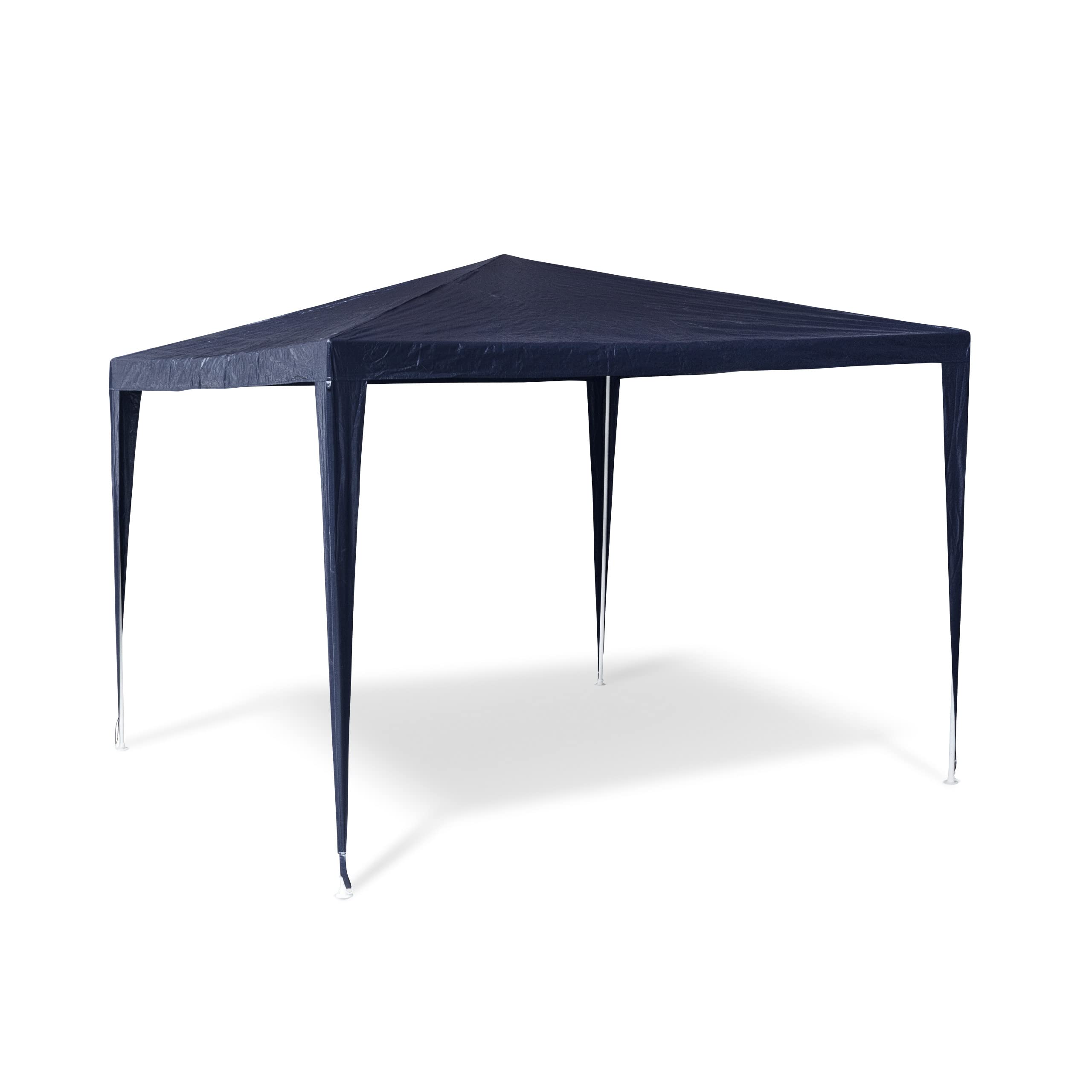

This manual provides essential instructions for the safe assembly, operation, and maintenance of your Relaxdays Garden Gazebo, model 10020077_45. This 2.5 x 3 x 3 meter blue gazebo is designed to offer protection from sun and wind, making it suitable for various outdoor events and garden use.

Safety Information

Please read all safety instructions carefully before assembly and use.

• Always follow the assembly instructions provided.
• Ensure the tent is properly anchored in windy conditions to prevent damage or injury.
• Keep the gazebo away from heat sources, open flames, and barbecues to avoid fire risks.
• Do not use the gazebo during severe weather conditions such as heavy rain, strong winds, or snow.
• Regularly inspect all components for wear and tear. Replace damaged parts immediately.

Package Contents

Verify that all components are present before beginning assembly:

• Steel frame poles (various lengths and types for legs, roof structure)
• Connectors for frame assembly
• Blue water-repellent canopy fabric
• Guy ropes
• Ground stakes (sardines)
• Plastic feet for leg bases
• Straps for securing the canopy

Setup and Assembly

The steel frame features a simple and efficient snap-in system for quick assembly. It is recommended that two or more people assemble the gazebo for ease and safety.

1. Unpack Components: Lay out all frame poles, connectors, and the canopy fabric on a clean, flat surface.
2. Assemble the Roof Frame: Connect the shorter steel poles using the appropriate connectors to form the top rectangular frame of the gazebo. Ensure all connections are secure.
3. Attach Roof Peak Poles: Insert the angled poles into the central roof connector and connect them to the corners of the rectangular roof frame.
4. Attach Legs: Connect the longer leg poles to the corner connectors of the roof frame. Ensure the plastic feet are attached to the bottom of each leg.
5. Drape Canopy: Carefully drape the blue canopy fabric over the assembled frame. Ensure the canopy is centered and covers the entire roof structure.
6. Secure Canopy: Use the provided straps to secure the canopy to the frame poles. Ensure it is taut to prevent water pooling.
7. Anchor the Gazebo: Attach the guy ropes to the designated points on the gazebo frame. Extend the ropes outwards and secure them firmly to the ground using the stakes. For additional stability, ensure all plastic feet are also anchored if possible.

Operating Instructions

Your Relaxdays Garden Gazebo is designed for temporary outdoor use, providing shade and shelter.

• Sun and Wind Protection: The gazebo offers effective protection against sun and light wind, making it ideal for garden parties, festivals, weddings, and other outdoor gatherings.
• Water Repellent: The blue fabric canopy is water-repellent, providing resistance against light rain. However, it is not fully waterproof and should not be relied upon during heavy rainfall.
• Stability: Always ensure the gazebo is securely anchored with all provided ropes and stakes, especially in areas prone to wind.
• Portability: The lightweight design allows for easy transport and setup in various locations.

Maintenance

Proper maintenance will extend the lifespan of your gazebo.

• Cleaning: Clean the canopy fabric with a damp cloth and mild soap. Do not use harsh chemicals or abrasive cleaners. Allow the fabric to air dry completely before storage.
• Frame Care: Wipe down the steel frame with a damp cloth to remove dirt and debris. Ensure all parts are dry to prevent rust.
• Storage: Disassemble the gazebo and store all components in a dry, cool place, away from direct sunlight and extreme temperatures. Ensure the canopy is completely dry before folding to prevent mildew.
• Inspection: Periodically check all poles, connectors, ropes, and stakes for any signs of damage, bending, or wear. Replace any compromised parts to maintain structural integrity.

Troubleshooting

Here are solutions to common issues you might encounter:

• Gazebo is unstable:
  Ensure all frame connections are fully engaged and secure. Verify that all guy ropes are taut and stakes are firmly driven into the ground. Check that the plastic feet are properly positioned and anchored.
• Water pooling on canopy:
  Ensure the canopy is stretched tightly over the frame. Adjust the straps to increase tension. If pooling persists, consider slightly adjusting the leg heights if possible to create a better slope for water runoff.
• Difficulty assembling frame poles:
  Ensure you are using the correct poles and connectors for each section as per the diagram. Apply gentle pressure; do not force connections. If a pole is bent, it may need replacement.
• Canopy tearing during assembly:
  Handle the canopy fabric carefully. Avoid dragging it over sharp edges of the frame. Ensure the frame is fully assembled and smooth before draping the canopy.

Specifications

Warranty and Support

For warranty information or customer support, please refer to the documentation included with your purchase or contact the seller directly. Keep your proof of purchase for any warranty claims.
