Introduction
This manual provides detailed instructions for the proper use and maintenance of your Tadiran GREE YT1F Air Conditioner Remote Control. Please read this manual thoroughly before operating the remote control to ensure optimal performance and longevity.
Product Overview
The Tadiran GREE YT1F remote control is designed for convenient operation of compatible Tadiran and GREE air conditioning units, including Tadiran Spirit models 10A, 15A, 17A, and 20A. It features various functions for precise climate control.
Figure 1: Front view of the Tadiran GREE YT1F Air Conditioner Remote Control, displaying the LCD screen and various control buttons.

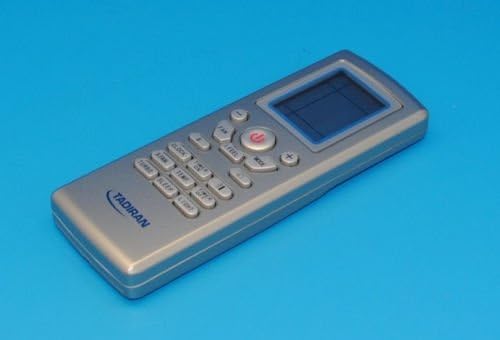

Figure 2: Angled view of the Tadiran GREE YT1F Air Conditioner Remote Control, highlighting its ergonomic design and button layout.
Setup
Battery Installation
- Locate the battery compartment cover on the back of the remote control.
- Slide the cover downwards or press the latch to open it.
- Insert two (2) AAA batteries, ensuring the positive (+) and negative (-) terminals match the markings inside the compartment.
- Replace the battery compartment cover, sliding it back into place until it clicks securely.
Note: Always use new batteries and replace both batteries at the same time. Do not mix old and new batteries or different types of batteries.
Operating Instructions
Point the remote control directly at the air conditioner unit's receiver when operating. Ensure there are no obstructions between the remote and the unit.
Key Functions:
- Power Button (Ⓘ): Turns the air conditioner unit ON or OFF.
- MODE Button: Cycles through operating modes: Auto, Cool, Dry, Fan, Heat (if applicable).
- FAN Button: Adjusts fan speed (Auto, Low, Medium, High).
- TEMP ▲/▼ Buttons: Adjusts the desired temperature setting.
- I FEEL Button: Activates the "I FEEL" function, which senses the temperature at the remote control's location for more precise comfort.
- TURBO Button: Initiates rapid cooling or heating for quick temperature adjustment.
- CLOCK Button: Sets the current time on the remote's display.
- TIMER ON Button: Sets a time for the air conditioner to turn ON automatically.
- TIMER OFF Button: Sets a time for the air conditioner to turn OFF automatically.
- SLEEP Button: Activates Sleep Mode, which adjusts temperature and fan speed for comfortable sleep and energy saving.
- LIGHT Button: Controls the display light on the air conditioner unit.
- BLOW Button: Activates the "Blow" function to dry the indoor unit's evaporator after cooling, preventing mold growth.
Maintenance
Cleaning the Remote Control
- Wipe the surface of the remote control with a soft, dry cloth.
- For stubborn dirt, lightly dampen the cloth with water and a mild detergent, then wipe dry immediately.
- Do not use abrasive cleaners, alcohol, or corrosive liquids, as these can damage the remote's surface or internal components.
Battery Replacement
Replace batteries when the display becomes dim or the remote control's range decreases. Refer to the "Battery Installation" section under Setup for detailed instructions.
Remove batteries if the remote control will not be used for an extended period to prevent leakage and damage.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Remote control not responding. | Dead or incorrectly installed batteries. Obstruction between remote and AC unit. Remote out of range. | Replace batteries with new ones, ensuring correct polarity. Remove any obstructions. Move closer to the AC unit. |
| Display is dim or blank. | Low battery power. | Replace batteries. |
| AC unit does not respond to specific functions. | Function not supported by AC unit. Remote control malfunction. | Refer to your air conditioner's manual to confirm supported functions. If other functions work, the remote may be faulty. |
Specifications
- Model Number: YT1F
- Brand: Tadiran
- Manufacturer: GREE
- Compatible Devices: Air Conditioner (Tadiran Spirit 10A, 15A, 17A, 20A, and other compatible GREE/Tadiran models)
- Power Source: 2 x AAA Batteries (not included)
- Item Weight: 3.53 ounces (approximately 100 grams)
- Color: Grey
- Special Feature: Ergonomic design
Warranty and Support
For warranty information or technical support, please refer to the documentation provided with your air conditioner unit or contact your authorized Tadiran/GREE dealer. This remote control is an original replacement part, and its warranty coverage may be tied to the original air conditioner unit or specific purchase terms.
For further assistance, you may also visit the official Tadiran or GREE websites.
