INLAND 2.5 SATA to HIGH-Speed USB 3.0 External Hard Drive Enclosure

1. Product Overview

The INLAND 2.5 SATA to HIGH-Speed USB 3.0 External Hard Drive Enclosure provides a convenient solution for converting a 2.5-inch SATA hard drive or solid-state drive (SSD) into a portable external storage device. Featuring USB 3.0 connectivity, it offers fast data transfer rates, making it ideal for backups, data recovery, or expanding storage capacity.

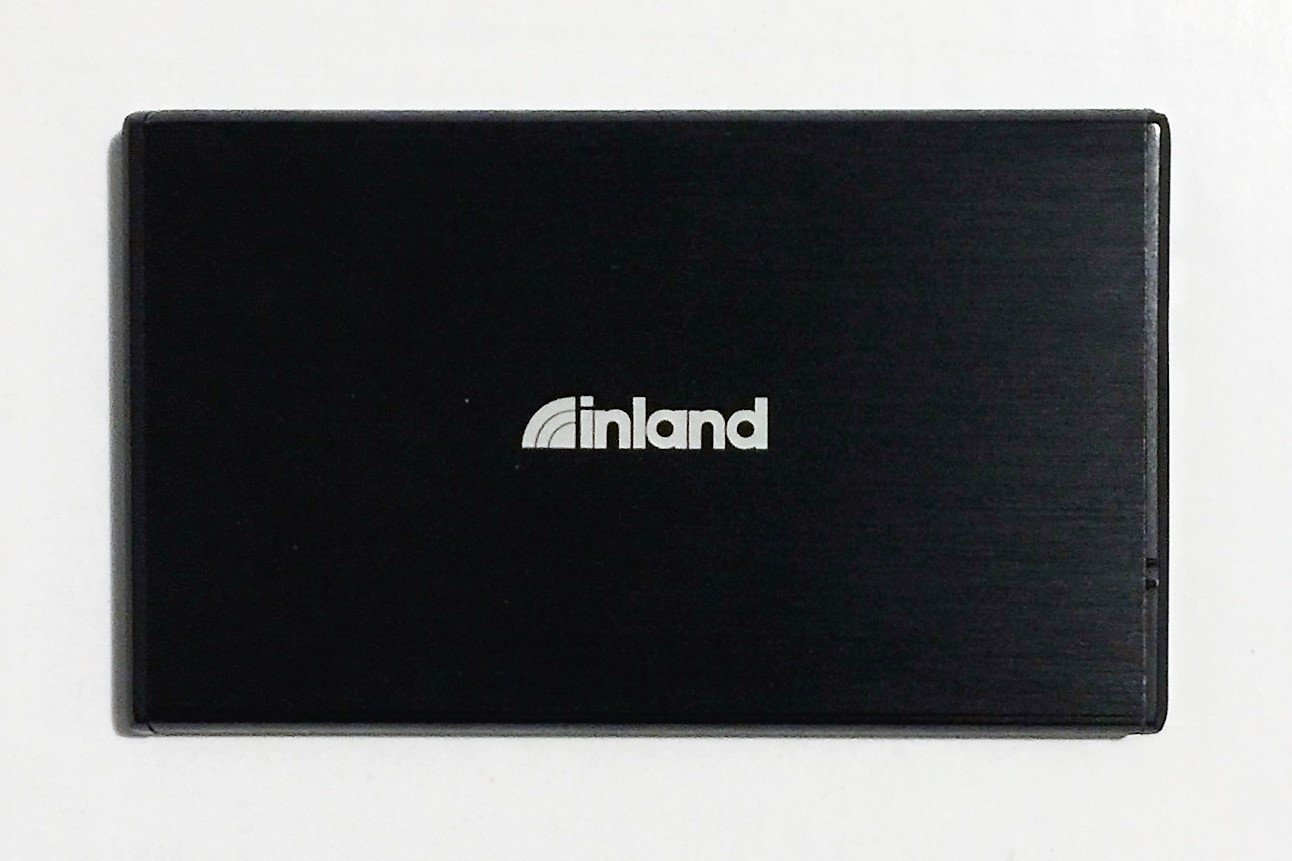

Figure 1: Front view of the INLAND 2.5 SATA to USB 3.0 External Hard Drive Enclosure.

2. Package Contents

Verify that all items are present in the package:

• INLAND 2.5 SATA to USB 3.0 External Hard Drive Enclosure
• USB 3.0 Type-A to Micro-B Cable
• User Manual (this document)

3. Setup and Installation

Follow these steps to install a 2.5-inch SATA hard drive or SSD into the enclosure:

1. Open the Enclosure: Gently slide open the enclosure cover. Some models may require pressing a release button or sliding a latch.
2. Connect the Drive: Align your 2.5-inch SATA hard drive or SSD with the SATA connector inside the enclosure. Gently push the drive firmly into the connector until it is securely seated. Ensure the drive is oriented correctly.
3. Close the Enclosure: Slide the enclosure cover back into place until it clicks or is securely closed.

4. Operating Instructions

After installing your drive, connect the enclosure to your computer:

1. Connect USB Cable: Connect the small end of the included USB 3.0 cable to the Micro-B port on the enclosure.
2. Connect to Computer: Connect the standard USB Type-A end of the cable to an available USB 3.0 port on your computer. For optimal performance, use a USB 3.0 port (typically blue). The enclosure is also backward compatible with USB 2.0 ports, but at reduced speeds.
3. Drive Recognition: Your operating system (Windows, macOS, Linux) should automatically detect and install the necessary drivers. The drive will appear as an external storage device.
4. Formatting (New Drives): If you are using a brand new hard drive or SSD, it may need to be initialized and formatted before use. Refer to your operating system's disk management tools for instructions.
5. Safe Removal: Always safely eject the drive from your operating system before disconnecting the USB cable to prevent data corruption.

5. Maintenance

• Keep the enclosure clean and free from dust. Use a soft, dry cloth for cleaning.
• Avoid exposing the enclosure to extreme temperatures, humidity, or direct sunlight.
• Do not drop or subject the enclosure to strong impacts, as this can damage the internal drive.
• Ensure proper ventilation when in use to prevent overheating, especially during prolonged data transfers.

6. Troubleshooting

Problem: The enclosure is not detected by the computer.

• Ensure the USB cable is securely connected to both the enclosure and the computer.
• Try a different USB port on your computer.
• Test with a different USB cable if available.
• Verify that the hard drive or SSD is properly seated inside the enclosure.
• If it's a new drive, check Disk Management (Windows) or Disk Utility (macOS) to see if it needs initialization and formatting.

Problem: Data transfer speeds are slow.

• Ensure you are connected to a USB 3.0 port on your computer. USB 2.0 ports will operate at slower speeds.
• Check the health of your internal hard drive/SSD.

Problem: Enclosure feels warm during operation.

• It is normal for the enclosure to generate some heat during operation, especially during heavy data transfers. Ensure adequate airflow around the device.
• If it becomes excessively hot, disconnect it and allow it to cool.

7. Specifications

8. Warranty and Support

INLAND products are designed for reliability and performance. For specific warranty information, please refer to the warranty card included with your product or visit the official INLAND website. For technical support or customer service, please contact your retailer or the INLAND support team.

Contact Information:

• Website: www.inlandus.com
• Email: support@inlandus.com
