Pwc Engine WSM 183-2508 Ignition Coil User Manual

1. Introduction

This manual provides essential information for the proper installation, function, and maintenance of your Pwc Engine WSM 183-2508 Ignition Coil. This ignition coil is designed as a direct replacement for Johnson Evinrude 225 Hp 1995 6 Cylinder engines and is compatible with most 1985-2006 2, 3, 4, and 6 cylinder carbureted 2-stroke engines, excluding 60-degree models and engines utilizing double coils. It replaces OEM part numbers 18-5179 and 582508. Please read this manual thoroughly before proceeding with installation or any service.

2. Safety Information

Always observe the following safety precautions when working with engine components and electrical systems:

• Disconnect Battery: Before performing any installation or maintenance, always disconnect the engine's battery to prevent accidental starting or electrical shock.
• Wear Protective Gear: Use appropriate personal protective equipment, including safety glasses and gloves.
• Engine Cooling: Ensure the engine is cool before working on it to avoid burns.
• Flammable Materials: Keep sparks, open flames, and other ignition sources away from fuel and other flammable materials.
• Professional Assistance: If you are unsure about any step, consult a qualified marine mechanic.

3. Package Contents

Verify that all items are present in the package:

• 1 x Pwc Engine WSM 183-2508 Ignition Coil
• 1 x Spark Plug Wire (pre-attached or included)

4. Setup and Installation

This section outlines the general procedure for replacing an ignition coil. Specific steps may vary slightly depending on your engine model. Refer to your engine's service manual for detailed instructions.

4.1 Pre-Installation Checks

• Ensure the engine is turned off and the battery is disconnected.
• Confirm the new ignition coil (WSM 183-2508) is the correct replacement for your engine by cross-referencing OEM part numbers (18-5179, 582508) and engine specifications.
• Gather necessary tools, which typically include wrenches, screwdrivers, and possibly a spark plug wrench.

4.2 Installation Procedure

1. Locate Old Coil: Identify the existing ignition coil(s) on your engine.
2. Disconnect Wires: Carefully disconnect the spark plug wire(s) and any electrical connectors attached to the old coil. Note their positions for correct re-connection.
3. Remove Old Coil: Unbolt or unclip the old ignition coil from its mounting bracket.
4. Install New Coil: Position the new Pwc Engine WSM 183-2508 Ignition Coil in the same location. Secure it with the original fasteners.
5. Connect Wires: Reconnect the electrical connectors and the spark plug wire(s) to the new coil. Ensure connections are secure and correctly routed.
6. Final Check: Double-check all connections and ensure no tools or debris are left in the engine compartment.
7. Reconnect Battery: Reconnect the engine battery.

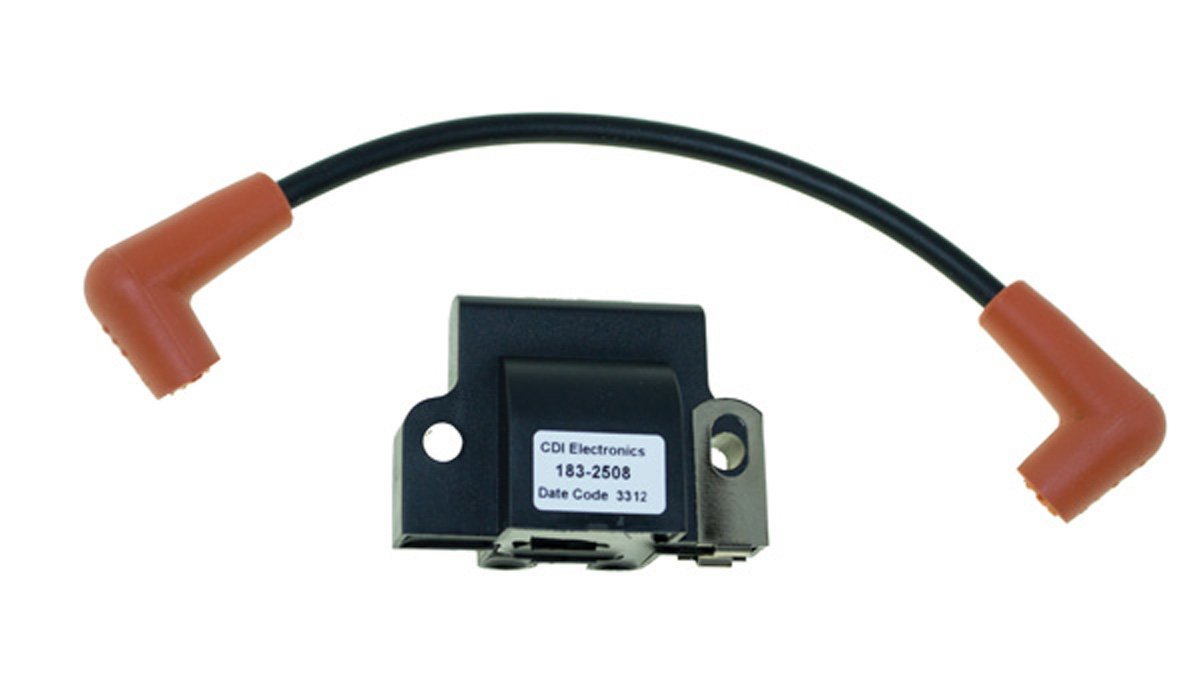

Figure 1: Pwc Engine WSM 183-2508 Ignition Coil. This image displays the ignition coil with its integrated spark plug wire, ready for installation.

5. Operation

The ignition coil is a critical component of your engine's ignition system. Its primary function is to transform the low voltage from the battery into the high voltage required to create a spark at the spark plug. This spark ignites the air-fuel mixture in the engine's cylinders, initiating combustion and powering the engine. Once installed, the coil operates automatically as part of the engine's electrical system.

6. Maintenance

Ignition coils are generally maintenance-free components. However, regular inspection of related parts can help ensure optimal performance and longevity:

• Inspect Spark Plug Wires: Periodically check spark plug wires for cracks, fraying, or signs of damage. Replace them if necessary.
• Check Connections: Ensure all electrical connections to the ignition coil are clean, tight, and free from corrosion.
• Spark Plug Condition: Regularly inspect and replace spark plugs according to your engine manufacturer's recommendations. Worn spark plugs can put additional strain on the ignition coil.
• Cleanliness: Keep the engine compartment clean and free of excessive dirt, oil, and moisture, which can affect electrical components.

7. Troubleshooting

If you experience issues after installing the new ignition coil, consider the following common troubleshooting steps:

• Engine Misfire or Rough Idle:
  • Verify all spark plug wires are correctly attached to the coil and spark plugs.
  • Check for loose or corroded electrical connections.
  • Inspect spark plugs for proper gap and condition.
• No Spark:
  • Ensure the battery is fully charged and properly connected.
  • Confirm all wiring to the coil is intact and not damaged.
  • Test for continuity in the coil's primary and secondary windings (requires specialized equipment and knowledge).
• Engine Not Starting:
  • Check for fuel delivery issues in addition to ignition problems.
  • Ensure the engine kill switch is in the "run" position.

If troubleshooting steps do not resolve the issue, it is recommended to seek assistance from a certified marine mechanic.

8. Specifications

9. Warranty Information

Pwc Engine ignition coils (stators) are warrantied against manufacturing defects for a period of 30 days from the date of purchase. For warranty claims, the item must be returned in its original packaging, complete, and in advance for a direct replacement only. This warranty does not cover refunds. Please contact Pwc Engine customer support for further details on warranty claims and return procedures.

10. Support

For technical assistance or inquiries regarding your Pwc Engine WSM 183-2508 Ignition Coil, please refer to the contact information provided by your retailer or visit the official Pwc Engine website.
