YITAMOTOR Towing Mirrors Instruction Manual

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your YITAMOTOR Towing Mirrors. These mirrors are designed to enhance visibility and safety when towing, offering power-adjusted glass, heating, manual folding, and manual telescoping features. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product.

Product Features

• Power Adjusted Glass: The main mirror glass can be adjusted electronically for optimal viewing angles.
• Heated Function: Integrated heating elements work with your vehicle's rear defrost system to clear moisture and ice, ensuring clear visibility in adverse weather conditions.
• Manual Folding: Mirrors can be manually folded inward to prevent damage in tight spaces or when parked.
• Manual Telescoping: Extendable arms allow the mirrors to be manually extended from 19 inches to 22 inches, providing a wider field of view for towing large trailers.
• Durable Construction: Features a robust design with a metal aluminum base for enhanced stability and longevity.
• Integrated Convex Lens: A lower convex mirror provides an expanded view, manually adjustable for blind spot reduction.

Figure 1: Key features of the YITAMOTOR Towing Mirror, highlighting the power-heated and adjustable plane mirror, and the manually adjustable convex lens.

Figure 2: The power heated function effectively removes moisture and snow for clear rear visibility.

Compatibility

These towing mirrors are compatible with the following vehicle models:

• Chevy Silverado GMC Sierra 2007 - 2013 (New Body Style only for 2007)
• Chevy Tahoe / Suburban / Avalanche 2007 - 2013
• GMC Yukon/Yukon XL/Yukon Denali 2007-2013
• Chevy Silverado 2500HD 3500HD 2014 (Heavy Duty Models Only)

Important Note:

• Not compatible with models equipped with power fold or memory functions.
• This mirror is designed to replace an original mirror with these exact options. If your vehicle does not have the listed options, the mirror may not function properly.

Package Contents

Upon opening the package, please verify that all components are present:

• One (1) Pair of YITAMOTOR Towing Mirrors (includes left and right side)
• Installation hardware (if applicable, typically pre-attached or included for specific mounting points)

Figure 3: A complete set of YITAMOTOR Towing Mirrors.

Setup and Installation

For detailed installation steps, please refer to the official Installation Manual PDF provided by YITAMOTOR. A general overview and key considerations are provided below.

Installation Manual (PDF): Download Here

General Installation Steps:

1. Preparation: Ensure your vehicle is turned off and the battery is disconnected before beginning installation.
2. Remove Old Mirrors: Carefully remove the existing side mirrors. This typically involves removing interior door panels to access mounting bolts and electrical connectors.
3. Connect Wiring: The YITAMOTOR Towing Mirrors feature a plug-and-play design. Connect the mirror's electrical harness to the vehicle's corresponding connector.
4. Mount New Mirrors: Align the new towing mirrors with the mounting holes on the vehicle's door. Secure them using the provided hardware.
5. Reassemble: Reattach the interior door panels and reconnect the vehicle's battery.
6. Test Functionality: Verify all mirror functions (power adjustment, heating, turn signals if applicable) are working correctly.

Figure 4: The plug-and-play connector simplifies the electrical installation process.

Operating Instructions

Power Adjusted Glass (Main Mirror):

Use your vehicle's existing mirror control switch to adjust the main mirror glass. This allows for precise positioning of the mirror's reflective surface.

Heated Function:

The heated mirror function activates automatically with your vehicle's rear defrost system. Ensure your vehicle's defrost is engaged to clear frost, ice, or fog from the mirror surface.

Manual Folding:

To fold the mirrors, gently push the mirror assembly towards the vehicle body until it locks into the folded position. This is useful for parking in narrow spaces or preventing damage.

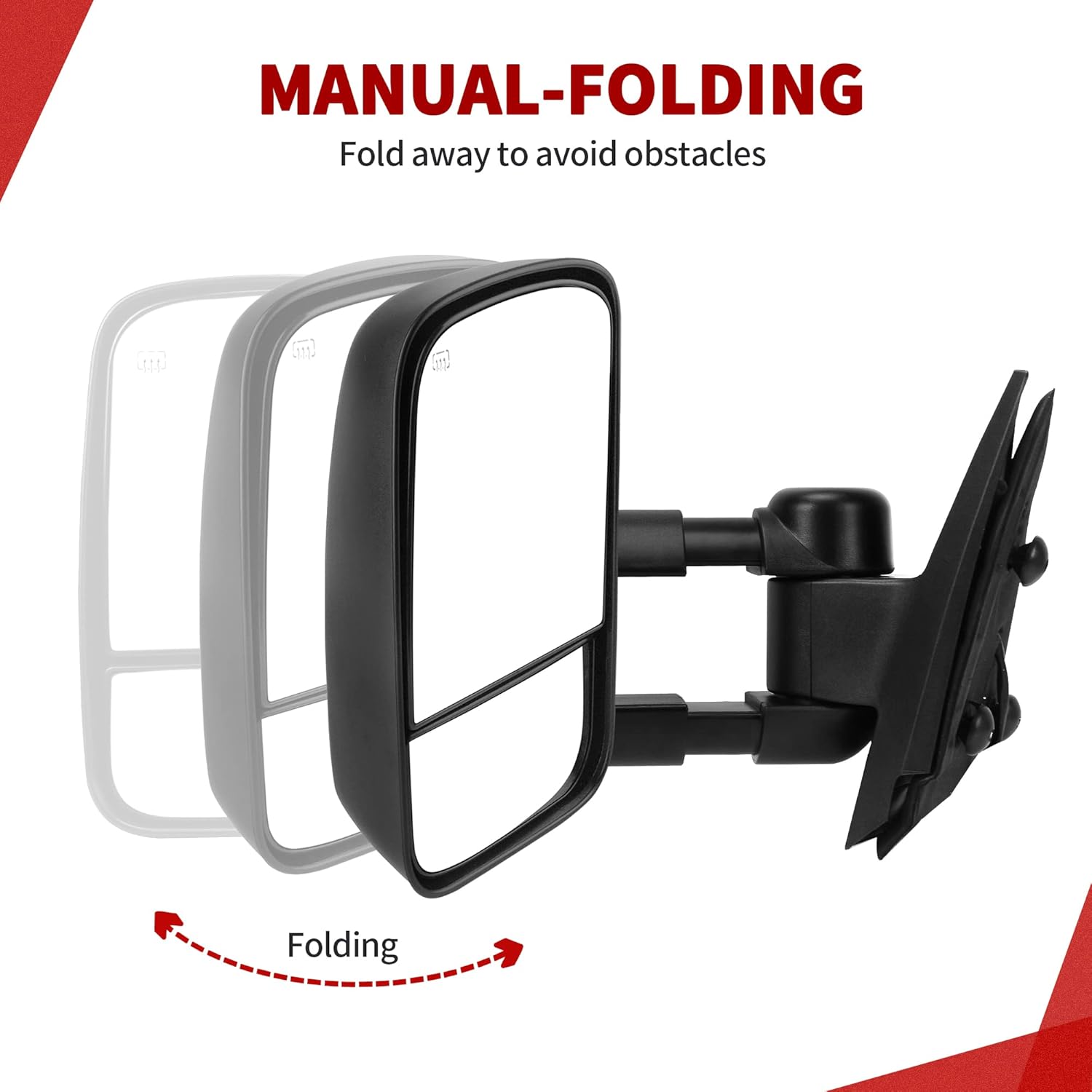

Figure 5: The manual folding feature allows the mirror to be folded away to avoid obstacles.

Manual Telescoping:

To extend the mirrors for towing, grasp the mirror housing and pull it outwards from the vehicle. The mirror will extend, providing an increased field of view. Push it back in when not needed.

Figure 6: Manually telescoping mirrors provide a significantly larger viewing area, crucial for safe towing.

Convex Lens Adjustment:

The lower convex mirror is manually adjustable. Gently push on the mirror glass itself to position it for optimal blind spot coverage.

Maintenance

• Cleaning: Clean the mirror glass and housing regularly with a mild automotive cleaner and a soft cloth. Avoid abrasive materials that could scratch the surface.
• Inspection: Periodically inspect the mirrors for any signs of damage, loose connections, or wear. Ensure the folding and telescoping mechanisms operate smoothly.
• Winter Care: In cold climates, ensure the heated function is working to prevent ice buildup. Avoid forcing the mirrors to fold or telescope if they are frozen.

Troubleshooting

• Mirror Not Adjusting:
  • Check electrical connections to ensure they are secure.
  • Verify that your vehicle's mirror adjustment fuse is intact.
  • Confirm compatibility; mirrors without power adjustment will not respond to the vehicle's controls.
• Heated Function Not Working:
  • Ensure your vehicle's rear defrost system is active.
  • Check the fuse for the heated mirror circuit.
  • Confirm compatibility; mirrors without heating elements will not have this function.
• Excessive Vibration:
  • Ensure all mounting bolts are securely tightened.
  • Check for any loose components within the mirror housing.
• Difficulty Folding/Telescoping:
  • Ensure there is no debris or obstruction in the mechanism.
  • Apply a silicone-based lubricant to moving parts if necessary, avoiding contact with electrical components.

Specifications

Figure 7: Product dimensions for installation planning.

Warranty and Support

YITAMOTOR stands behind the quality of its products. For specific warranty information, please refer to the documentation included with your purchase or visit the official YITAMOTOR brand store.

For further assistance, technical support, or to inquire about replacement parts, please contact YITAMOTOR customer service through their official channels.

YITAMOTOR Brand Store: Visit Store
