1. Product Overview
The Install Proz Double Ply Window Film is a high-quality, non-fading film designed for automotive use. This film is manufactured with a stable dye that resists bubbling, peeling, cracking, and discoloration. Its double-ply construction ensures durability and ease of application, even on curved glass surfaces. This specific product is a 36" x 100' roll with a 35% tint level, offering a balance of privacy and visibility.
Key Features:
- Double Ply Film (2 Ply) for enhanced durability.
- Non-fading charcoal color.
- Resistant to bubbling, peeling, cracking, and turning purple.
- Substrate designed for easy application.
- Shrinks well to fit curved glass.
- Provides 99.8% UV Rejection.
Image 1.1: A roll of Install Proz Double Ply Window Film, illustrating the product in its packaged form.
2. Safety Information
Important: Use of this product must comply with all state and local vehicle tinting laws. Illegal film installation will void the manufacturer's warranty. Always consult local regulations before applying window film to a vehicle.
When handling the film, use caution with sharp tools like utility knives or razor blades to prevent injury. Ensure adequate ventilation if using cleaning solutions or application fluids.
3. Preparation
Proper preparation is crucial for a successful window film installation. Ensure you have a clean, dust-free environment and the necessary tools before beginning.
Required Tools:
- Utility knife or razor blade
- Squeegee (hard card and soft rubber)
- Spray bottle with application solution (water and a few drops of baby shampoo, or commercial tint solution)
- Clean lint-free towels
- Measuring tape and straight edge
- Heat gun (optional, for shrinking film on curved surfaces)
Surface Cleaning:
- Thoroughly clean the window surface, including edges and corners, using a glass cleaner and a razor blade to scrape off any stubborn debris, paint, or stickers.
- Spray the window generously with the application solution.
- Squeegee the window from top to bottom, overlapping each stroke, to remove all cleaning solution and debris. Repeat this process several times to ensure the glass is spotless.
- Wipe down surrounding areas to prevent dust from contaminating the clean window.
4. Installation Guide
Follow these steps carefully for optimal installation results. Working in a clean, well-lit area is recommended.
- Measure and Cut: Measure the window dimensions accurately. Unroll the film and cut a piece slightly larger than the window (approximately 1-2 inches extra on all sides) to allow for trimming.
- Pre-Shrinking (for curved glass): For highly curved automotive windows, it may be necessary to pre-shrink the film. Place the cut film (liner side up) on the exterior of the clean, wet window. Use a heat gun and a hard card squeegee to gently shrink the film to the window's curvature, working from the center outwards.
- Remove Liner: Lay the film on a clean, flat surface. Spray the adhesive side of the film generously with the application solution as you slowly peel off the clear protective liner. This prevents the adhesive from sticking to itself and keeps it lubricated.
- Apply Film: Generously spray the interior of the clean window with the application solution. Carefully lift the film by its corners, keeping the adhesive side wet, and position it onto the wet window. The solution allows you to slide and adjust the film into the correct position.
- Squeegee Out Solution: Once the film is positioned, spray the exterior surface of the film with application solution to lubricate it. Using a squeegee, start from the center and work outwards, applying firm, even pressure to push out all water and air bubbles. Overlap each stroke.
- Trim Edges: Using a sharp utility knife and a straight edge, carefully trim the excess film around the edges of the window, leaving a small gap (approximately 1/16 inch) from the window frame to allow for expansion and contraction.
- Final Squeegee: Perform a final squeegee pass to ensure all remaining water and bubbles are removed. Use a clean towel to wipe away any excess solution.

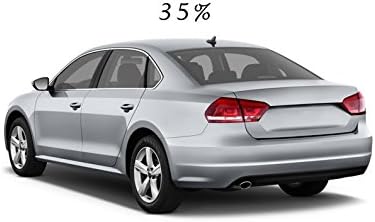

Image 4.1: An example of a vehicle with 35% window tint applied, demonstrating the visual effect of the film.
5. Operating and Usage
Once installed, the Install Proz Double Ply Window Film provides several benefits:
- Heat Reduction: Helps to reduce heat buildup inside the vehicle or room, contributing to a cooler interior.
- UV Protection: Blocks 99.8% of harmful UV rays, protecting occupants from sun exposure and preventing interior fading.
- Glare Reduction: Reduces harsh glare from sunlight, improving driving comfort and visibility.
- Privacy: The 35% tint offers increased privacy while maintaining good outward visibility.
- Shatter Resistance: In the event of glass breakage, the film can help hold shattered glass together, reducing the risk of injury.
Allow the film to cure for at least 3-5 days before rolling down windows or cleaning the film. The curing time may vary depending on temperature and humidity.
6. Maintenance
To ensure the longevity and appearance of your Install Proz window film, follow these maintenance guidelines:
- Cleaning: After the curing period (3-5 days), clean the film using a soft cloth or sponge and a mild, ammonia-free glass cleaner. Avoid abrasive cleaners or brushes that could scratch the film.
- Avoid Sharp Objects: Do not use sharp objects or tools on the film surface, as this can cause scratches or damage.
- Regular Inspection: Periodically inspect the film for any signs of peeling or damage. Address minor issues promptly to prevent further deterioration.
7. Troubleshooting
Here are some common issues and their potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Bubbles or Blisters: | Trapped water or air during installation. | Small water bubbles will typically evaporate during the curing process. For larger air bubbles, gently push them towards the nearest edge with a squeegee. If persistent, a small pinprick can release air, then re-squeegee. |
| Film Peeling: | Insufficient adhesion, improper cleaning, or premature window operation. | Ensure windows are not rolled down during the curing period. Re-clean and reapply if peeling is significant. Ensure edges are properly sealed during installation. |
| Hazy Appearance: | Residual moisture between the film and glass. | This is normal during the curing process and should disappear as the film dries. Ensure adequate drying time. |
| Scratches: | Contact with sharp objects or abrasive cleaning. | Avoid using sharp objects on the film. Clean with soft cloths and ammonia-free cleaners. Deep scratches may require film replacement. |
8. Specifications
| Attribute | Detail |
|---|---|
| Brand | Install Proz |
| Model Number | 0635131270550 |
| Material | Window Film |
| Color / Tint Level | 35% Tint (Charcoal) |
| Size | 36" x 100' (36"L x 1200"W) |
| Unit Count | 300 Square Feet |
| Installation Type | Peel and Stick |
| UV Rejection | 99.8% |
| Film Ply | Double Ply (2 Ply) |
| Item Weight | 8.78 pounds |
| UPC | 635131270536 |
9. Warranty Information
The Install Proz Double Ply Window Film is backed by a limited lifetime guarantee. This warranty covers against manufacturing defects such as fading, peeling, cracking, adhesive failure, and delamination under normal use conditions.
Please note that the warranty is void if the film installation does not comply with all state and local vehicle tinting laws. For specific warranty claims or details, please contact Install Proz directly.
10. Support
For additional support, product information, or to explore other Install Proz products, please visit the official Install Proz Store:
Visit the Install Proz Store on Amazon
You may also refer to the product listing on Amazon for frequently asked questions and customer reviews.
