1. Product Overview
The ZLINE 36 inch Remote Blower Island Range Hood is designed to provide powerful ventilation for your kitchen. Featuring a T95 dual motor blower, this unit is installed remotely to significantly reduce operational noise while delivering 1200 CFM of airflow. The exterior is constructed from brushed stainless steel and includes modern features such as dishwasher-safe baffle filters, a 4-speed fan control, a 3-minute autotimer with delayed shutoff, and LED lighting.
Front view of the ZLINE 36 inch Island Mount Range Hood in stainless steel.
Key Features:
- Remote Dual Blower: T95 dual motor system installed remotely for reduced noise and powerful 1200 CFM ventilation.
- Brushed Stainless Steel: Durable 430 stainless steel construction with a brushed finish.
- Baffle Filters: Removable and dishwasher-safe stainless steel baffle filters for easy cleaning.
- Push Button Control Panel: Intuitive controls for 4-speed fan operation, lighting, and a 3-minute autotimer with delayed shutoff.
- LED Lighting: Integrated LED lights provide illumination for your cooking surface.
2. Safety Information
Please read all instructions carefully before installation and operation to prevent injury or damage. Retain this manual for future reference.
- Always disconnect power to the range hood before servicing or cleaning.
- Installation must be performed by a qualified technician in accordance with all local codes and standards.
- Ensure proper grounding of the electrical system.
- Do not operate the range hood with damaged wiring or if the unit is malfunctioning.
- Maintain a minimum distance of 30 to 36 inches between the cooking surface and the bottom of the range hood.
- Clean grease filters regularly to prevent grease fires.
- Never use flammable solvents or alcohol to clean the range hood.
3. What's in the Box
Verify that all components are present before beginning installation.
- ZLINE Island Mount Range Hood Unit
- Remote Dual Blower (T95)
- Installation Guide and Kit
- Stainless Steel Baffle Filters
- Chimney Sections
- Connecting Extension Cord (26 ft.)

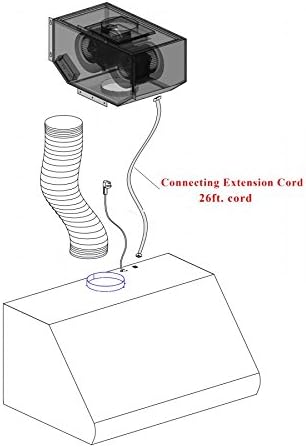

Illustration of the main components: the range hood, the remote blower, and the connecting extension cord.
4. Installation & Setup
This ZLINE Island Mount Range Hood requires professional installation due to its remote blower system and electrical requirements. Refer to the included Installation Guide for detailed instructions and diagrams specific to your model.
Key Installation Considerations:
- Mounting Type: Designed for island mounting, requiring secure ceiling support.
- Remote Blower Placement: The T95 dual motor blower is intended for remote installation in the interior of your home (e.g., attic, crawl space) to minimize noise in the kitchen.
- Ducting: Requires ducted/vented installation. Ensure proper duct sizing and routing for optimal performance. Avoid restrictive bends and long duct runs.
- Electrical: The unit operates on 120 Volts. A dedicated circuit may be required. All electrical connections must comply with local codes.
- Dimensions: Carefully review the product and blower dimensions to ensure proper fit and clearance.
Dimensional drawing of the range hood and the remote blower unit.

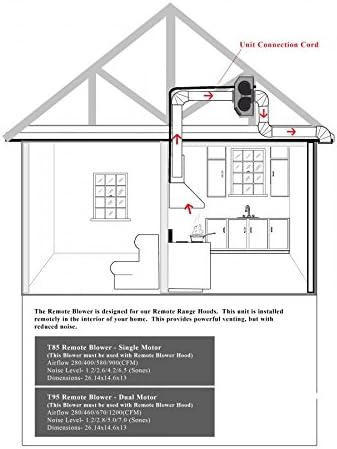

Schematic illustrating the remote dual motor blower installation, showing ducting from the hood to the blower and out through the roof.
5. Operation
The range hood is controlled via a push-button panel located on the front of the unit.
Control Panel Functions:
- Power Button: Turns the range hood on or off.
- Fan Speed Buttons (1-4): Adjusts the blower speed from low (1) to high (4) to suit your ventilation needs.
- Light Button: Toggles the LED lights on or off.
- Timer Button: Activates the 3-minute autotimer with delayed shutoff. Pressing this button will run the fan for 3 minutes before automatically turning off.
The range hood installed above an island cooktop, showing the control panel.
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your range hood.
Cleaning the Baffle Filters:
- Turn off the range hood and disconnect power.
- Remove the stainless steel baffle filters by sliding them out of their slots.
- Clean the filters in a dishwasher or by hand using hot water and a non-abrasive detergent.
- Ensure filters are completely dry before reinstalling.
- Reinstall the filters securely into their slots.
Cleaning the Exterior:
- Wipe the brushed stainless steel surfaces with a soft cloth and a mild, non-abrasive stainless steel cleaner.
- Always wipe in the direction of the grain to avoid scratching.
- Do not use abrasive pads, steel wool, or harsh chemicals.
LED Light Replacement:
Contact ZLINE customer support for guidance on replacing LED lights, as specific procedures may apply.
7. Troubleshooting
Before contacting service, review the following common issues and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Range hood does not turn on. | No power supply; tripped circuit breaker; loose wiring. | Check power connection; reset circuit breaker; verify wiring connections (by qualified technician). |
| Insufficient suction. | Clogged filters; improper ducting; external air pressure. | Clean or replace filters; inspect ductwork for obstructions or leaks; ensure proper make-up air. |
| Lights not working. | Faulty LED bulb; loose connection. | Check bulb connection; replace bulb if necessary (contact support for specific LED replacement). |
| Excessive noise. | Loose components; foreign object in blower; improper installation. | Inspect for loose parts; remove any obstructions; ensure secure mounting and ducting. |
8. Specifications
| Model Number | 697i-RD-36 |
| Air Flow Capacity | 1200 Cubic Feet Per Minute (CFM) |
| Material | Alloy Steel (Brushed 430 Stainless Steel) |
| Mounting Type | Island Mount |
| Controls Type | Push Button (4-Speed Fan, Lights, 3-Minute AutoTimer) |
| Voltage | 120 Volts |
| Number of Speeds | 4 |
| Item Weight | 87 Pounds |
| Light Source Type | LED |
| Filter Type | Baffle (Dishwasher-safe) |
| Ventilation Type | Ducted/Vented |
| Product Dimensions (W x D x H) | 36 x 27.5 x 12.5 inches |
| Installation Type | Free Standing (Island) |
9. Warranty Information
This ZLINE range hood typically comes with a 3-Year Parts Warranty. For specific terms and conditions, please refer to the warranty card included with your product or contact ZLINE customer service directly. Keep your proof of purchase for warranty claims.
10. Customer Support
If you have any questions, require technical assistance, or need to order replacement parts, please contact ZLINE customer support. Have your model number (697i-RD-36) and purchase date ready when you call.
For the most up-to-date contact information, please visit the official ZLINE Kitchen and Bath website or refer to your product documentation.
