Toyota 89070-42D30 Door Control Transmitter Assembly User Manual

Introduction

This manual provides essential information for the proper use and maintenance of your Toyota 89070-42D30 Door Control Transmitter Assembly. This is a genuine Original Equipment Manufacturer (OEM) part designed to integrate seamlessly with your vehicle's keyless entry system. Please read these instructions carefully to ensure optimal performance and longevity of your transmitter.

Product Overview

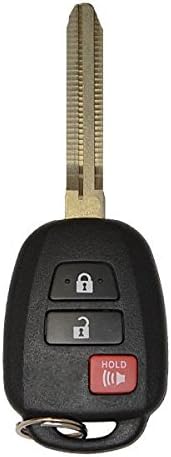

Figure 1: Front view of the Toyota 89070-42D30 Door Control Transmitter Assembly. It features a black plastic casing with three buttons: a lock button (closed padlock icon), an unlock button (open padlock icon), and a red 'HOLD' button with a speaker icon for the panic alarm. A metal key blade extends from the top, and a metal key ring is attached at the bottom.

The Toyota 89070-42D30 is a combined key and remote control unit for your vehicle's door locking and alarm system. It features dedicated buttons for locking and unlocking doors, and a panic alarm function.

Setup and Programming

The Toyota 89070-42D30 Door Control Transmitter Assembly requires programming to your specific vehicle. As an OEM part, this process typically involves specialized equipment and procedures.

• Professional Programming Recommended: For proper functionality and to avoid potential issues, it is highly recommended that this transmitter be programmed by an authorized Toyota dealership or a certified automotive locksmith.
• Key Cutting: The integrated key blade will also need to be cut to match your vehicle's ignition and door locks. This service is typically performed by the same professionals who handle the programming.
• No User-Programmable Steps: This specific OEM part does not typically support end-user programming without specialized tools. Attempting to program it yourself without the correct procedure may result in the transmitter not functioning correctly.

Operating Instructions

Once programmed, your door control transmitter provides convenient access to your vehicle's locking system.

• Lock Button (Closed Padlock Icon): Press this button once to lock all vehicle doors. The vehicle's turn signals may flash, and a horn chirp may sound (depending on vehicle settings) to confirm locking.
• Unlock Button (Open Padlock Icon): Press this button once to unlock the driver's door. Press it twice within a few seconds to unlock all vehicle doors. The vehicle's turn signals may flash to confirm unlocking.
• Panic Alarm Button (Red 'HOLD' with Speaker Icon): Press and hold this button for approximately 1-2 seconds to activate the vehicle's panic alarm. The horn will sound, and the lights will flash. To deactivate the alarm, press any button on the transmitter or insert the key into the ignition.

Maintenance

To ensure the longevity and reliable operation of your transmitter, follow these maintenance guidelines:

• Battery Replacement: The transmitter is powered by a small coin-cell battery (e.g., CR2032, specific type may vary; refer to your vehicle's owner's manual for exact battery type). If the remote's range decreases or it becomes unresponsive, the battery may need replacement.
  1. Carefully separate the two halves of the transmitter casing using a small flat-head screwdriver or a specialized tool.
  2. Note the orientation of the old battery before removing it.
  3. Insert the new battery with the positive (+) side facing up (or as indicated by the original battery's orientation).
  4. Carefully snap the two halves of the casing back together.
• Avoid Water and Extreme Temperatures: Do not expose the transmitter to water, excessive moisture, or extreme temperatures, as this can damage internal components.
• Cleanliness: Keep the transmitter clean and free from dirt or debris. Use a soft, dry cloth for cleaning.
• Avoid Drops: Protect the transmitter from impacts or drops, which can cause internal damage.

Troubleshooting

If you experience issues with your door control transmitter, consider the following:

• Transmitter Not Responding:
  • Check the battery. Replace it if it's old or if the remote has been unresponsive for a while.
  • Ensure you are within range of the vehicle.
  • Verify there are no strong radio interference sources nearby.
  • If the issue persists after battery replacement, the transmitter may need to be reprogrammed by a professional.
• Reduced Range: This is often an indication of a low battery. Replace the battery.
• Physical Damage: If the transmitter has been dropped or exposed to water, internal damage may have occurred. In such cases, replacement and professional programming may be necessary.

Specifications

Warranty and Support

As a Genuine OEM Factory Original part, the Toyota 89070-42D30 Door Control Transmitter Assembly is typically covered by Toyota's standard parts warranty against poor workmanship and material defects. The specific terms and duration of the warranty may vary. Please retain your purchase receipt.

For warranty claims, technical support, or further assistance, please contact an authorized Toyota dealership or refer to your vehicle's owner's manual for contact information.
