Human Touch Reflex4 Foot & Calf Shiatsu Massager Instruction Manual

Introduction

The Human Touch Reflex4 Foot & Calf Shiatsu Massager is designed to provide targeted relief and improve circulation in the feet and calves. This manual contains important information regarding the setup, operation, maintenance, and safety of your massager. Please read it thoroughly before use.

Safety Information

For your safety, please observe the following precautions:

• Do not use the massager while operating a vehicle.
• Always unplug the massager when not in use.
• Do not use if you have a blood clotting disorder, deep vein thrombosis, or are pregnant.
• Consult a physician before use if you have any medical conditions.
• Keep the massager dry and do not submerge it in water.

Setup

Before using your Human Touch Reflex4 massager, ensure it is placed on a stable, flat surface. Connect the power cord to a suitable electrical outlet.

Image: The Human Touch Reflex4 massager in use, showing proper leg placement for foot and calf massage.

Adjustable Tilt Base

The massager features an adjustable tilt base to help you find the most comfortable angle for your massage. Locate the metal bar underneath the unit and adjust it to one of the two available positions.

Image: Close-up of the adjustable tilt base mechanism on the underside of the massager.

This allows for optimal positioning to target different areas of your feet and calves.

Operating Instructions

The Human Touch Reflex4 massager utilizes patented Figure-Eight technology to circulate blood from the feet towards the core of the body, promoting improved circulation and muscle rejuvenation.

Control Panel

The massager is equipped with an intuitive control panel located on the top of the unit. It offers two automated programs and Shiatsu massage techniques.

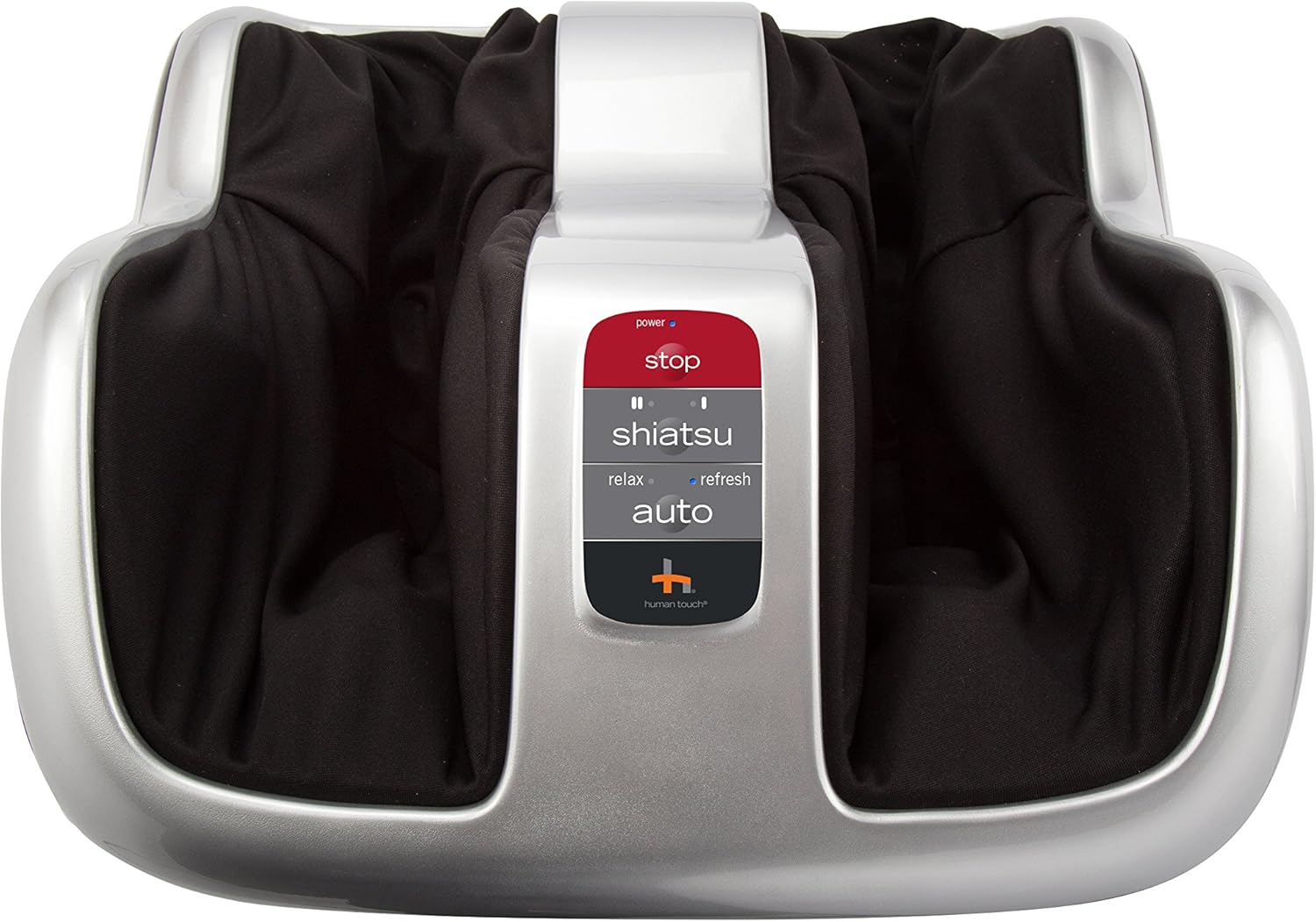

Image: Close-up of the control panel, showing the 'Power/Stop', 'Shiatsu', 'Relax', 'Refresh', and 'Auto' buttons.

Using the Massager

1. Sit comfortably and place your feet and calves into the designated wells of the massager.
2. Press the 'Power' button to turn on the unit.
3. Select your desired massage program:
   • Shiatsu: Provides a deep, kneading massage.
   • Relax: A gentle, soothing massage.
   • Refresh: An invigorating massage.
   • Auto: Cycles through various massage techniques.
4. Adjust the intensity as needed. The massager offers two intensity settings.
5. The massager will automatically turn off after a set period. To stop manually, press the 'Stop' button.

Tips for Best Wellness Experience

• "It feels too tight." If wearing socks or pants, try bare legs and feet to lessen intensity. Initial soreness may occur as muscles adjust.
• "It pinches my toes." Adjust your feet in or out of the unit to find a comfortable position.
• "I'm not receiving a massage in the back of my calves." The machine primarily massages calves from the sides. For a back-of-calf massage, try placing your calves in the top of the unit and resting your feet over the front.
• "I don't feel the massage in the front or on the top of my feet." Ensure your feet are placed all the way forward in the machine.
• "I wish the massage felt tighter." Try wearing a pair of athletic socks to increase the massage sensation.
• "The unit seems to stop and hesitate during use." The "hold and release" movement is a deliberate technique in some automatic programs to improve circulation and momentarily apply firm pressure to soothe tired muscles.

Official Product Video

Maintenance

Regular maintenance ensures the longevity and hygiene of your massager.

Cleaning the Sleeve Inserts

The Human Touch Reflex4 features removable sleeve inserts for easy cleaning. Simply unzip the inserts and wash them as needed to maintain hygiene.

Image: The removable sleeve inserts, highlighting the ease of cleaning for hygiene.

Ensure the inserts are completely dry before reinserting them into the massager.

Troubleshooting

If you encounter any issues with your massager, please refer to the following common solutions:

• Unit does not power on: Ensure the power cord is securely plugged into both the massager and a working electrical outlet.
• Unusual noises during operation: Check for any obstructions in the foot or calf wells. If the noise persists, discontinue use and contact customer support.
• Massage feels too intense or too weak: Adjust your foot and calf position within the wells. Experiment with wearing socks for a tighter sensation or using bare skin for less intensity.
• Unit stops unexpectedly: The massager has an automatic shut-off feature. If it stops before the cycle is complete, ensure it has not overheated. Allow it to cool down before restarting.

Specifications

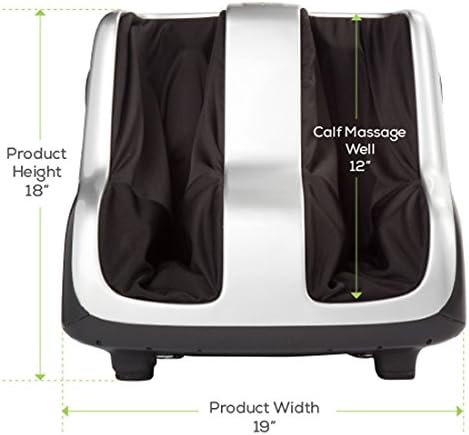

Image: Product dimensions for the Human Touch Reflex4 massager.

Warranty and Support

The Human Touch Reflex4 Foot & Calf Shiatsu Massager comes with a 1-year manufacturer's warranty.

For product support, warranty claims, or additional information, please visit the official Human Touch Store or contact their customer service directly.

Official Human Touch Store: Human Touch Store on Amazon
