UNDERTRIMMER AUTOMATIC ROTARY HOOK YZH-7.94BTR User Manual

Model: YZH-7.94BTR | Brand: Generic

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of the Generic UNDERTRIMMER AUTOMATIC ROTARY HOOK, model YZH-7.94BTR. This component is designed for specific industrial sewing machines to facilitate automatic thread trimming and ensure efficient stitching. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the part.

2. Safety Instructions

  • Always disconnect power to the sewing machine before installing, removing, or performing any maintenance on the rotary hook.
  • Wear appropriate personal protective equipment (PPE), such as safety glasses, during installation and maintenance.
  • Handle the rotary hook with care. It contains precision components that can be damaged by dropping or improper handling.
  • Ensure all screws and fasteners are securely tightened after installation to prevent vibration and potential damage during operation.
  • Keep fingers and loose clothing away from moving parts during machine operation.
  • If you are unsure about any installation or maintenance step, consult a qualified sewing machine technician.

3. Package Contents

Please verify that all items are present and undamaged upon opening the package.

  • 1 x Generic UNDERTRIMMER AUTOMATIC ROTARY HOOK (Model YZH-7.94BTR)
Generic UNDERTRIMMER AUTOMATIC ROTARY HOOK YZH-7.94BTR

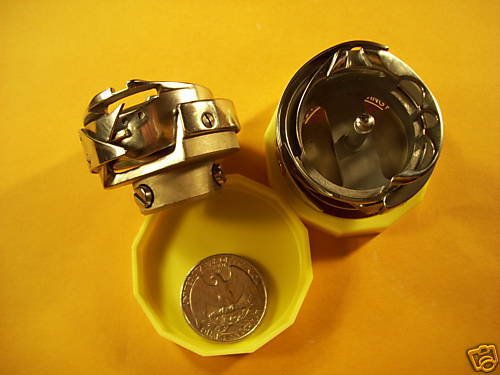

Figure 1: The Generic UNDERTRIMMER AUTOMATIC ROTARY HOOK YZH-7.94BTR. This image shows the complete rotary hook assembly, including the bobbin case area and the undertrimmer mechanism.

4. Setup and Installation

This section outlines the general procedure for installing the rotary hook. Specific steps may vary slightly depending on your sewing machine model. Refer to your sewing machine's service manual for detailed instructions if necessary.

  1. Power Disconnection: Ensure the sewing machine is turned off and unplugged from the power source.
  2. Access the Hook Area: Open the machine's access panels or remove the needle plate and feed dog assembly to expose the rotary hook area.
  3. Remove Old Hook (if applicable): Carefully unfasten any screws holding the existing rotary hook in place. Note the orientation and position of the old hook and any associated parts (e.g., bobbin case holder, thread guides).
  4. Clean the Area: Thoroughly clean any lint, dust, or old oil from the hook housing and surrounding mechanisms.
  5. Install New Hook: Position the new YZH-7.94BTR rotary hook into the housing. Ensure it seats correctly and aligns with the drive shaft.
  6. Secure the Hook: Fasten the rotary hook using the appropriate screws. Do not overtighten.
  7. Adjust Timing (Crucial): The timing between the needle and the rotary hook is critical for proper stitch formation and undertrimmer function. This step often requires specialized tools and expertise. If you are not experienced, it is highly recommended to have a qualified technician perform this adjustment. Incorrect timing can lead to skipped stitches, thread breakage, or machine damage.
  8. Reassemble: Reinstall the needle plate, feed dog, and any other removed components.
  9. Test: Plug in the machine and perform a manual test run at a slow speed to observe the hook's movement and initial stitch formation before full operation.

5. Operating Instructions

Once correctly installed and timed, the UNDERTRIMMER AUTOMATIC ROTARY HOOK YZH-7.94BTR operates in conjunction with your sewing machine's existing controls.

  • Bobbin Insertion: Insert the bobbin into the bobbin case as per your machine's instructions. Ensure the thread is correctly routed through the tension spring.
  • Thread Path: Confirm the upper thread is correctly threaded through the needle and tension discs.
  • Automatic Trimming: The undertrimmer function will engage automatically at the end of a sewing cycle or when activated by the machine's foot pedal or control panel, depending on your machine's configuration. This mechanism cuts both the needle and bobbin threads close to the fabric.
  • Observe Stitch Quality: Regularly check the quality of your stitches. Consistent, balanced stitches indicate proper hook function and timing.

6. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your rotary hook.

  • Cleaning:
    • Daily: Use a small brush or compressed air to remove lint and thread scraps from the bobbin case area and around the rotary hook.
    • Weekly/Bi-weekly: Remove the needle plate and feed dog to access and thoroughly clean the entire hook assembly.
  • Lubrication:
    • Apply a few drops of high-quality sewing machine oil to the designated oiling points on the rotary hook, typically where metal parts rub together. Refer to your sewing machine's manual for specific oiling instructions and frequency.
    • Avoid over-oiling, as this can attract more lint and cause staining on fabric.
  • Inspection: Periodically inspect the hook for any signs of wear, nicks, or burrs, especially on the hook point. Damaged hooks can cause thread breakage and poor stitch quality. Replace if significant wear is observed.

7. Troubleshooting

This section addresses common issues related to the rotary hook. For more complex problems, consult a professional technician.

Problem Possible Cause Solution
Skipped Stitches Incorrect hook timing, dull needle, bent needle, improper threading, lint buildup. Check needle (replace if dull/bent). Re-thread machine. Clean hook area. Adjust hook timing (professional recommended).
Thread Breakage Burrs or nicks on hook, incorrect tension, poor quality thread, incorrect hook timing, lint buildup. Inspect hook for damage (replace if necessary). Adjust thread tension. Use quality thread. Clean hook area.
Poor Stitch Quality (loose/tight) Incorrect tension settings (upper/bobbin), improper bobbin winding, lint in bobbin case. Adjust upper and bobbin tensions. Re-wind bobbin. Clean bobbin case.
Undertrimmer Not Functioning Lint obstruction, dull trimmer blade, mechanical issue with trimmer mechanism, electrical fault. Clean trimmer area. Inspect trimmer blade (replace if dull). Consult technician for mechanical/electrical issues.

8. Specifications

  • Model Number: YZH-7.94BTR
  • ASIN: B01EIQL8DY
  • Type: Automatic Rotary Hook with Undertrimmer
  • Compatibility: Designed for specific industrial sewing machines (Please verify compatibility with your machine's service manual)
  • Date First Available: July 25, 2017

9. Warranty and Support

As this product is a replacement part, warranty coverage typically falls under the policies of the original seller or manufacturer. Please retain your proof of purchase for any warranty claims.

For technical support or further assistance with installation and troubleshooting, it is recommended to contact the seller directly or consult a certified sewing machine technician.
