MANN-FILTER C 13 009 Air Filter Instruction Manual

Product Overview

The MANN-FILTER C 13 009 is an original equipment quality air filter designed for commercial vehicles. Its primary function is to protect the engine by preventing harmful particles such as dust, pollen, sand, soot, or even water droplets from entering the intake manifold. A clean air filter ensures optimal air-fuel mixture, consistent engine performance, and reduced fuel consumption.

Image: Front view of the MANN-FILTER C 13 009 air filter, showcasing its pleated filtration media and robust construction.

Setup and Installation

Proper installation of the air filter is crucial for its effective operation and the longevity of your vehicle's engine. Always refer to your vehicle's specific service manual for detailed instructions and safety precautions before proceeding with installation.

1. Safety First: Ensure the vehicle's engine is turned off and cool. Disconnect the battery if required by your vehicle's manual.
2. Locate the Air Filter Housing: The air filter is typically located in a plastic housing near the engine's air intake.
3. Open the Housing: Unclip or unscrew the fasteners securing the air filter housing cover. Carefully remove the cover.
4. Remove Old Filter: Take out the old air filter. Note its orientation to ensure the new filter is installed correctly.
5. Clean Housing: Inspect the air filter housing for any debris, leaves, or dirt. Clean it thoroughly before installing the new filter.
6. Install New Filter: Insert the MANN-FILTER C 13 009 into the housing, ensuring it fits snugly and is oriented correctly. Do not force the filter into place.
7. Secure Housing: Replace the housing cover and secure all clips or screws. Ensure a tight seal to prevent unfiltered air from entering the engine.
8. Reconnect Battery: If disconnected, reconnect the vehicle's battery.

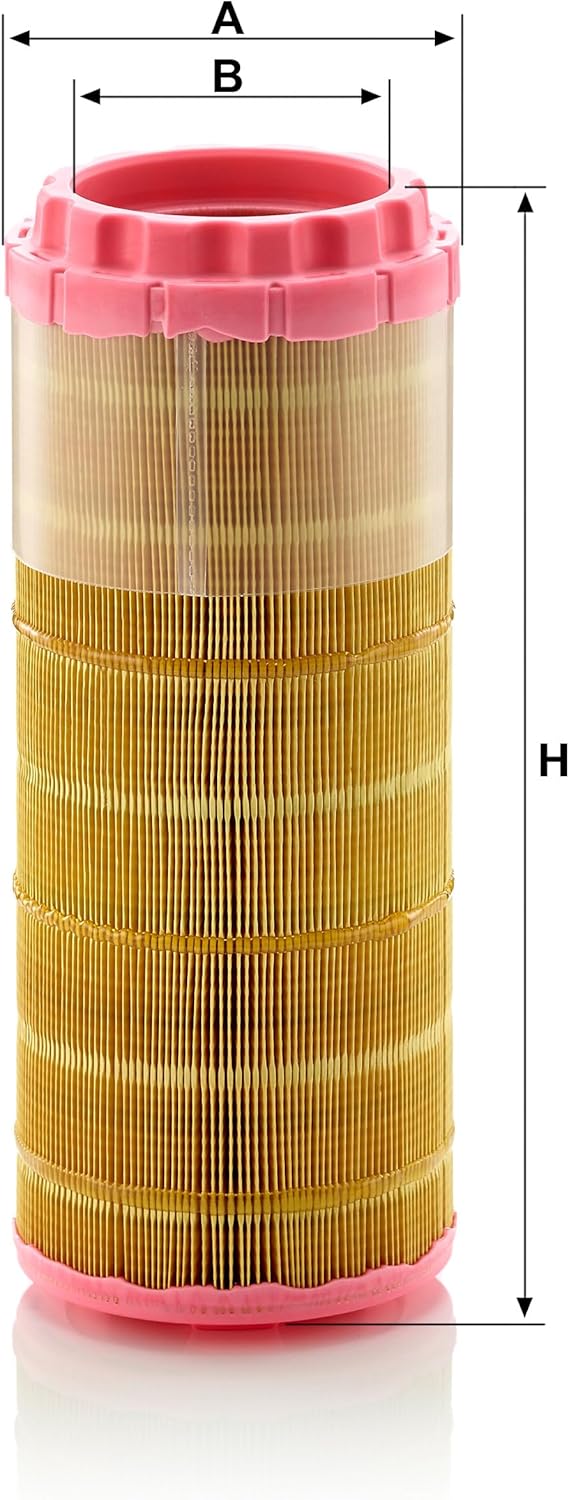

Image: Side view of the MANN-FILTER C 13 009 air filter, illustrating its key dimensions (A, B, H) for proper fitment.

Operating Principles

The MANN-FILTER C 13 009 operates as a passive component within the vehicle's air intake system. As the engine draws in air for combustion, the filter's pleated media traps airborne contaminants. This ensures that only clean air reaches the engine, optimizing combustion efficiency and preventing wear on internal engine components. The filter's design allows for high airflow while maintaining excellent filtration efficiency.

Maintenance

Regular maintenance of your air filter is essential for maintaining engine health and performance. A clogged air filter can significantly reduce engine efficiency and increase fuel consumption.

• Inspection Frequency: Inspect the air filter at every oil change or as recommended by your vehicle manufacturer, typically every 12,000 to 15,000 miles (20,000 to 25,000 km), or more frequently in dusty conditions.
• Signs of Clogging: Look for visible dirt, debris, or discoloration of the filter media. A heavily soiled filter will appear dark and may have accumulated particles.
• Replacement: Replace the air filter if it appears dirty or damaged. Do not attempt to clean paper-type air filters by blowing compressed air through them, as this can damage the filtration media and reduce its effectiveness.
• Genuine Parts: Always use genuine MANN-FILTER replacement parts to ensure compatibility and maintain the filtration quality and performance designed for your vehicle.

Troubleshooting

If you experience any of the following issues, a clogged or improperly installed air filter could be a contributing factor:

• Reduced Engine Performance: A dirty air filter restricts airflow to the engine, leading to a noticeable decrease in power and acceleration.
• Decreased Fuel Economy: The engine may compensate for restricted airflow by burning more fuel, resulting in higher fuel consumption.
• Engine Misfires or Rough Idling: Insufficient airflow can disrupt the air-fuel mixture, causing the engine to run roughly or misfire.
• Black Smoke from Exhaust: An overly rich fuel mixture due to restricted air can lead to incomplete combustion and black smoke.
• Unusual Engine Noises: A whistling or sucking sound from the air intake system might indicate an improper seal or a damaged filter housing.

Resolution: If you encounter any of these symptoms, inspect your MANN-FILTER C 13 009 air filter. If it is dirty or damaged, replace it immediately following the installation instructions. Ensure the air filter housing is properly sealed after replacement.

Specifications

Warranty and Support

For detailed warranty information regarding your MANN-FILTER C 13 009 air filter, please refer to the official MANN-FILTER website or the documentation provided with your purchase. Warranty terms and conditions may vary.

For technical support, product inquiries, or further assistance, please contact MANN-FILTER customer service directly or visit their official brand store:
