SKMEI 1120BB Analog-Digital Watch User Manual

Model: 1120BB

Introduction

Thank you for choosing the SKMEI 1120BB Analog-Digital Watch. This manual provides detailed instructions for setting up, operating, and maintaining your watch. Please read this manual carefully to ensure proper use and to enjoy the full functionality of your timepiece.

The SKMEI 1120BB features a dual display (analog and digital), a durable silicone band, and is designed for everyday wear with water resistance up to 5 ATM.

Watch Overview

Familiarize yourself with the watch's buttons and crown:

  • A (Top Left): LIGHT - Activates the backlight.
  • B (Bottom Left): MODE - Cycles through digital display modes (Time, Alarm, Stopwatch).
  • C (Top Right): START - Used to start/stop functions or adjust values.
  • D (Bottom Right): RESET - Used to reset functions or select values.
  • Crown (Right Side): Used to set the analog time.
Side view of SKMEI 1120BB watch showing the crown and buttons labeled START and RESET.

Image: Side view of the SKMEI 1120BB watch, highlighting the crown for analog time adjustment and the 'START' and 'RESET' buttons.

Setup

1. Initial Inspection

Upon unboxing, remove any protective films from the watch face and case back. Ensure all buttons operate smoothly.

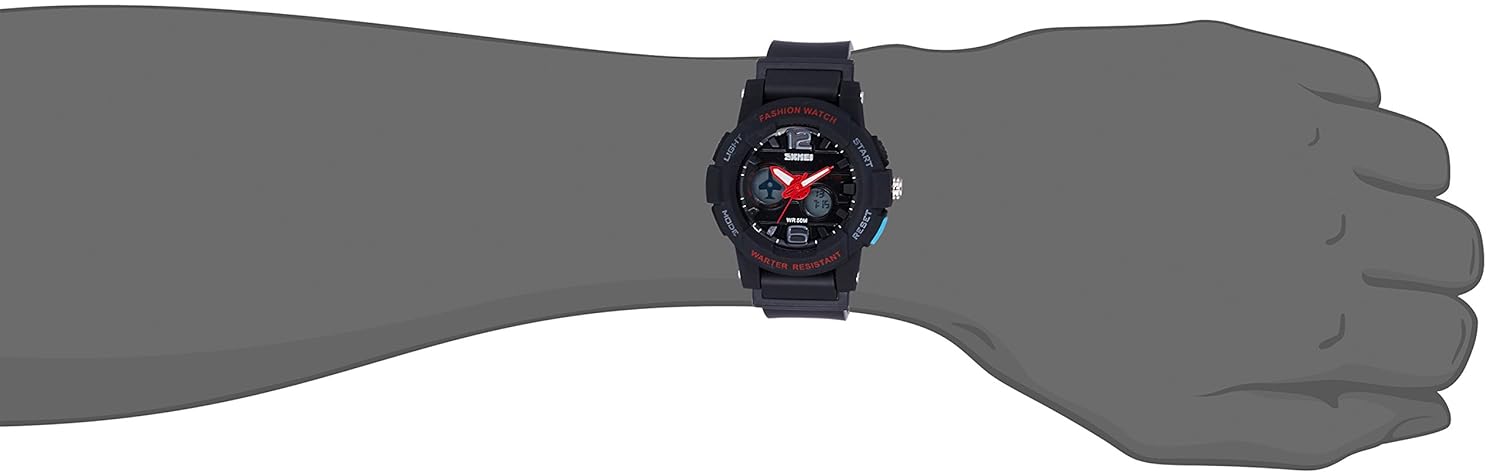

SKMEI 1120BB watch on a wrist, showing the black dial and silicone band.

Image: The SKMEI 1120BB watch displayed on a wrist, showcasing its overall design and fit.

2. Setting Analog Time

  1. Pull out the crown on the right side of the watch.
  2. Rotate the crown to adjust the hour and minute hands to the correct time.
  3. Push the crown back in to start the analog movement.

Operating Instructions

1. Setting Digital Time and Date

  1. Press button B (MODE) repeatedly until the digital time display starts flashing (usually the seconds).
  2. Press button D (RESET) to select the item you wish to adjust (seconds, hour, minute, month, date, day).
  3. Press button C (START) to increase the selected value. Hold C to advance rapidly.
  4. Once all settings are correct, press button B (MODE) to exit the setting mode.

2. Using the Stopwatch

  1. Press button B (MODE) until 'STW' or 'STOP' appears on the digital display.
  2. Press button C (START) to begin timing.
  3. Press button C (START) again to pause the timing.
  4. Press button C (START) to resume timing.
  5. While paused, press button D (RESET) to reset the stopwatch to zero.
  6. Press button B (MODE) to return to the normal time display.

3. Setting the Alarm

  1. Press button B (MODE) until 'ALM' or 'ALARM' appears on the digital display.
  2. Press button D (RESET) to select the hour or minute digit you wish to adjust.
  3. Press button C (START) to increase the selected value.
  4. Press button B (MODE) to exit the alarm setting mode.
  5. To turn the alarm ON/OFF, press button C (START) while in alarm mode. An alarm icon will appear/disappear.

4. Using the Backlight

Press button A (LIGHT) to illuminate the digital display for a few seconds, improving visibility in low-light conditions.

Maintenance

1. Cleaning

Wipe the watch regularly with a soft, dry cloth. For stubborn dirt, a slightly damp cloth can be used, followed by drying. Avoid using chemical cleaners or solvents, as these can damage the watch's finish and seals.

2. Water Resistance

Your SKMEI 1120BB watch is water resistant up to 5 ATM (50 meters). This means it is suitable for daily use, splashes, rain, and short periods of recreational swimming. It is not suitable for diving, snorkeling, or high-pressure water activities. Do not operate buttons or pull the crown while the watch is wet or submerged.

Back view of SKMEI 1120BB watch, showing the stainless steel case back with water resistance markings.

Image: Rear view of the SKMEI 1120BB watch, displaying the stainless steel case back and water resistance information.

3. Battery Replacement

The watch uses a standard watch battery. When the display dims or functions become erratic, it may be time for a battery replacement. It is recommended to have the battery replaced by a qualified watch technician to ensure proper sealing and maintain water resistance.

Troubleshooting

  • Digital Display is Blank: The battery may be depleted. Replace the battery.
  • Analog Hands Not Moving: Check if the crown is pushed in completely. If it is, the battery for the analog movement might be depleted, or there could be a mechanical issue.
  • Incorrect Digital Time/Date: Refer to the 'Setting Digital Time and Date' section to re-adjust the settings.
  • Buttons Not Responding: Ensure the watch is not in a locked mode (if applicable, though this model typically does not have one). If issues persist, a battery replacement might resolve minor electronic glitches.

Specifications

  • Model Number: 1120BB
  • Display Type: Analog-Digital
  • Movement Type: Quartz
  • Case Shape: Round
  • Dial Color: Black
  • Band Material: Silicone
  • Band Color: Black
  • Water Resistance: 5 ATM (50 meters)
  • Item Weight: 80 g
  • Package Dimensions: 8.4 x 8.2 x 7.8 cm

Warranty

This SKMEI 1120BB watch comes with a 6 months Manufacturer Warranty from the date of purchase. This warranty covers manufacturing defects under normal use. It does not cover damage resulting from improper use, accidents, unauthorized repairs, or normal wear and tear. Please retain your proof of purchase for warranty claims.

Support

For further assistance, technical support, or warranty claims, please contact your retailer or the SKMEI customer service department. Refer to the contact information provided with your purchase or on the official SKMEI website.
