1. Introduction
This user manual provides essential information for the proper installation, operation, and maintenance of your Samssung RB31FERNBSS Freezer Drawer. Please read this manual thoroughly before using the product to ensure safe and efficient use.
2. Product Overview
The Samssung RB31FERNBSS Freezer Drawer is a genuine replacement lower basket designed specifically for the Samssung RB31FERNBSS refrigerator-freezer model. It provides organized storage within the freezer compartment.

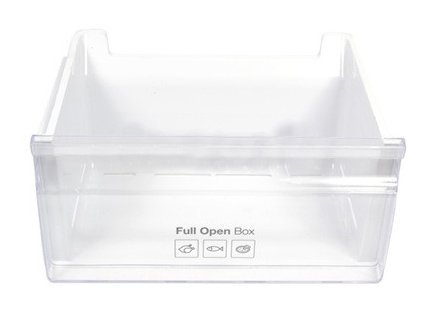

Figure 2.1: Samssung RB31FERNBSS Freezer Drawer. This image shows the clear plastic drawer with "Full Open Box" text and three small icons (fish, fish, ice cube) printed on its front surface, indicating its purpose for food storage.
3. Setup and Installation
The freezer drawer is designed for easy installation. Follow these steps:
- Preparation: Ensure your Samssung RB31FERNBSS refrigerator-freezer is unplugged from the power outlet before beginning installation.
- Remove Old Drawer (if applicable): If replacing an existing drawer, gently pull the old drawer out until it stops, then lift the front slightly and pull it completely out of the freezer compartment.
- Insert New Drawer: Align the new Samssung RB31FERNBSS Freezer Drawer with the runners inside the freezer compartment. Gently push the drawer in until it slides smoothly into place. Ensure it is fully seated.
- Test: Open and close the drawer a few times to ensure it slides freely and securely.
- Reconnect Power: Once the drawer is installed, you may plug your refrigerator-freezer back into the power outlet.
4. Operating Instructions
Using the freezer drawer is straightforward:
- Opening: Gently pull the handle or front edge of the drawer to open it.
- Closing: Push the drawer firmly until it is fully closed and sealed within the freezer compartment. This helps maintain optimal temperature and energy efficiency.
- Loading: Place frozen items neatly within the drawer. Avoid overfilling, as this can impede air circulation and make the drawer difficult to open or close.
5. Maintenance and Cleaning
Regular cleaning of your freezer drawer will help maintain hygiene and prolong its lifespan.
- Frequency: Clean the drawer periodically, or as needed, especially if spills occur.
- Removal for Cleaning: For thorough cleaning, remove the drawer from the freezer compartment as described in the "Setup and Installation" section.
- Cleaning Procedure:
- Wash the drawer with mild soap and warm water.
- Rinse thoroughly with clean water.
- Dry completely with a soft cloth before returning it to the freezer.
- Do Not Use: Avoid using abrasive cleaners, scouring pads, or harsh chemicals, as these can scratch or damage the plastic.
6. Troubleshooting
If you encounter any issues with your freezer drawer, consider the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Drawer does not slide smoothly. | Obstruction on runners; drawer not properly aligned; excessive ice buildup. | Remove drawer and check runners for debris. Realign the drawer. Defrost freezer if ice buildup is significant. |
| Drawer does not close completely. | Overfilled with items; obstruction; drawer not properly seated. | Rearrange items inside the drawer. Check for any items blocking the drawer's path. Ensure the drawer is correctly aligned on its runners. |
7. Specifications
| Feature | Detail |
|---|---|
| Product Type | Freezer Drawer (Lower Basket) |
| Brand | Samssung |
| Model Compatibility | Samssung RB31FERNBSS Refrigerator-Freezer |
| Manufacturer Reference | 494614-RB31FERNBSS |
| ASIN | B01EASL20E |
| Material | Clear Plastic |
8. Warranty and Support
For information regarding warranty coverage, please refer to the original documentation provided with your Samssung RB31FERNBSS refrigerator-freezer appliance, or contact Samssung customer support directly.
If you require further assistance or have questions not covered in this manual, please contact Samssung customer service or visit their official website for support resources.
