KidKraft McKinley Wooden Swing Set Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, safe operation, and maintenance of your KidKraft McKinley Wooden Swing Set. Please read all instructions carefully before assembly and use to ensure the safety of all users and the longevity of the product. This swing set is designed for children aged 36 months to 10 years.

Figure 1.1: Fully assembled KidKraft McKinley Wooden Swing Set.

2. Safety Guidelines

• Adult Supervision Required: Always supervise children when they are using the swing set.
• Age Range: Suitable for children aged 36 months to 10 years.
• Weight Limit: Adhere to individual component weight limits as specified in the assembly instructions.
• Clearance Area: Ensure a safety zone of at least 26 feet 3 inches by 28 feet around the entire swing set, free from obstacles such as fences, trees, and other structures.
• Grounding: The swing set should be installed on level ground. Consider anchoring the structure for added stability.
• Regular Inspection: Periodically check all nuts, bolts, and connections for tightness. Inspect wood for splinters, cracks, or deterioration.
• Weather Conditions: Do not use the swing set during wet conditions, strong winds, or extreme temperatures.

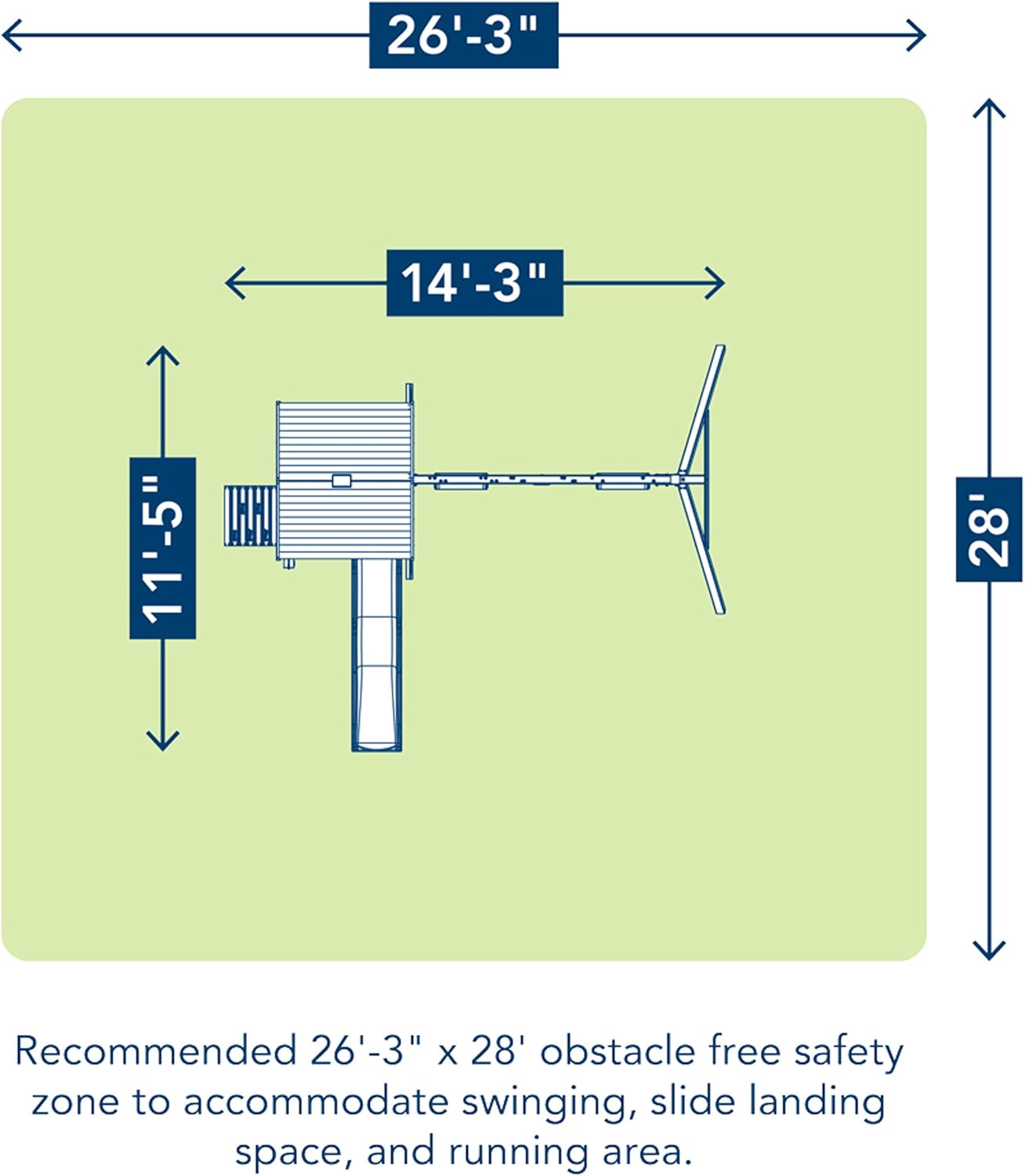

Figure 2.1: Recommended obstacle-free safety zone.

3. What's in the Box

Your KidKraft McKinley Swing Set is delivered in a single, large palletized package containing three main components: two long boxes of wooden parts and one slide. The package includes all necessary hardware, accessories, and pre-cut cedar lumber.

3.1 Package Contents

• Pre-cut and pre-drilled cedar lumber pieces
• Hardware (screws, bolts, washers, nuts)
• Swing components (two belt swings, one trapeze bar)
• Wave slide
• Play kitchen accessories (stove, sink, utensil shelf, pot, pan, spatula)
• Play phone
• Clock with movable hands
• Mailbox with working flag
• Assembly instructions

Figure 3.1: Palletized delivery of the swing set components.

Upon opening the package, lay out all wooden pieces on a clean, flat surface, such as a tarp. Each wooden piece is stamped with a number for easy identification during assembly. Refer to these numbers in the instruction manual for each step.

Figure 3.2: Wooden components laid out for assembly, showing identification stamps.

4. Setup & Assembly

Assembly typically requires two adults and can take approximately 8-10 hours. Power tools such as a drill and socket wrench set are recommended. It is advisable to assemble the main structure in its final desired location due to its size and weight.

4.1 Step-by-Step Assembly Overview

1. Unpack and Organize: Lay out all numbered wooden pieces and hardware according to the provided parts list.
2. Assemble Base Structure: Begin by constructing the lower clubhouse frame, ensuring all connections are secure.
3. Build Upper Clubhouse: Attach the upper clubhouse sections, following the numbered diagrams.
4. Install Roof: Assemble the two halves of the roof and secure them to the upper clubhouse.
5. Attach Swing Beam: Securely fasten the main swing beam to the clubhouse structure.
6. Install Swings and Trapeze Bar: Attach the two belt swings and the trapeze bar using the provided carabiners. These can be easily interchanged with other infant swings if desired.
7. Mount Slide: Secure the wave slide to the designated opening on the clubhouse.
8. Add Accessories: Install the play kitchen components, mailbox, clock, and play phone as per instructions.
9. Final Inspection: Double-check all nuts, bolts, and screws to ensure they are tightened properly. Confirm the stability of the entire structure.

Tip: Using quick-grip clamps can be helpful to hold pieces together while securing bolts, especially during solo assembly.

5. Operating Instructions

The KidKraft McKinley Swing Set offers multiple play features designed for imaginative and active play.

5.1 Swings and Slide

• Swings: The set includes two belt swings and a trapeze bar. Ensure children are seated properly and hold onto the chains or bar securely.
• Slide: The wave slide provides a fun descent from the upper clubhouse. Ensure children slide feet first and the landing area is clear.
• Rock Wall Ladder: Children can ascend to the upper clubhouse using the rock wall ladder.

5.2 Clubhouse Features

• Play Kitchen: Located in the lower clubhouse, it features a stove, sink, and utensil shelf with accessories for imaginative cooking play.


  Figure 5.1: Play kitchen with stove, sink, and accessories.

• Mailbox: A functional mailbox with a working flag is included for interactive play.


  Figure 5.2: Functional mailbox.

• Clock: A play clock with movable hands helps children learn about time.


  Figure 5.3: Play clock with movable hands.

• Play Phone: A toy phone is mounted for additional role-playing opportunities.


  Figure 5.4: Play phone.

6. Maintenance

Regular maintenance is crucial for the safety and longevity of your KidKraft McKinley Swing Set. The set is constructed from high-quality cedar lumber.

• Hardware Check: Annually, or more frequently if used heavily, inspect all nuts, bolts, and screws. Tighten any loose hardware to prevent structural instability.
• Wood Inspection: Regularly check all wooden components for splinters, cracks, or signs of rot. Sand down any rough spots and replace severely damaged pieces.
• Wood Treatment: To prolong the life of the cedar wood, consider applying a weather-resistant sealant or stain annually, especially in climates with significant weather variations.
• Swing Components: Inspect swing chains, ropes, and seats for wear and tear. Replace any damaged components immediately. Apply white lithium grease to swing hooks to prevent wear and reduce noise.
• Cleaning: Clean the plastic and wooden surfaces with mild soap and water. Avoid harsh chemicals that could damage the materials.
• Roof Reinforcement: The roof is secured with four screws. In areas prone to strong winds, consider additional reinforcement to prevent displacement.

7. Troubleshooting

• Loose Connections: If the structure feels wobbly, re-check all bolts and screws for tightness. Refer to the assembly instructions for correct placement and torque.
• Wood Cracking/Splitting: Minor cracks are common in natural wood due to weather changes. If cracks are significant or affect structural integrity, contact customer support for replacement parts. Regular sealing can help minimize this.
• Missing or Damaged Parts: If any parts are missing or damaged upon delivery, contact KidKraft customer support immediately.
• Difficulty Assembling: Ensure all pieces are correctly identified using the stamped numbers. Review the instruction manual diagrams carefully. If issues persist, consider seeking assistance from another adult.

8. Specifications

9. Customer Support

For any questions, concerns, or assistance with your KidKraft McKinley Wooden Swing Set, please contact KidKraft Customer Support. Refer to the contact information provided in your product packaging or visit the official KidKraft website for support details.
