Gates 8MX-45S-21 Taper Lock Sprocket Instruction Manual
Model: 8MX-45S-21
1. Introduction
This manual provides essential information for the safe and effective installation, operation, and maintenance of the Gates 8MX-45S-21 Taper Lock Sprocket. Please read these instructions thoroughly before proceeding with any procedures. Proper installation and maintenance are crucial for optimal performance and longevity of the sprocket.
2. Safety Information
Always prioritize safety when working with power transmission components. Failure to follow safety precautions can result in serious injury or equipment damage.
- Personal Protective Equipment (PPE): Always wear appropriate PPE, including safety glasses, gloves, and protective footwear.
- Lockout/Tagout: Ensure all power to machinery is disconnected and locked out before installation, maintenance, or inspection.
- Proper Tools: Use only the correct tools for installation and removal.
- Component Integrity: Inspect all components for damage before installation. Do not use damaged parts.
- Clearance: Maintain adequate clearance around rotating parts.
3. Product Overview
The Gates 8MX-45S-21 is a high-quality taper lock sprocket designed for robust power transmission applications. It features a 0.313" chain pitch, 45 teeth, and is designed for a 1/2" bore diameter, compatible with Chain Size 08B-1. The taper lock design ensures a secure, concentric fit on the shaft, facilitating easy installation and removal.

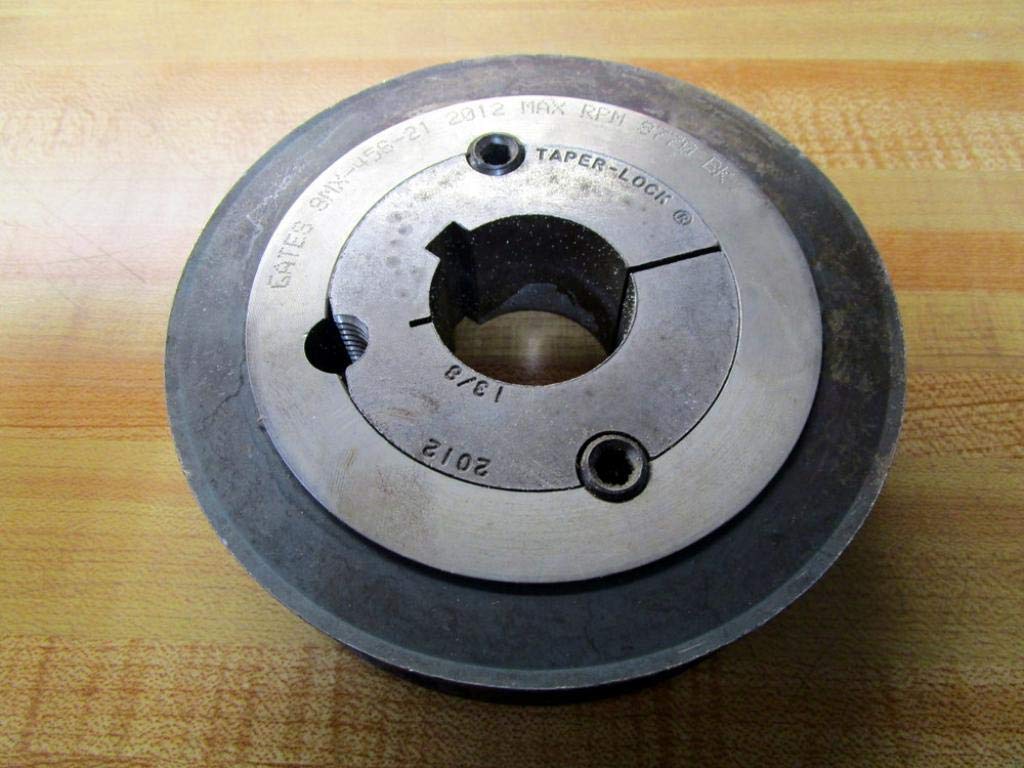

Figure 1: Overall view of the Gates 8MX-45S-21 Taper Lock Sprocket.
Figure 2: Detail of the sprocket hub with model markings.

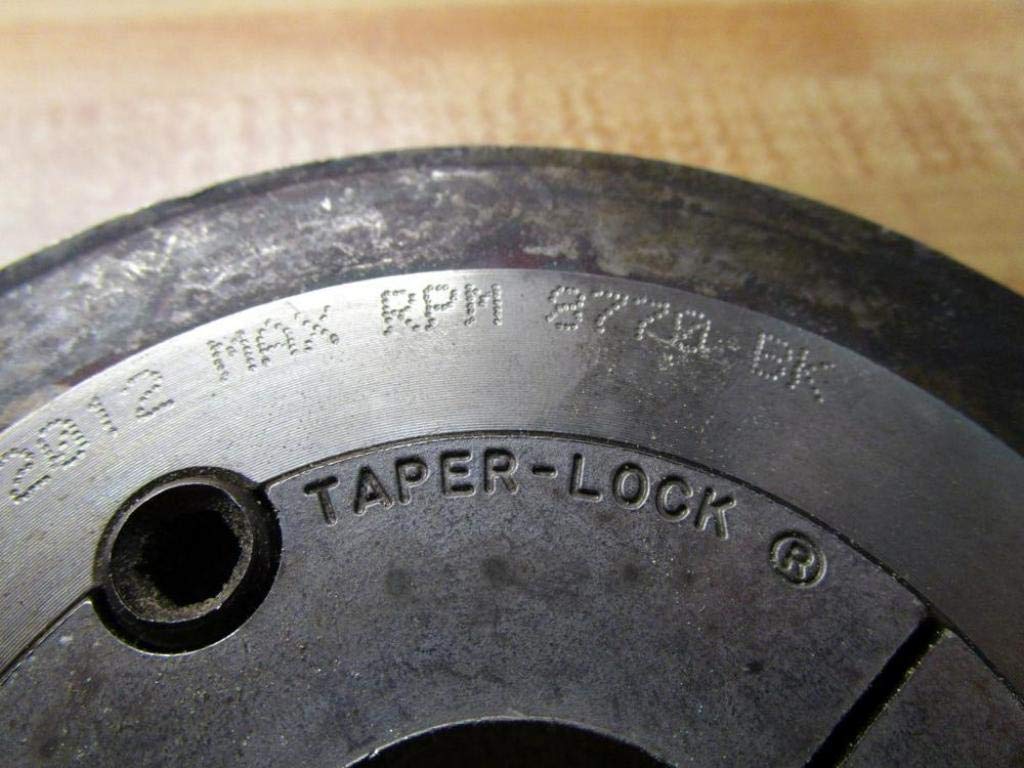

Figure 3: Detail of the Taper-Lock mechanism and RPM rating.
Figure 4: Side view illustrating the sprocket teeth.
4. Setup and Installation
Follow these steps for proper installation of the Gates 8MX-45S-21 Taper Lock Sprocket.
- Prepare Shaft: Ensure the shaft is clean, free of burrs, and within specified tolerances.
- Clean Components: Clean the bore of the bushing and the tapered surfaces of both the bushing and the sprocket with a suitable solvent to remove any oil or grease.
- Assemble Bushing: Insert the taper lock bushing into the sprocket bore. Align the non-threaded holes in the sprocket with the threaded holes in the bushing.
- Initial Fastening: Lightly thread the cap screws into the threaded holes of the bushing through the sprocket. Do not tighten yet.
- Mount on Shaft: Slide the assembled sprocket and bushing onto the shaft to the desired position.
- Tighten Screws: Alternately and progressively tighten the cap screws using a torque wrench to the manufacturer's recommended torque values (refer to Gates documentation for specific torque). Continue tightening until the bushing is firmly seated and the sprocket is secure on the shaft.
- Check Alignment: Ensure the sprocket is properly aligned with the mating sprocket to prevent premature chain and sprocket wear. Use a straight edge or laser alignment tool.
- Install Chain: Install the appropriate chain (Chain Size 08B-1) and adjust tension according to the chain manufacturer's specifications.
5. Operating
Once installed, the Gates 8MX-45S-21 Taper Lock Sprocket is designed for reliable operation within its specified parameters. Ensure the chain is correctly engaged with the sprocket teeth and that there is no excessive slack or tension. Monitor for unusual noises or vibrations during initial operation, which may indicate misalignment or improper installation.
6. Maintenance
Regular maintenance is essential to maximize the lifespan and performance of your sprocket.
- Inspection: Periodically inspect the sprocket teeth for wear, pitting, or damage. Check the taper lock bushing for any signs of loosening or corrosion.
- Cleaning: Keep the sprocket and surrounding area clean from debris, dust, and corrosive materials.
- Chain Lubrication: Follow the chain manufacturer's recommendations for lubrication to reduce friction and wear on both the chain and sprocket.
- Re-torque: After initial operation (e.g., 24-48 hours), re-check and re-torque the taper lock screws to ensure they remain secure.
7. Troubleshooting
If issues arise, consider the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Excessive Noise/Vibration | Misalignment, loose components, worn chain/sprocket | Check alignment, re-torque screws, inspect chain/sprocket for wear and replace if necessary. |
| Sprocket Slipping on Shaft | Insufficient torque on taper lock screws, greasy surfaces | Disconnect power, remove sprocket, clean surfaces, re-install and re-torque screws to specification. |
| Premature Wear | Misalignment, improper chain tension, lack of lubrication, abrasive environment | Verify alignment, adjust chain tension, ensure proper lubrication, protect from abrasive conditions. |
8. Specifications
Key specifications for the Gates 8MX-45S-21 Taper Lock Sprocket:
- Part Number: 8MX-45S-21
- Chain Pitch: 0.313 inches
- Number of Teeth: 45
- Bore Diameter: 1/2 inch
- Compatible Chain Size: 08B-1
- Product Dimensions: Approximately 6 x 6 x 6 inches
- Item Weight: Approximately 3 pounds
- Manufacturer: Gates
9. Warranty and Support
For warranty information, technical support, or replacement parts, please contact Gates directly through their official website or authorized distributors. Keep your purchase receipt and product model number (8MX-45S-21) handy when contacting support.
