MANN-FILTER HU 7033 Z Oil Filter User Manual

1. Introduction

This manual provides essential information for the proper use, installation, and maintenance of your MANN-FILTER HU 7033 Z Oil Filter. Designed for passenger cars and commercial vehicles, this high-quality filter ensures optimal engine protection and performance. Please read this manual thoroughly before installation and use.

2. Product Overview and Features

The MANN-FILTER HU 7033 Z is an advanced oil filter designed to protect your engine from harmful contaminants. Its key features include:

• High-Quality Original Equipment Filter: Manufactured to meet stringent original equipment standards.
• Optimal Filtration Performance: Ensures maximum filtration and cleaning to protect the engine from wear caused by dirt particles and combustion residues in the oil.
• Customized Filter Media: Utilizes specialized filter media for superior contaminant capture.
• High-Quality Sealing Materials: Provides optimal protection throughout the entire service interval.
• REACH Compliant: MANN+HUMMEL products adhere to European REACH regulations for health and environmental protection.

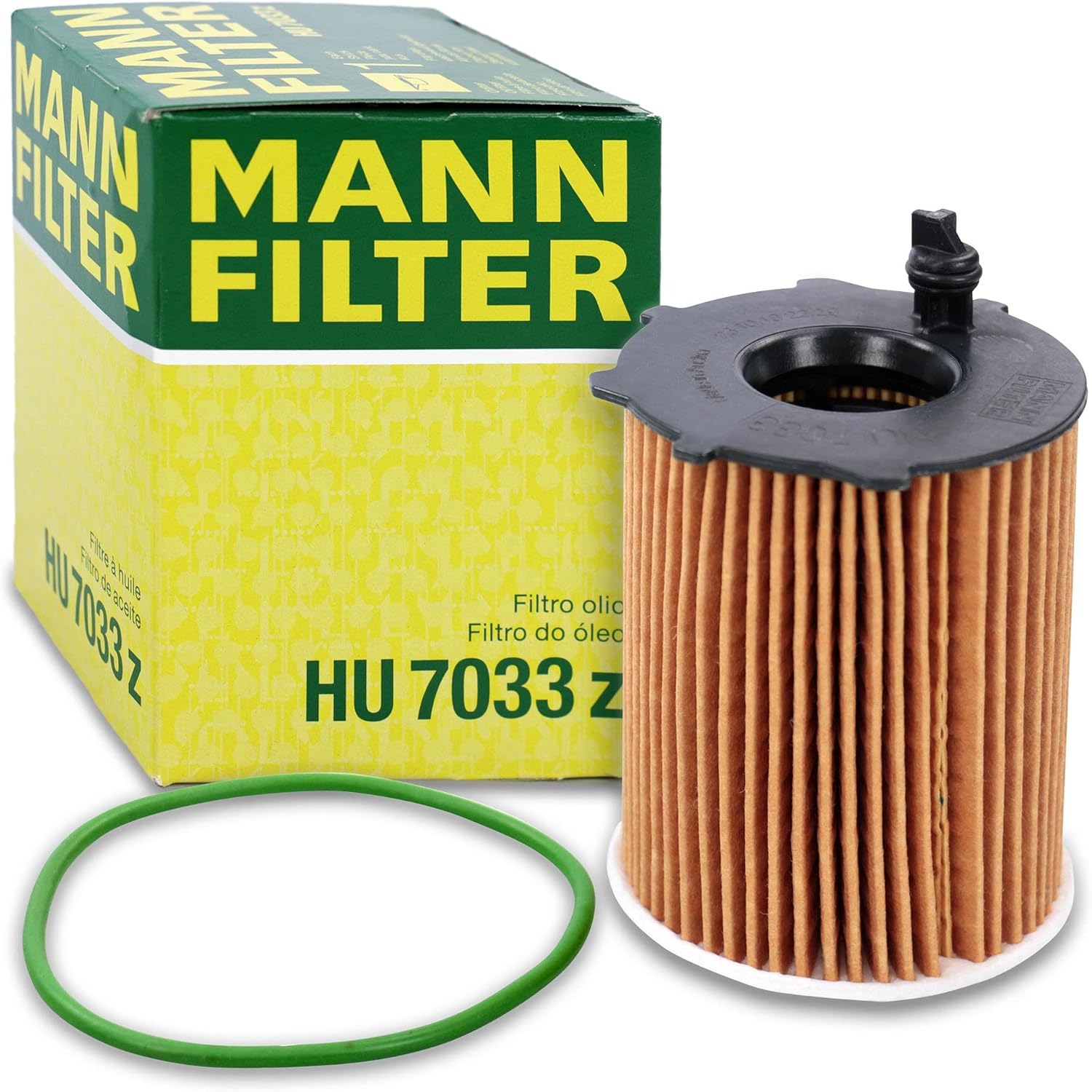

Figure 1: MANN-FILTER HU 7033 Z Oil Filter, showing the filter element, its packaging box, and a new green O-ring for sealing.

3. Installation (Setup)

Replacing an oil filter requires specific tools and knowledge. It is highly recommended that installation be performed by a qualified mechanic or by following your vehicle's specific service manual instructions. Incorrect installation can lead to engine damage.

General Installation Steps (Consult Vehicle Manual for Specifics):

1. Prepare the Vehicle: Ensure the engine is cool. Park the vehicle on a level surface and engage the parking brake. For safety, use jack stands if lifting the vehicle.
2. Locate the Oil Filter Housing: Refer to your vehicle's service manual for the exact location of the oil filter housing.
3. Drain Engine Oil: Place a drain pan under the oil drain plug. Remove the drain plug and allow all old engine oil to drain completely.
4. Remove Old Filter: Use an appropriate oil filter wrench to loosen and remove the old oil filter element from its housing. Be prepared for residual oil to drain.
5. Clean Housing: Thoroughly clean the oil filter housing and cap, removing any old oil or debris.
6. Install New O-Ring: Remove the old O-ring from the filter housing cap. Lubricate the new green O-ring (supplied with the filter) with fresh engine oil and install it onto the cap.
7. Install New Filter Element: Insert the new MANN-FILTER HU 7033 Z element into the filter housing. Ensure it is seated correctly.
8. Reinstall Housing Cap: Screw the filter housing cap back into place. Tighten it to the torque specification provided in your vehicle's service manual. Do not overtighten.
9. Refill Engine Oil: Replace the oil drain plug (with a new washer if required) and tighten it. Refill the engine with the correct type and amount of new engine oil as specified by your vehicle manufacturer.
10. Check for Leaks: Start the engine and let it run for a few minutes. Check for any oil leaks around the filter housing and drain plug. Turn off the engine and recheck the oil level.

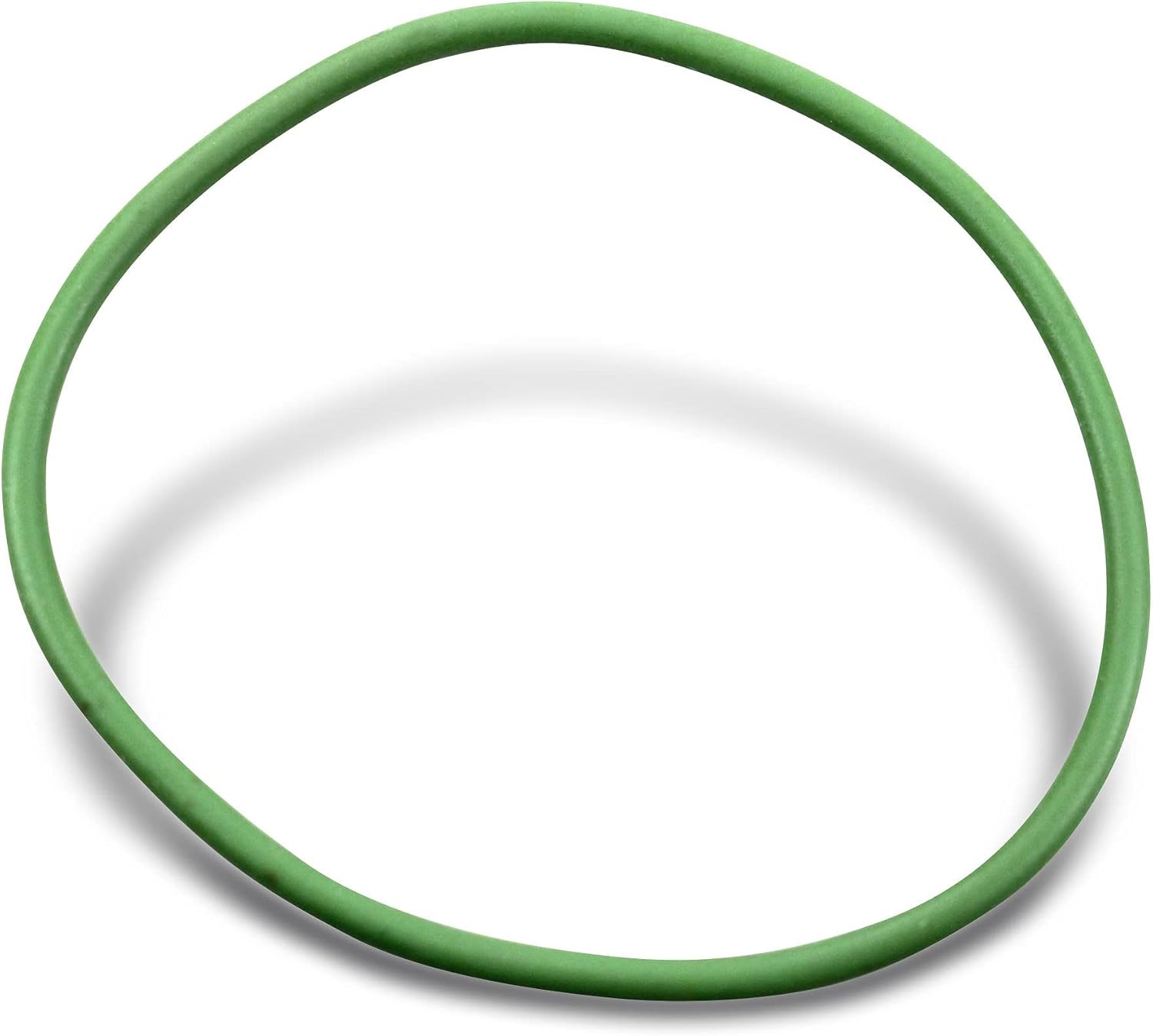

Figure 2: The new green O-ring, which must be lubricated and installed with the filter housing cap to ensure a proper seal.

4. Function (Operating Principle)

The MANN-FILTER HU 7033 Z is a cartridge-type oil filter designed to remove contaminants from engine oil. As engine oil circulates, it picks up various impurities such as metal particles from wear, dirt, carbon deposits, and unburnt fuel residues. The oil filter's pleated media traps these harmful particles, preventing them from circulating through the engine and causing premature wear to critical components like bearings, camshafts, and cylinder walls. Clean oil is crucial for engine longevity and efficient operation.

Figure 3: A close-up view of the pleated filter media, which is responsible for trapping contaminants in the engine oil.

5. Maintenance (Replacement Interval)

Regular replacement of the oil filter is vital for maintaining engine health. The filter's capacity to trap contaminants is finite, and a clogged filter can restrict oil flow, potentially leading to engine damage.

• Recommended Interval: Always follow your vehicle manufacturer's recommended oil and filter change intervals, typically found in your vehicle's owner's manual. This usually coincides with oil changes.
• Driving Conditions: If you operate your vehicle under severe conditions (e.g., frequent short trips, heavy towing, dusty environments, extreme temperatures), more frequent oil and filter changes may be necessary.

6. Troubleshooting (Signs of a Clogged Filter)

While an oil filter is designed to last until the next oil change, certain signs might indicate a problem or a severely clogged filter:

• Illuminated Oil Pressure Warning Light: This is a serious indicator of low oil pressure, which can be caused by a severely clogged filter restricting oil flow. Stop driving immediately and investigate.
• Reduced Engine Performance: While less common for oil filters directly, a severely restricted oil flow can indirectly affect engine performance.
• Unusual Engine Noises: Lack of proper lubrication due to restricted oil flow can lead to increased friction and unusual noises (e.g., ticking, knocking).
• Visible Oil Leaks: Although not directly related to filter clogging, improper installation of the filter or O-ring can cause leaks.

If you experience any of these symptoms, consult a qualified mechanic immediately.

7. Specifications

Key specifications for the MANN-FILTER HU 7033 Z Oil Filter:

8. What's in the Box

The MANN-FILTER HU 7033 Z package typically includes:

• 1 x MANN-FILTER HU 7033 Z Oil Filter Element
• 1 x Green O-ring (for sealing the filter housing cap)

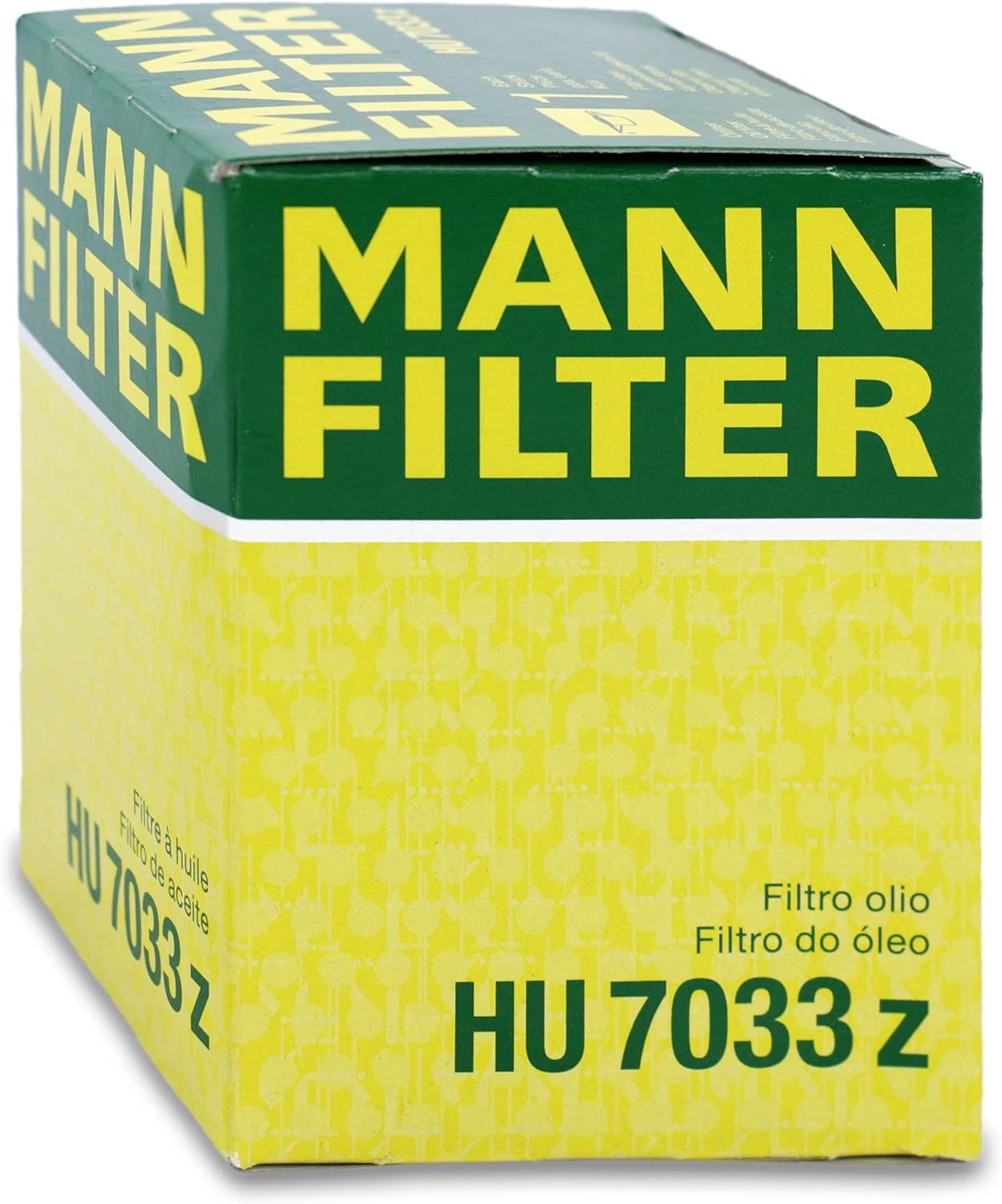

Figure 4: The MANN-FILTER HU 7033 Z product box, indicating the model number and type of filter.

9. Safety Information

• Always wear appropriate personal protective equipment (PPE) such as gloves and eye protection when handling engine oil and performing maintenance.
• Dispose of used oil and filters responsibly according to local environmental regulations. Do not pour used oil down drains or onto the ground.
• Ensure the vehicle is stable and secure before working underneath it.
• Keep out of reach of children.

10. Warranty and Support

Specific warranty details for the MANN-FILTER HU 7033 Z are not provided in this document. For warranty claims, technical support, or further inquiries, please contact Mann Filter directly or refer to their official website. Always retain your proof of purchase.

You can visit the official Mann Filter store for more information: Mann Filter Store
