Product Overview
The Moulinex Optimo 19 L Electric Oven (Model OX444810) is a compact and versatile appliance designed for everyday cooking. Featuring convection heat and six distinct cooking modes, it allows for efficient preparation of a variety of dishes. Its adjustable thermostat, reaching up to 240°C, and a 120-minute timer provide precise control over your cooking process. The oven comes equipped with a reversible rack and a drip tray for enhanced functionality.

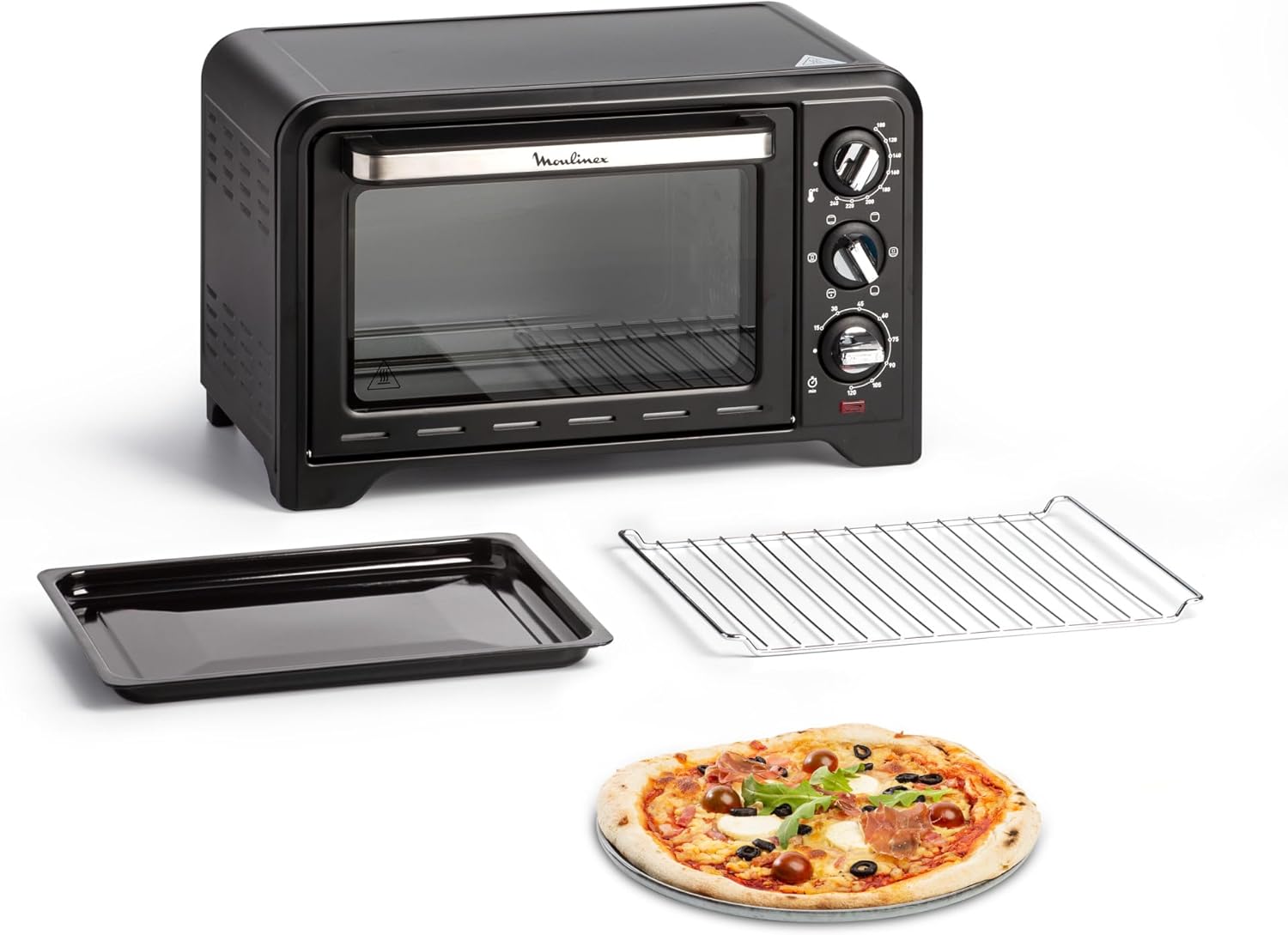

Image: The Moulinex Optimo 19 L Electric Oven, showcasing its compact design, along with the included reversible rack and drip tray. A freshly baked pizza is also visible, demonstrating the oven's cooking capabilities.
Setup
1. Unpacking
- Carefully remove the oven and all accessories from the packaging.
- Inspect the oven for any signs of damage. Do not use if damaged.
- Retain packaging materials for future transport or storage, if desired.
2. Placement
- Place the oven on a stable, flat, heat-resistant surface.
- Ensure adequate ventilation around the oven. Maintain a minimum distance of 10 cm (4 inches) from walls and other appliances.
- Do not place the oven near flammable materials or under curtains.
3. Initial Cleaning
- Before first use, wipe the interior and exterior of the oven with a damp cloth.
- Wash the reversible rack and drip tray with warm, soapy water, then rinse and dry thoroughly.
- For the first use, operate the empty oven at maximum temperature (240°C) for approximately 15 minutes to burn off any manufacturing residues. A slight odor or smoke may be present; this is normal and will dissipate. Ensure good ventilation during this process.
Operating Instructions
Controls Overview
Image: Front view of the Moulinex Optimo 19 L Electric Oven, highlighting the three control knobs for temperature, cooking mode, and timer.
- Temperature Knob: Located at the top, this knob allows you to set the desired cooking temperature from 100°C to 240°C.
- Cooking Mode Knob: The middle knob selects one of the six cooking modes.
- Timer Knob: The bottom knob sets the cooking duration, up to 120 minutes. The oven will automatically turn off when the timer reaches zero.
Cooking Modes
The Moulinex Optimo 19 L oven offers six versatile cooking modes to suit various culinary needs:
Image: A visual representation of the six cooking modes, illustrated by different cooked dishes such as roasted chicken, pizza, gratin, cake, and bread.
- Convection (Fan-Assisted Heat): Ideal for even cooking and baking, especially for multiple dishes simultaneously. The fan circulates hot air throughout the oven cavity.
- Conventional (Top and Bottom Heat): Suitable for traditional baking and roasting, providing heat from both the upper and lower heating elements.
- Grill: Perfect for browning, toasting, or grilling smaller items. Uses only the upper heating element.
- Bottom Heat: For dishes requiring more heat from the bottom, such as pizzas or pies with a crispy base.
- Defrost: A gentle setting for thawing frozen foods.
- Keep Warm: Maintains food at a serving temperature without further cooking.
General Operation
- Preheating: For best results, preheat the oven to the desired temperature before placing food inside. Turn the temperature knob to the desired setting and the timer knob to a short duration (e.g., 10-15 minutes). The indicator light will illuminate.
- Loading Food: Place food on the reversible rack or drip tray. The rack can be positioned at different heights depending on the dish.
- Setting Cooking Parameters:
- Turn the Temperature Knob to the required temperature.
- Select the appropriate Cooking Mode using the middle knob.
- Set the desired cooking time using the Timer Knob. The oven will start operating, and the indicator light will turn on.
- Monitoring: The oven door features a transparent window for easy monitoring of your food.
- Completion: When the timer reaches zero, a bell will sound, and the oven will automatically switch off. Carefully remove the cooked food using oven mitts.
Image: The Moulinex Optimo 19 L Electric Oven with its door open, showing a roasted chicken on the upper rack and a pizza on the lower drip tray, illustrating its internal capacity and how accessories are used.
Maintenance
Cleaning
- Always unplug the oven from the power outlet and allow it to cool completely before cleaning.
- Exterior: Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or scouring pads, as they may damage the finish.
- Interior: For spills and food residue, wipe the interior with a damp cloth and mild detergent. For stubborn stains, a non-abrasive oven cleaner designed for conventional ovens can be used, following the product instructions carefully. Ensure all cleaner residue is removed before next use.
- Accessories (Rack, Drip Tray): These can be washed in warm, soapy water or placed in a dishwasher. Rinse and dry thoroughly.
- Do not immerse the oven body, cord, or plug in water or any other liquid.
Storage
Ensure the oven is clean and dry before storing. Store in a cool, dry place, away from direct sunlight and moisture. If storing for an extended period, it is recommended to keep it in its original packaging to protect it from dust and damage.
Troubleshooting
If you encounter any issues with your Moulinex Optimo 19 L Electric Oven, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Oven does not turn on. | Not plugged in; power outlet issue; timer not set. | Ensure the oven is securely plugged into a working power outlet. Check the circuit breaker. Make sure the timer knob is set to a cooking duration. |
| Food not cooking evenly. | Incorrect mode selected; oven not preheated; food placement. | Ensure the correct cooking mode (e.g., Convection) is selected. Always preheat the oven. Adjust food placement for optimal air circulation. |
| Smoke or unusual odor during operation. | Food spills; initial burn-off; internal component issue. | For initial use, this is normal (see Setup). For subsequent uses, clean any food spills inside the oven. If the smell persists or is strong/burning plastic-like, immediately unplug the oven and contact customer support. |
| Timer not working. | Knob not set correctly. | Ensure the timer knob is turned past the "OFF" position and set to the desired duration. |
If the problem persists after attempting these solutions, please contact Moulinex customer support for further assistance.
Specifications
| Feature | Detail |
|---|---|
| Brand | Moulinex |
| Model Number | OX444810 |
| Color | Black |
| Capacity | 19 Liters |
| Power | 1380 Watts |
| Voltage | 240 Volts |
| Material | Stainless Steel |
| Product Dimensions (L x W x H) | 31.8 x 46.2 x 27.9 cm |
| Item Weight | 4.9 Kilograms |
| Special Features | Convection, Conventional, Grill |
| Control Type | Knob Control |
| Door Style | Side Opening |
| Included Components | Grill (Reversible Rack), Drip Tray |
Image: The Moulinex Optimo 19 L Electric Oven with its key dimensions (height, depth, width) clearly indicated for easy reference.
Warranty and Support
Moulinex is committed to providing quality products and support. Since 1956, Moulinex has been synonymous with innovation, simplifying life in the kitchen.
This product is designed to be repairable at a fair price for 15 years. Moulinex maintains a network of 6200 authorized repair centers worldwide to ensure long-term support for your appliance.
Image: Moulinex's commitment to sustainability and product longevity, indicated by a logo stating "Repairable at a fair price" for 15 years, supported by 6200 authorized repair centers globally.
For warranty claims, technical assistance, or to locate an authorized repair center, please visit the official Moulinex website or contact their customer service department. Keep your proof of purchase for warranty validation.
