Introduction
This manual provides detailed instructions for the safe and efficient use of your Sunbeam Greensense Compact Steam Iron, Model IR4002-001. Please read all instructions carefully before use and retain for future reference.
The Sunbeam GreenSense Steam Iron features powerful steam action and a compact design. It includes an anti-drip system, automatic shut-off, and a self-cleaning function. The non-stick soleplate is designed for smooth gliding across various fabrics.
Figure 1: Overview of the Sunbeam Greensense Compact Steam Iron. This image shows the iron from a side angle, highlighting its compact design and the water tank.
Important Safeguards
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:
- Read all instructions before using the iron.
- Use iron only for its intended use.
- To protect against a risk of electric shock, do not immerse the iron in water or other liquids.
- The iron should always be turned to OFF before plugging or unplugging from outlet. Never yank cord to disconnect from outlet; instead, grasp plug and pull to disconnect.
- Do not allow cord to touch hot surfaces. Let iron cool completely before putting away. Loop cord loosely around iron when storing.
- Always disconnect iron from electrical outlet when filling with water or emptying, and when not in use.
- Do not operate iron with a damaged cord or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron; take it to a qualified serviceman for examination and repair. Incorrect reassembly can cause a risk of electric shock when the iron is used.
- Close supervision is necessary for any appliance being used by or near children. Do not leave iron unattended while connected or on an ironing board.
- Burns can occur from touching hot metal parts, hot water, or steam. Use caution when you turn a steam iron upside down – there may be hot water in the reservoir.
Product Features
- Easy-to-operate fabric/temperature controls and multiple steam settings.
- Greensense design for water savings of up to 45%.
- Non-Stick soleplate for smooth gliding.
- Anti-Drip system, designed to use tap water.
- 15-minute automatic shut-off for safety.
- Spray Mist nozzle.
- Safe Storage Strip indicates when it's safe to store the iron.
- 8-foot power cord.
Setup
Before First Use
- Remove any labels, protective film, or stickers from the iron's soleplate and body.
- Ensure the iron is unplugged.
- Fill the water tank as described in the "Filling the Water Tank" section below.
- Test the iron on an old piece of fabric to ensure no residue is left on the soleplate.
Filling the Water Tank
- Ensure the iron is unplugged from the electrical outlet.
- Set the steam control to the DRY position (no steam).
- Open the water fill cover.
- Using a measuring cup, carefully pour tap water into the water fill opening until the water level reaches the "MAX FILL" line. Do not overfill.
- Close the water fill cover securely.
Figure 2: Detail of the water fill opening and the "MAX FILL" indicator. This image also shows the spray mist button and the steam control lever.
Operating Instructions
Temperature and Fabric Selection
- Plug the iron into a standard electrical outlet.
- Turn the temperature control dial to the desired fabric setting (e.g., Linen, Cotton, Wool, Silk, Synthetics). Refer to the fabric care label on your garment.
- Allow the iron to heat up. The indicator light will turn off when the selected temperature is reached.

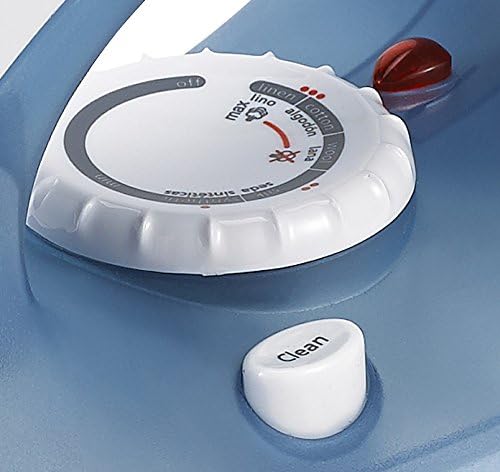

Figure 3: Temperature control dial with fabric settings and the self-clean button. The dial clearly shows settings for various fabric types.
Steam Ironing
- Ensure the water tank is filled.
- Set the temperature control to a steam-appropriate setting (usually Cotton, Linen, or higher). Steam will not generate at lower temperatures.
- Move the steam control lever to the desired steam level.
- Begin ironing.
Dry Ironing
- Ensure the water tank is empty or the steam control lever is set to the DRY position.
- Set the temperature control dial to the desired fabric setting.
- Begin ironing.
Spray Mist Function
- Press the spray mist button to release a fine mist of water onto the fabric. This is useful for dampening stubborn wrinkles.
Automatic Shut-Off
For safety, the iron is equipped with a 15-minute automatic shut-off feature. If the iron is left stationary in an upright position for 15 minutes, it will automatically turn off. To reset, simply move the iron. The heating indicator light will illuminate, and the iron will reheat to the selected temperature.
Maintenance
Self-Cleaning Function
The self-cleaning feature helps to remove mineral deposits from the steam chamber, prolonging the life of your iron.
- Fill the water tank to the "MAX FILL" line.
- Plug in the iron and set the temperature control to the maximum setting.
- Allow the iron to heat until the indicator light turns off.
- Unplug the iron.
- Hold the iron horizontally over a sink.
- Press and hold the CLEAN button (refer to Figure 3). Hot water and steam will flush out from the soleplate, carrying mineral deposits.
- Gently rock the iron back and forth until the water tank is empty.
- Release the CLEAN button.
- Plug the iron back in and allow it to heat up to dry the soleplate.
- Unplug and store once cooled.
Draining and Storage
- After each use, unplug the iron and allow it to cool completely.
- Empty any remaining water from the tank by opening the water fill cover and tilting the iron over a sink.
- Store the iron upright on its heel rest to prevent water leakage from the soleplate. The Safe Storage Strip will indicate when it's safe to store.
Cleaning the Exterior
- Wipe the exterior of the iron with a damp cloth. Do not use abrasive cleaners or scouring pads.
- For stubborn spots on the soleplate, use a non-abrasive iron cleaner.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Iron does not heat up. | Iron is unplugged; power outlet is not working; automatic shut-off activated. | Check power connection; test outlet with another appliance; move the iron to reset the auto shut-off. |
| Iron leaks or drips water. | Temperature setting is too low for steam; water tank overfilled; steam control not set to DRY for dry ironing. | Increase temperature setting to steam range; do not overfill water tank; ensure steam control is on DRY for dry ironing. |
| No steam or insufficient steam. | Water tank is empty; temperature setting is too low; steam control is in DRY position. | Fill water tank; set temperature to steam range (Cotton, Linen); move steam control to desired steam level. |
| Soleplate is dirty. | Mineral deposits or starch residue. | Use the self-cleaning function; clean with a damp cloth or non-abrasive iron cleaner. |
Specifications
- Model Name: IR4002
- Model Number: IR4002-001
- Brand: Sunbeam
- Special Feature: Automatic Shut-Off, Spray Mist, Self-Cleaning, Anti-Drip
- Color: White
- Soleplate Material: Non-Stick (with Stainless Steel base)
- Power Cord Length: 8 feet
- Frequency: 50 Hz
- UPC: 027045766029
Warranty and Support
Specific warranty information is not provided in this document. For details regarding warranty coverage, please refer to the warranty card included with your product packaging or contact Sunbeam customer support directly.
For technical assistance or customer service, please visit the official Sunbeam website or contact their customer support line.
