Ultrasport 4-in-1 Door Frame Pull-Up Bar Instruction Manual

Introduction

This manual provides essential information for the safe and effective use of your Ultrasport 4-in-1 Door Frame Pull-Up Bar. Please read all instructions carefully before assembly and use. Retain this manual for future reference.

Product Overview

The Ultrasport 4-in-1 Door Frame Pull-Up Bar is a versatile fitness device designed for upper body strength training. It allows for various exercises including pull-ups, chin-ups, push-ups, and dips, utilizing your body weight for resistance. Its design facilitates easy installation on most standard door frames without the need for drilling.

Intended Use

This product is intended for personal home fitness use by adults. It is designed to be mounted on a sturdy door frame or used on the floor for bodyweight exercises. Any other use is considered improper and may result in injury or damage to the product.

Important Safety Instructions

• Consult a physician before starting any new exercise program, especially if you have pre-existing medical conditions.
• Always inspect the pull-up bar and your door frame for any signs of damage or wear before each use. Do not use if damaged.
• Ensure the door frame is structurally sound, securely installed, and capable of supporting your body weight plus the weight of the bar.
• The maximum user weight capacity for this device is 100 kg (220 lbs). Do not exceed this limit.
• Ensure the bar is correctly and securely installed on the door frame according to the instructions before beginning any exercises.
• Use caution when mounting and dismounting the bar. Always maintain a controlled movement.
• Keep children and pets away from the equipment during use to prevent accidents.
• Do not modify the product in any way. Unauthorized modifications may compromise safety and void the warranty.
• Wear appropriate athletic footwear and clothing during exercise.

Package Contents

Please verify that all components are present and undamaged before assembly.

• Main pull-up bar frame (multiple sections)
• Padded foam grips (pre-installed or separate)
• Door frame protection pads
• Assembly hardware (bolts, washers, nuts)

Setup and Installation

Door Frame Requirements

For safe and secure installation, your door frame must meet the following specifications:

• Door Frame Width: Approximately 61 cm to 81 cm (24 to 32 inches).
• Door Frame Depth/Thickness: Approximately 12 cm to 16 cm (4.7 to 6 inches).
• Door Frame Trim/Molding: The trim on top of the door frame should be at least 2 cm (0.8 inches) thick to provide a secure resting point for the bar.
• The door frame must be robust and securely attached to the wall. Avoid installation on weak, decorative, or hollow door frames.

Assembly Steps

1. Unpack all components and lay them out. Refer to the package contents list to ensure all parts are present.

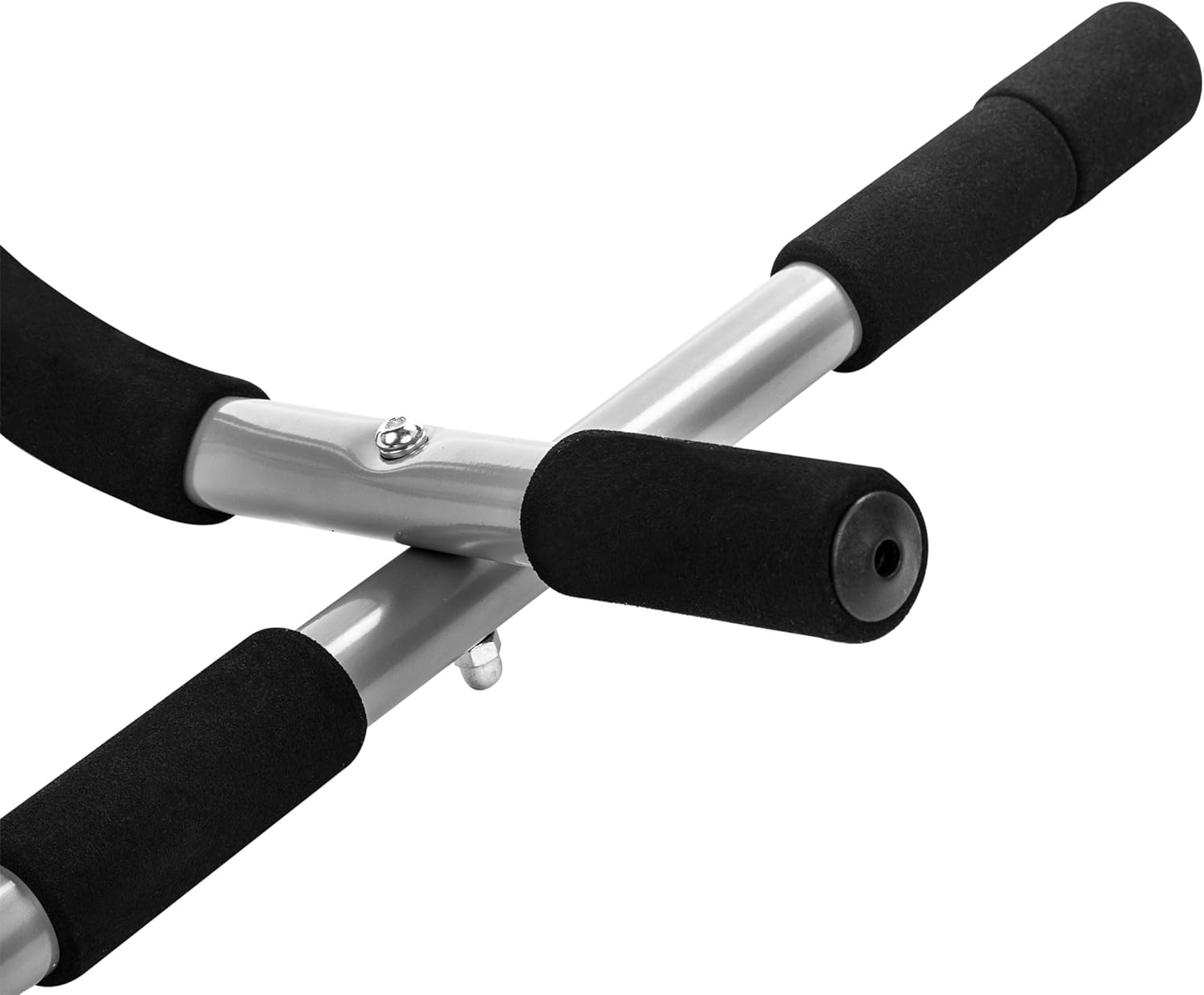

2. Connect the main bar sections using the provided bolts, washers, and nuts. Ensure all connections are tight and secure.
3. Attach any separate foam grips if they are not pre-installed. Ensure they are firmly in place.
4. Position the protective pads on the parts of the bar that will contact the door frame to prevent scratches and provide stability.
5. Carefully place the assembled pull-up bar onto the top of your door frame, ensuring the upper support bar rests securely on the door frame trim and the main bar extends into the doorway.
6. Gently test the stability of the bar by applying light pressure before full use. Ensure there is no wobbling or movement.

Operating Instructions

The Ultrasport 4-in-1 Pull-Up Bar offers multiple exercise options. Always ensure proper form to maximize effectiveness and prevent injury.

Pull-Up and Chin-Up Exercises (Door Frame Mounted)

Once the bar is securely mounted on the door frame:

• Pull-Ups: Grip the outer handles with an overhand (palms facing away) grip, slightly wider than shoulder-width apart. Hang with arms fully extended. Pull your body up until your chin clears the bar. Lower yourself slowly and with control.
• Chin-Ups: Grip the inner handles with an underhand (palms facing towards you) grip, shoulder-width apart. Hang with arms fully extended. Pull your body up until your chin clears the bar. Lower yourself slowly and with control.
• Neutral Grip Pull-Ups: Use the angled grips with palms facing each other. This variation can be easier on the wrists and shoulders.

Floor Exercises (Push-ups, Dips)

The pull-up bar can also be used on the floor for additional exercises:

• Push-Ups: Place the bar on the floor with the curved handles facing upwards. Grip the handles to perform push-ups. This provides a greater range of motion and reduces wrist strain compared to traditional push-ups.
• Dips: Use the bar on the floor to perform dips, targeting your triceps and chest.

Maintenance

• Cleaning: Wipe the bar with a damp cloth after each use to remove sweat and dirt. Do not use abrasive cleaners or solvents, as these can damage the finish and foam grips.
• Inspection: Regularly check all bolts, nuts, and connections to ensure they remain tight. Tighten any loose hardware immediately.
• Grip Care: Inspect the foam grips for any signs of wear, tears, or deterioration. Replace if necessary to maintain a secure grip.
• Storage: Store the pull-up bar in a dry place, away from direct sunlight and extreme temperatures, when not in use.

Troubleshooting

Bar feels unstable or wobbly

• Check Connections: Ensure all assembly bolts and nuts are securely tightened.
• Verify Door Frame: Confirm that your door frame meets the specified width (61-81 cm) and depth (12-16 cm) requirements. An incompatible door frame can lead to instability.
• Proper Seating: Make sure the upper support bar is fully and evenly seated on the door frame trim.

Door frame damage (scratches, dents)

• Protective Pads: Ensure all protective pads are correctly positioned between the bar and the door frame.
• Frame Strength: The door frame itself might be too weak or made of a material prone to damage. Consider reinforcing the frame or using the bar in a different location.

Specifications

Warranty and Support

For information regarding warranty coverage, product support, or to purchase replacement parts, please refer to the product packaging or contact Ultrasport customer service through their official website or the retailer where the product was purchased. Please have your model number (331100000123) and purchase details ready when contacting support.
