Necchi N82 Automatic Sewing Machine Instruction Manual

Introduction

Welcome to the Necchi N82 Automatic Sewing Machine instruction manual. This guide provides essential information for the safe and efficient operation of your new sewing machine. Please read this manual thoroughly before using the machine to ensure proper setup, operation, and maintenance.

The Necchi N82 is a robust and versatile sewing machine, ideal for both beginners and experienced users. It features 8 stitch points, 14 programs, and a 4-step automatic buttonhole function, designed to handle various sewing projects with ease.

Important Safety Instructions

When using an electrical appliance, basic safety precautions should always be followed, including the following:

• Read all instructions before using this sewing machine.
• Keep these instructions in a convenient place near the machine.
• Always unplug the sewing machine from the electrical outlet immediately after using and before cleaning, removing covers, lubricating, or making any other user servicing adjustments mentioned in the instruction manual.
• Do not allow children to play with the machine. Close supervision is necessary when the sewing machine is used by or near children.
• Use this product only for its intended use as described in this manual. Use only accessories recommended by the manufacturer.
• Never operate this sewing machine if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water.
• Never drop or insert any object into any opening.
• Do not use outdoors.
• Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
• To disconnect, turn all controls to the off position, then remove plug from outlet.
• Keep fingers away from all moving parts. Special care is required around the sewing machine needle.
• Always use the proper needle plate. The wrong plate can cause the needle to break.
• Do not use bent needles.
• Do not pull or push fabric while stitching. This may deflect the needle causing it to break.
• Wear safety glasses.

Package Contents

Upon unpacking your Necchi N82 sewing machine, please ensure all the following items are present:

• Necchi N82 Sewing Machine
• Standard Zigzag Foot
• Zipper Foot
• Buttonhole Foot
• Screwdriver
• Oiler
• Needles (assorted)
• Quilt Guide
• 3 Bobbins
• Darning Plate (for feed dog cover)
• 2 Spool Holders (large and small)
• Felt Pad
• Electric Foot Pedal
• Instruction Manual (this document)

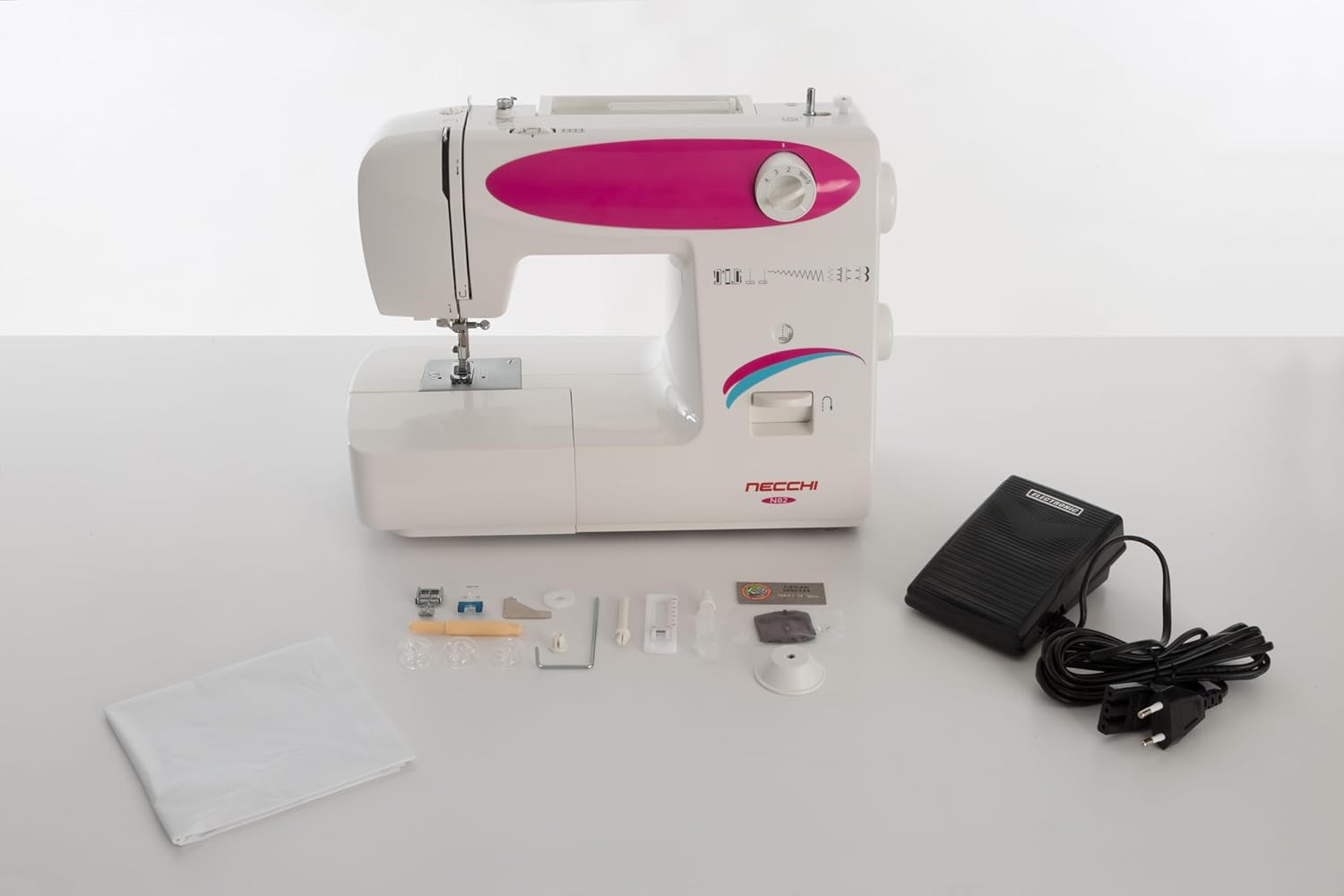

Image: The Necchi N82 sewing machine displayed with its complete set of accessories, including various presser feet, bobbins, needles, and the foot pedal.

Machine Overview

Familiarize yourself with the main components of your Necchi N82 sewing machine.

Image: A clear front view of the Necchi N82 sewing machine, highlighting its general design and controls.

Image: A detailed front view of the Necchi N82 sewing machine, showing the needle area, presser foot, and stitch selection dial.

Image: A side view of the Necchi N82 sewing machine, illustrating its profile and power input area.

Key Components:

• Stitch Selector Dial: Used to choose desired stitch patterns.
• Stitch Length/Width Dial: Adjusts the length and width of stitches.
• Tension Dial: Controls the tension of the upper thread.
• Reverse Stitch Lever: For reinforcing seams.
• Presser Foot Lifter: Raises and lowers the presser foot.
• Needle Clamp: Holds the needle in place.
• Bobbin Winder: For winding thread onto bobbins.
• Free Arm: Allows for sewing cylindrical items like sleeves and pant hems.
• Foot Pedal Connector: For connecting the electric foot pedal.
• Power Switch: Turns the machine on/off.

Setup

1. Power Connection

1. Ensure the power switch is in the "OFF" position.
2. Connect the foot pedal cord to the machine's foot pedal connector.
3. Plug the power cord into a suitable electrical outlet.
4. Turn the power switch to "ON". The sewing light will illuminate.

2. Winding the Bobbin

1. Place a spool of thread on the spool pin, securing it with a spool holder.
2. Guide the thread through the upper thread guide and around the bobbin winding tension disc.
3. Place an empty bobbin onto the bobbin winder spindle.
4. Wrap the thread clockwise several times around the bobbin.
5. Push the bobbin winder spindle to the right.
6. Press the foot pedal gently to start winding. Stop when the bobbin is full.
7. Cut the thread and push the bobbin winder spindle back to the left. Remove the wound bobbin.

3. Inserting the Bobbin

1. Open the bobbin cover plate.
2. Insert the wound bobbin into the bobbin case, ensuring the thread unwinds in the correct direction (usually counter-clockwise).
3. Guide the thread through the tension spring and into the thread guide slot.
4. Close the bobbin cover plate.

4. Threading the Upper Thread

1. Raise the presser foot lifter.
2. Place a spool of thread on the spool pin.
3. Guide the thread through the upper thread guide.
4. Follow the numbered threading path down to the tension discs, up to the take-up lever, and then down to the needle.
5. Thread the needle from front to back. Pull about 15 cm (6 inches) of thread through the needle eye.

5. Bringing Up the Bobbin Thread

1. Hold the upper thread lightly with your left hand.
2. Turn the handwheel towards you (counter-clockwise) to lower the needle into the needle plate and then raise it again.
3. The needle thread will catch the bobbin thread, forming a loop. Pull the loop up with the upper thread.
4. Pull both threads (upper and bobbin) under the presser foot and towards the back of the machine.

Operating Instructions

1. Stitch Selection

The Necchi N82 offers 8 stitch points and 14 programs. To select a stitch, turn the Stitch Selector Dial until the desired stitch pattern aligns with the indicator mark. The visual stitch selection window allows you to see the chosen pattern.

Image: The Necchi N82 sewing machine set up on a table with fabric, scissors, and other sewing accessories, demonstrating a typical use scenario.

2. Stitch Length and Width Adjustment

Adjust the stitch length and width using the dedicated dials. Refer to the zigzag scale for precise adjustments, especially for decorative or zigzag stitches.

3. Thread Tension Adjustment

The tension dial controls the tightness of the upper thread. For balanced stitches, the upper and lower threads should interlock evenly between the fabric layers. Adjust as needed for different fabrics and threads.

4. Automatic Buttonhole Function (4-Step)

1. Attach the buttonhole foot.
2. Select the first step of the buttonhole program on the stitch selector dial.
3. Follow the machine's markings or the manual's specific instructions for each of the four steps to create a complete buttonhole.

5. Free Arm Sewing

To use the free arm, slide off the accessory box. This exposes the narrow free arm, perfect for sewing cuffs, sleeves, pant hems, and other small, cylindrical items.

Image: The Necchi N82 sewing machine with its removable accessory box detached, showcasing the free arm feature for sewing tubular items.

6. Reverse Stitching

Press and hold the reverse stitch lever to sew in reverse. This is used to secure the beginning and end of seams, preventing unraveling. Release the lever to resume forward stitching.

7. Adjustable Presser Foot Pressure

The machine features an adjustable presser foot pressure control. This allows you to fine-tune the pressure applied to the fabric, which is crucial when working with very thin or very thick materials to ensure even feeding.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your Necchi N82 sewing machine. Always unplug the machine before performing any maintenance.

1. Cleaning

• Feed Dogs: Remove the needle plate and use the small brush (included) to clean lint and dust from the feed dogs.
• Bobbin Area: Remove the bobbin and bobbin case. Clean any lint or thread scraps from this area with the brush.
• Machine Surface: Wipe the exterior of the machine with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.

2. Oiling

Your machine comes with an oiler. Apply a small drop of sewing machine oil to the moving metal parts in the bobbin area and other designated oiling points as indicated in a more detailed diagram (if available in a physical manual). Over-oiling can cause stains on fabric.

3. Needle Replacement

1. Turn off the machine and unplug it.
2. Loosen the needle clamp screw with the screwdriver.
3. Remove the old needle.
4. Insert a new needle with the flat side facing the back of the machine, pushing it up as far as it will go.
5. Tighten the needle clamp screw securely.

Troubleshooting

This section addresses common issues you might encounter. For problems not listed here, please contact customer support.

Specifications

Technical specifications for the Necchi N82 Automatic Sewing Machine:

Warranty and Support

For warranty information, please refer to the warranty card included with your purchase or contact your retailer.

If you require technical assistance or have questions regarding the operation or maintenance of your Necchi N82 sewing machine, please contact Necchi customer support or your authorized service center.
