Franklin Sensors ProSensor 710+ Stud Finder Instruction Manual

Introduction

The Franklin Sensors ProSensor 710+ is an advanced stud finder designed for accurate detection of wood and metal studs behind drywall. Featuring 13 patented sensors and a wide LED display, it provides precise location of stud centers and edges simultaneously, eliminating the need for calibration.

Key Features

• Higher Accuracy, Better Technology: With 13 patented sensors, the 710+ detects studs more accurately
• Shows FULL WIDTH of Studs: The wide LED display shows the stud’s center and edges simultaneously
• Deep Scan 1.6", Always On: the 710+ auto-adjusts for depth through 1 layer of sheetrock/drywall
• Accurate and Easy: Just press and hold the button to instantly detect studs. No calibration required
• Built-in Bubble Level and Integrated Ruler. Requires 2 non-rechargeable AA batteries, not included

Figure 1: The Franklin Sensors ProSensor 710+ Stud Finder.

Figure 2: Illustration of the 13 precision sensors and their detection fields.

Setup

Battery Installation

The ProSensor 710+ requires two (2) non-rechargeable AA batteries (not included).

1. Locate the battery cover on the back of the device.
2. Push the battery cover to the left to open.
3. Insert two AA batteries, ensuring correct polarity (+/-).
4. Push the battery cover to the right to close and secure.

Figure 3: Step-by-step guide for installing AA batteries into the stud finder.

Operating Instructions

Basic Operation

The ProSensor 710+ is designed for instant and accurate stud detection without calibration.

1. Place the stud finder flat against the wall surface.
2. Press and hold the power button located on the front of the device. The LED lights will illuminate as it detects changes in density.
3. Slowly slide the device horizontally across the wall. The wide LED display will indicate the full width of the stud, showing both its center and edges simultaneously.
4. For best results, keep your fingers off the detector outside of the handle area.

Figure 4: Demonstrates the simple, easy, and accurate operation of the stud finder.

Figure 5: Visual representation of how the 13 sensor fields detect a stud behind drywall.

Maintenance

Care and Storage

• Keep the device clean and free from dust and debris. Wipe with a soft, dry cloth.
• Store the stud finder in a cool, dry place when not in use.
• Remove batteries if the device will not be used for an extended period to prevent leakage.
• Avoid dropping the device or exposing it to extreme temperatures or moisture.

Troubleshooting

Common Issues and Solutions

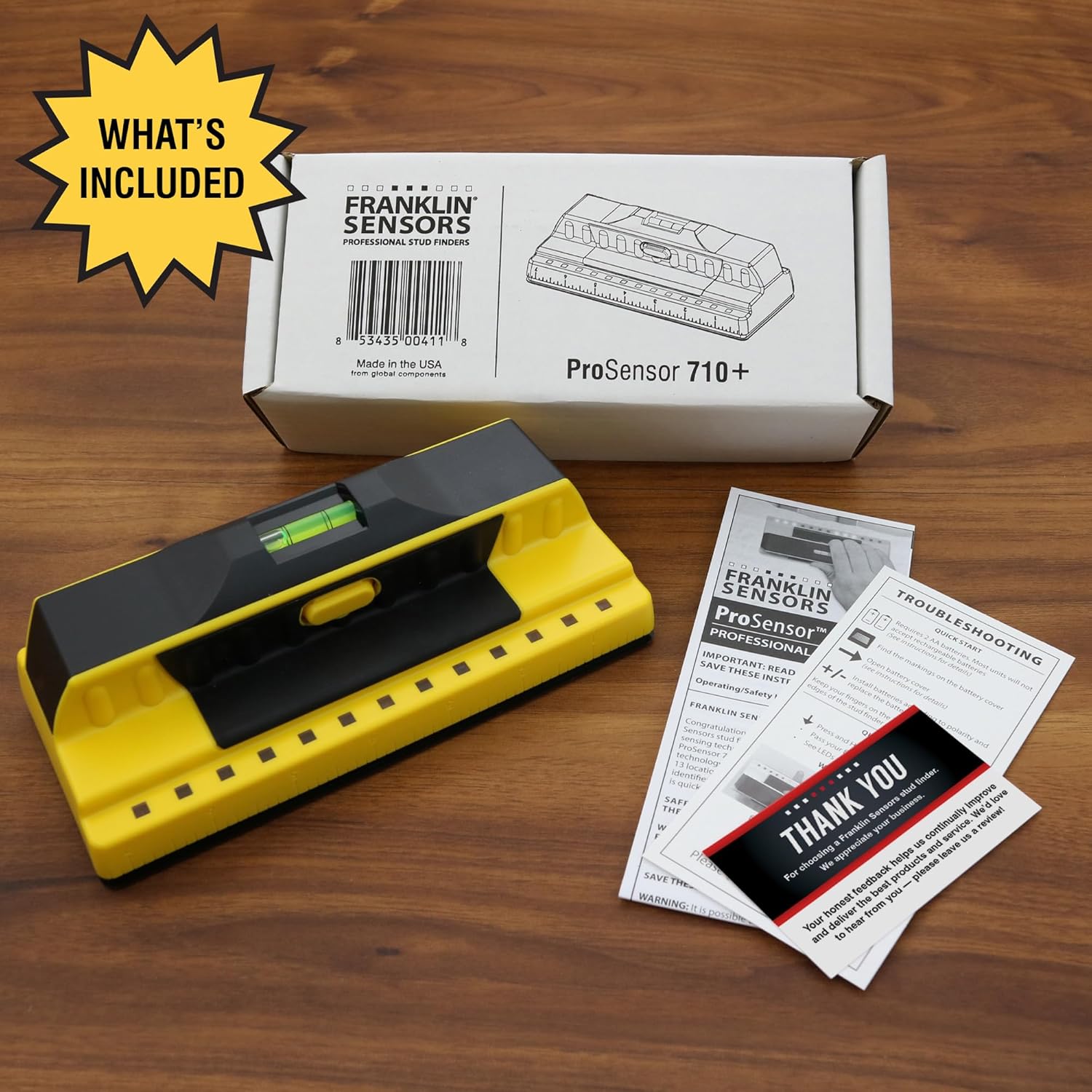

Figure 6: The product packaging, which includes a troubleshooting guide for common issues.

Specifications

Product Details

Warranty & Support

For warranty information and customer support, please refer to the official Franklin Sensors website or contact their customer service directly. User manuals are also available for download.

Official User Manual (PDF): Download Here
