ESBE France CRA111 Controller Motor User Manual

1. Introduction

This user manual provides essential information for the safe and efficient installation, operation, and maintenance of the ESBE France CRA111 Controller Motor. The CRA111 is designed to maintain a constant temperature in heating and cooling systems, ensuring optimal performance and energy efficiency. Please read this manual thoroughly before installation and operation.

2. Product Overview

The ESBE France CRA111 Controller Motor is a compact and robust unit engineered for precise temperature control. It features an intuitive interface for setting desired temperatures and comes equipped with a temperature probe for accurate measurement.

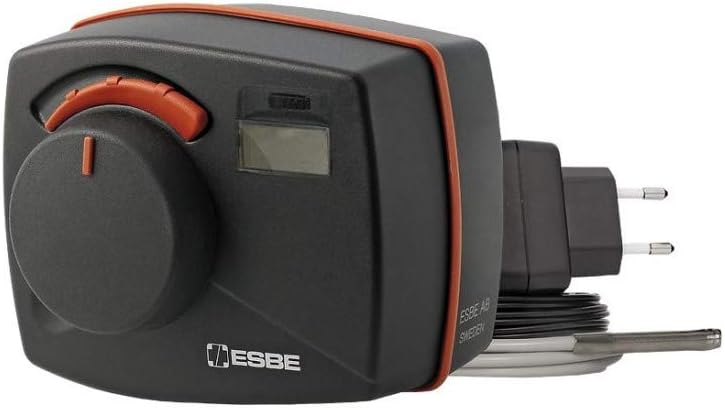

Figure 2.1: ESBE France CRA111 Controller Motor. This image displays the ESBE France CRA111 Controller Motor, a compact black unit featuring an orange control knob on the front. An integrated display screen is visible above the knob. The unit includes a power adapter with European-style pins and a temperature probe connected by a white cable, coiled neatly at the back. An orange band runs along the top and sides of the controller.

3. Setup and Installation

Proper installation is crucial for the optimal performance and longevity of your CRA111 Controller Motor. It is recommended that installation be performed by a qualified technician.

3.1. Unpacking

Carefully remove all components from the packaging. Verify that all parts are present:

• CRA111 Controller Motor unit
• Temperature probe with cable
• Power adapter
• Mounting hardware (if applicable)

3.2. Mounting

Mount the controller unit in a dry, accessible location, away from direct heat sources or excessive moisture. Ensure adequate ventilation around the unit.

3.3. Electrical Connection

1. Ensure the main power supply is disconnected before making any electrical connections.
2. Connect the power adapter to the controller unit.
3. Plug the power adapter into a suitable electrical outlet.

3.4. Probe Installation

Install the temperature probe in the designated location within your heating or cooling system, ensuring it accurately measures the temperature of the medium to be controlled. Refer to your system's specific installation guidelines for probe placement.

4. Operating Instructions

The CRA111 Controller Motor is designed for user-friendly operation.

4.1. Power On

Once connected to power, the unit will power on automatically. The display will show the current measured temperature.

4.2. Setting Desired Temperature

Use the orange control knob on the front of the unit to adjust the desired temperature. Rotate the knob clockwise to increase the temperature and counter-clockwise to decrease it. The display will show the set temperature as you adjust it, then revert to the current measured temperature after a few seconds.

4.3. Status Indicators

Observe the display and any indicator lights for operational status. Consult the display for error codes or operational messages.

5. Maintenance

Regular maintenance ensures the longevity and reliable operation of your CRA111 Controller Motor.

5.1. Cleaning

Wipe the exterior of the unit with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure no liquid enters the unit.

5.2. Periodic Checks

• Inspect the power cable and probe cable for any signs of damage or wear.
• Ensure the temperature probe is securely in place and free from debris.
• Verify that the display is functioning correctly and showing accurate readings.

6. Troubleshooting

If you encounter issues with your CRA111 Controller Motor, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact ESBE France customer support.

7. Specifications

8. Warranty and Support

ESBE France products are manufactured to high-quality standards. For information regarding warranty coverage and technical support, please refer to the official ESBE France website or contact your local distributor. Keep your purchase receipt as proof of purchase.
