1. Introduction
This manual provides essential information for the installation, operation, and maintenance of your Hydronix CB6 Carbon Block Water Filter Replacement. This 0.5 micron filter is designed to reduce chlorine taste and odor, improve filtration capabilities, and contribute to safer, cleaner drinking water. Please read these instructions carefully before use to ensure proper function and longevity of the product.
Image 1.1: The Hydronix CB6 Carbon Block Water Filter. This filter is designed for effective water purification.
2. Safety Information
Observe the following safety precautions to prevent injury or damage to the product:
- Always turn off the main water supply before installing or replacing the filter.
- Relieve water pressure in the system before opening the filter housing.
- Ensure all connections are secure to prevent leaks.
- Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
- Keep the filter away from direct sunlight and extreme temperatures.
- Dispose of used filters according to local regulations.
3. Product Overview
The Hydronix CB6 is a high-performance carbon block filter constructed with NSF certified material. It utilizes coconut shell carbon for effective filtration.
Key Features:
- 0.5 Micron Filtration: Effectively removes sediment and fine particles.
- Coconut Shell Carbon: Provides superior reduction of chlorine taste and odor.
- NSF Certified Material: Ensures quality and safety standards are met.
- 750 Gallon Capacity: Designed for extended use before replacement.
- Standard Fit: Compatible with various under-sink water filter systems.
Image 3.1: The CB6 filter, illustrating its threaded connection point for secure installation.

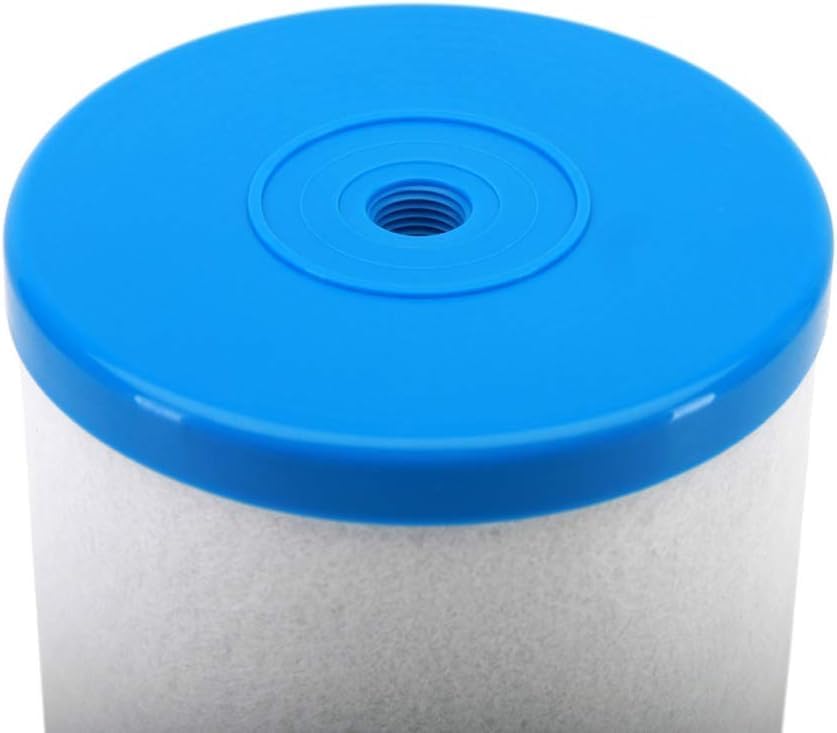

Image 3.2: A detailed view of the filter's threaded cap, designed for a precise fit into compatible housings.
4. Setup & Installation
Follow these steps to properly install your Hydronix CB6 Carbon Block Water Filter. It is recommended to refer to your specific filter system's manual for housing-specific instructions.
Installation Steps:
- Turn Off Water Supply: Locate the main water shut-off valve for your home or the specific valve for your under-sink water filter system and turn it off.
- Relieve Pressure: Open the filtered water faucet to release any remaining water pressure in the system. Allow water to drain until the flow stops.
- Remove Old Filter: Unscrew the filter housing sump using a filter wrench (if necessary). Carefully remove the old filter cartridge.
- Clean Housing: Clean the inside of the filter housing with warm, soapy water. Rinse thoroughly to remove any soap residue. Inspect the O-rings for cracks or wear and replace if necessary. Lubricate O-rings with a silicone-based lubricant if needed.
- Insert New Filter: Remove the new Hydronix CB6 filter from its packaging. Insert the new filter into the housing, ensuring it is centered and seated correctly. The threaded end should align with the housing's cap.
- Secure Housing: Carefully screw the filter housing sump back onto the cap. Caution: Ensure the threads are aligned properly to avoid cross-threading, which can damage the housing and cause leaks. Hand-tighten the sump, then use a filter wrench for an additional 1/4 to 1/2 turn to ensure a snug, leak-free seal. Do not overtighten.
- Restore Water Supply: Slowly turn on the main water supply valve. Check for any leaks around the filter housing. If leaks occur, turn off the water, relieve pressure, and re-tighten the housing.
- Flush System: Open the filtered water faucet and allow water to run for at least 10-15 minutes to flush out any carbon fines and trapped air. The water may appear cloudy or discolored initially; this is normal. Continue flushing until the water runs clear and any air bubbles subside.
Image 4.1: The Hydronix CB6 filter showing its approximate dimensions (6.8 inches / 17 cm in height), important for ensuring compatibility with your filter housing.
Image 4.2: An example of a clear water filter housing, which would contain the CB6 filter. Proper seating of the filter within the housing is crucial for effective filtration.
5. Operating Instructions
Once installed and flushed, your Hydronix CB6 filter is ready for use. The filter operates passively as water flows through your system.
- Initial Use: After flushing, the water should run clear and taste fresh.
- Daily Use: Use your filtered water as needed for drinking, cooking, and other purposes.
- Flow Rate: The filter may slightly reduce water flow compared to unfiltered water. A significant drop in flow rate may indicate the filter is nearing the end of its life or is clogged.
Image 5.1: Illustrates the use of filtered water for drinking, emphasizing the product's benefit of providing clean water.
6. Maintenance
Regular maintenance, primarily filter replacement, is crucial for optimal performance and water quality.
Filter Replacement:
- The Hydronix CB6 filter has a capacity of approximately 750 gallons.
- Replace the filter every 6-12 months, or sooner if you notice a significant decrease in water flow, a return of unpleasant tastes or odors, or if your water quality dictates more frequent changes.
- Refer to the "Setup & Installation" section for detailed steps on replacing the filter.
Note: Filter life can vary based on local water quality and usage volume.
7. Troubleshooting
If you encounter issues with your Hydronix CB6 filter, consult the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Slow Water Flow |
|
|
| Water Tastes or Smells Bad |
|
|
| Water is Cloudy or Has Air Bubbles |
|
|
| Leaks Around Housing |
|
|
8. Specifications
| Attribute | Detail |
|---|---|
| Model Number | HG-CB6/2 |
| Filtration Rating | 0.5 Micron |
| Material | Polypropylene (PP), Coconut Shell Carbon |
| Product Dimensions | 4.5"D x 4.5"W x 6.5"H (approx. 11.4 cm D x 11.4 cm W x 16.5 cm H) |
| Item Weight | 2 Pounds (approx. 0.91 kg) |
| Capacity | 750 Gallons |
| External Testing Certification | NSF Certified Material |
| Product Benefits | Reduces chlorine taste and odor, improves filtration capabilities, provides safer, cleaner, healthier drinking water. |
9. Warranty & Support
Hydronix products are manufactured to high standards. For specific warranty information regarding your filter or the system it is part of, please refer to the documentation provided with your complete water filtration system or contact Hydronix customer support.
Customer Support:
For technical assistance, troubleshooting, or questions about your Hydronix CB6 Carbon Block Water Filter, please visit the official Hydronix website or contact their customer service department. Contact details are typically available on the product packaging or the manufacturer's website.
Image 9.1: The Hydronix brand logo, representing the manufacturer of this water filter.
