TacPower Replacement Seal Gasket for Williams Sonoma Bread Machine Pan WS0401

1. Introduction

This manual provides instructions for the proper installation and maintenance of the TacPower replacement seal gasket for the Williams Sonoma Bread Machine Pan, specifically for model WS0401. This gasket is a critical component for maintaining the integrity of your bread machine pan, preventing leaks, and ensuring optimal performance during the bread-making process.

2. Important Information Before Installation

Before proceeding with the installation, it is crucial to verify that your bread machine pan is compatible with this replacement gasket. Please locate the brand name and model number of your bread machine. This information is typically found on an adhesive decal, ink stamp, or embedded impression on the outer exterior surface of your machine, often on the sides, bottom, or control panel.

Image 2.1: Example of an important notice regarding model identification.

Ensure your bread machine is a Williams Sonoma model WS0401. An example of a typical product label is shown below:

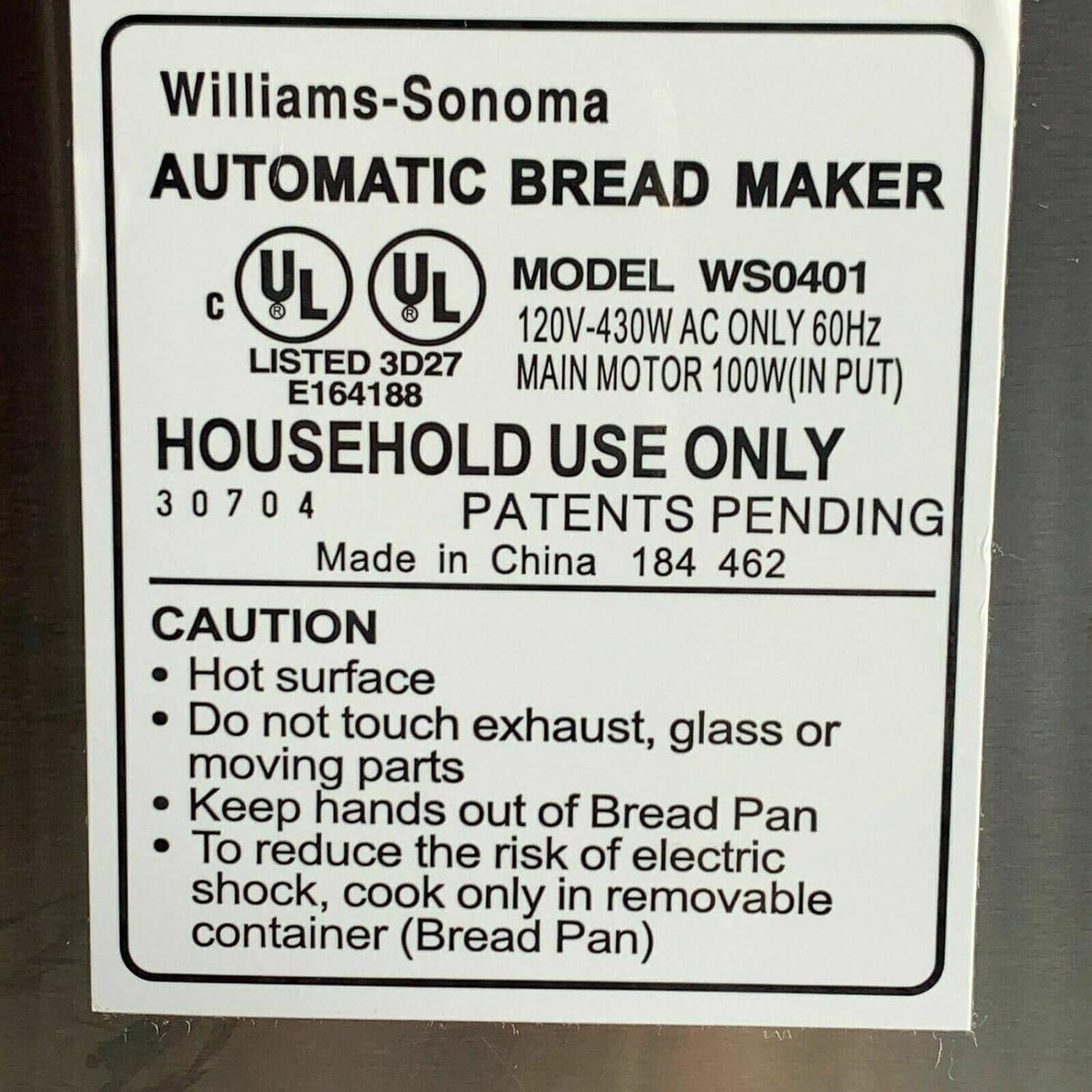

Image 2.2: Example of a Williams-Sonoma bread maker label showing model WS0401.

3. Setup and Installation

The replacement of the pan seal gasket requires careful handling. Ensure the bread machine is unplugged and completely cooled before beginning. The gasket is designed to fit around the drive shaft at the bottom of the bread pan.

3.1. Tools Required

• Small flat-head screwdriver (optional, for old gasket removal)
• Clean cloth

3.2. Gasket Overview

Image 3.1: Front view of the TacPower replacement seal gasket. This is the component you will be installing.

Image 3.2: Side view of the TacPower replacement seal gasket, showing its profile.

3.3. Installation Steps

1. Remove the Bread Pan: Carefully remove the bread pan from the bread machine.
2. Access the Old Gasket: Turn the bread pan upside down. The old gasket is typically located around the shaft where the kneading paddle attaches, on the exterior bottom of the pan.
3. Remove the Old Gasket: Gently pry out the old gasket. A small flat-head screwdriver can be used if necessary, but exercise caution to avoid scratching the pan or shaft. Dispose of the old gasket properly.
4. Clean the Area: Thoroughly clean the area where the gasket sits. Remove any bread residue, grease, or debris using a clean cloth. Ensure the surface is dry before installing the new gasket.
5. Install the New Gasket: Position the new TacPower replacement gasket over the shaft. Press it firmly and evenly into place until it is seated securely. Ensure it forms a tight seal around the shaft.
6. Verify Installation: Once installed, visually inspect the gasket to ensure it is flush and properly seated. The gasket should not be twisted or uneven.
7. Reinsert Bread Pan: Place the bread pan back into the bread machine.

4. Usage Considerations

The seal gasket is a passive component that ensures the bread pan retains liquids and ingredients during the mixing and baking cycles. Proper installation is key to its function.

• Always ensure the kneading paddle is correctly attached to the shaft after the gasket is installed.
• Avoid using abrasive cleaners or sharp objects near the gasket, as this can damage the seal.

5. Maintenance

Regular maintenance of the seal gasket will extend its lifespan and prevent issues.

• Cleaning: After each use, remove the bread pan and clean the area around the gasket. Use warm, soapy water and a soft cloth. Rinse thoroughly and dry completely before storage or next use.
• Inspection: Periodically inspect the gasket for signs of wear, cracking, or hardening. A worn gasket can lead to leaks. Replace the gasket if any damage is observed.

6. Troubleshooting

If you experience issues after replacing the gasket, consider the following:

• Leaking from the Pan: If liquid leaks from the bottom of the bread pan, the gasket may not be seated correctly, or it could be damaged. Re-check the installation, ensuring the gasket is flush and tight. If the issue persists, the gasket may be faulty or incompatible.
• Kneading Paddle Not Turning: While less common for a gasket issue, if the paddle shaft is obstructed or the gasket is improperly installed, it might impede the paddle's movement. Ensure the gasket does not interfere with the shaft's rotation.

7. Specifications

8. Warranty and Support

For warranty information or technical support regarding your TacPower replacement seal gasket, please refer to the seller's specific terms and conditions or contact the seller directly through your purchase platform. Keep your proof of purchase for any warranty claims.
