Holzstar HBS 473 Bandsaw 400 V User Manual

Model: HBS 473 | Voltage: 400 V

1. Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Holzstar HBS 473 Bandsaw. Please read this manual thoroughly before assembly, installation, or operation to ensure proper use and to prevent injury or damage to the machine. Keep this manual in a safe place for future reference.

2. Safety Instructions

Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury when operating power tools. This bandsaw operates on 400 Volts, requiring specific electrical safety considerations.

General Safety

  • Read the Manual: Understand all instructions and warnings before operating the machine.
  • Wear Personal Protective Equipment (PPE): Always wear safety glasses, hearing protection, and appropriate work gloves. Avoid loose clothing or jewelry that could get caught in moving parts.
  • Maintain a Clean Work Area: Cluttered areas invite accidents. Ensure adequate lighting.
  • Keep Children and Bystanders Away: Do not allow unauthorized persons near the machine during operation.
  • Secure Workpiece: Always use clamps or a vise to secure the material being cut. Never hold small pieces by hand.
  • Avoid Forcing the Tool: Let the blade do the work. Forcing can lead to blade breakage or loss of control.
  • Disconnect Power: Always disconnect the bandsaw from the power supply before changing blades, performing maintenance, or when leaving the machine unattended.
  • Inspect Before Use: Check for damaged parts, proper alignment, and any other condition that may affect operation. Replace damaged parts immediately.

Electrical Safety (400 V)

  • Professional Installation: Due to the 400 V requirement, electrical connection should only be performed by a qualified electrician in accordance with local electrical codes.
  • Proper Grounding: Ensure the machine is properly grounded to prevent electric shock.
  • Inspect Power Cord: Regularly check the power cord for damage. Do not use if the cord is frayed or damaged.
  • Avoid Wet Conditions: Never operate the bandsaw in damp or wet locations.

3. Product Overview

The Holzstar HBS 473 is a robust bandsaw designed for precise cutting of various materials including wood, metal, and plastic. Familiarize yourself with its main components.

Main Components

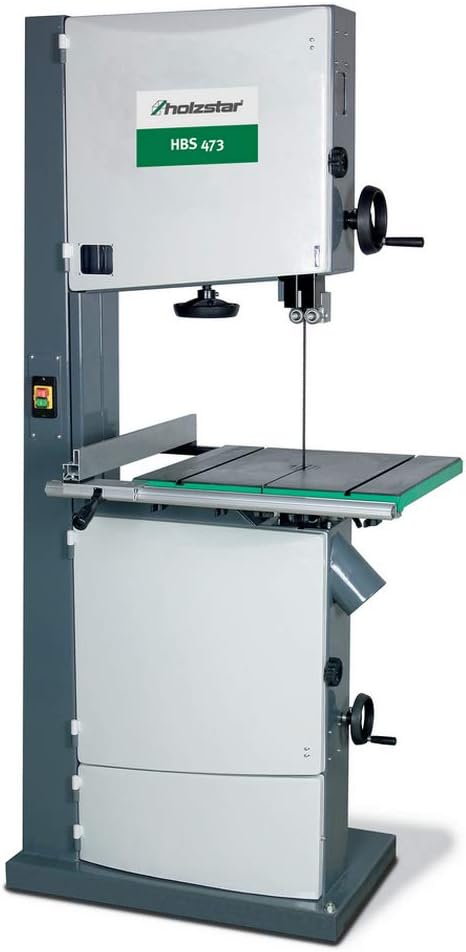

Holzstar HBS 473 Bandsaw overall view
Figure 1: Overall view of the Holzstar HBS 473 Bandsaw. This image displays the complete machine, including the main body, cutting table, blade guard, and control panel. Key components visible are the upper and lower wheel covers, the adjustable cutting table, and the emergency stop button.
  • Main Body: Houses the motor, wheels, and internal mechanisms.
  • Cutting Table: The surface where the workpiece rests during cutting, often adjustable for angle cuts.
  • Blade Guides: Support the blade and prevent twisting during operation.
  • Blade Tension Adjustment: Mechanism to set the correct tension for the saw blade.
  • Blade Guard: Protects the user from the moving blade.
  • On/Off Switch & Emergency Stop: Controls power to the machine and provides immediate shutdown.

Blade Guide System

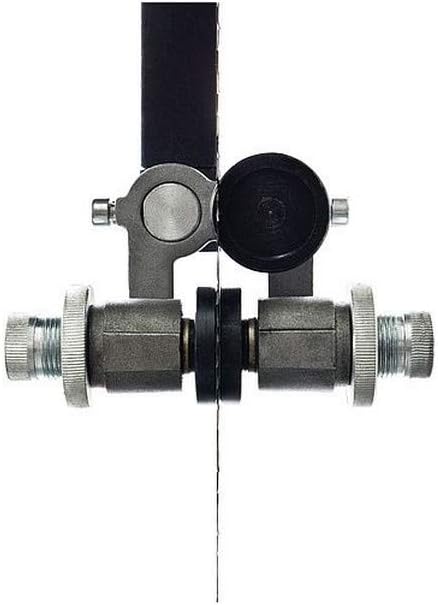

Holzstar HBS 473 Bandsaw blade guide detail
Figure 2: Close-up view of the blade guide system. This image highlights the precision components that support the saw blade, including the side guides and the thrust bearing, which prevent the blade from twisting and ensure straight cuts.

The blade guide system is crucial for accurate cutting and blade stability. It consists of side guides and a thrust bearing that support the blade from twisting and pushing back during a cut.

Blade Tensioning Mechanism

Holzstar HBS 473 Bandsaw wheel and tension indicator
Figure 3: Detail of the upper wheel and blade tension indicator. This view shows the large upper wheel that drives the blade, along with a visible tension scale or indicator, which is essential for setting the correct blade tension for optimal performance and safety.

Proper blade tension is vital for straight cuts and to prevent blade breakage. The tensioning mechanism, often located near the upper wheel, allows for precise adjustment.

4. Setup

Unpacking and Placement

  1. Carefully remove the bandsaw from its packaging. Inspect for any shipping damage.
  2. Place the bandsaw on a stable, level surface capable of supporting its weight. Ensure sufficient clearance around the machine for safe operation and material handling.
  3. Secure the machine to the workbench or floor if mounting points are available, to prevent tipping or movement during operation.

Electrical Connection

WARNING: This machine requires a 400 V electrical supply. Connection must be performed by a certified electrician.

  • Ensure the power supply matches the machine's requirements (400 V).
  • Verify that the electrical circuit is properly grounded and protected by an appropriate circuit breaker.
  • Do not use extension cords unless absolutely necessary, and only use heavy-duty cords rated for 400 V and the machine's current draw.

Blade Installation and Tensioning

  1. Disconnect the machine from the power supply.
  2. Open the wheel covers.
  3. Loosen the blade tension mechanism.
  4. Carefully install the blade, ensuring the teeth are pointing downwards towards the table.
  5. Center the blade on the wheels.
  6. Adjust the blade tension according to the blade width and material being cut, using the tension indicator (refer to Figure 3). A properly tensioned blade will deflect slightly when pressed with a finger.
  7. Adjust the blade guides (refer to Figure 2) so they are close to, but not touching, the blade sides, and the thrust bearing is just behind the blade's gullet.
  8. Close and secure the wheel covers.

5. Operating Instructions

Before Each Cut

  • Ensure all safety guards are in place and properly adjusted.
  • Verify the blade is correctly tensioned and the guides are set.
  • Adjust the upper blade guide assembly so it is approximately 1/4 inch (6 mm) above the workpiece.
  • Clear the work table of any debris or tools.
  • Wear appropriate PPE.

Making a Cut

  1. Turn on the bandsaw. Allow the blade to reach full speed before beginning the cut.
  2. Place the workpiece firmly on the cutting table. Use a fence or miter gauge for straight or angled cuts.
  3. Slowly feed the workpiece into the blade. Do not force the material. Maintain a steady, even pressure.
  4. Keep your hands clear of the blade path. Use a push stick for smaller pieces or when hands are close to the blade.
  5. Once the cut is complete, turn off the bandsaw and wait for the blade to come to a complete stop before removing the workpiece or clearing sawdust.

Cutting Different Materials

The HBS 473 is suitable for wood, metal, and plastic. Always select the correct blade type and tooth count for the material being cut. Adjust blade speed if your model offers this feature (check specifications).

  • Wood: Use carbon steel blades with appropriate tooth pitch for softwoods or hardwoods.
  • Metal: Use bi-metal blades. Slower blade speeds are generally required for metal cutting.
  • Plastic: Use fine-tooth blades. Avoid excessive heat buildup which can melt plastic.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your bandsaw. Always disconnect power before performing any maintenance.

Daily/After Use

  • Clean Dust and Debris: Use a brush or vacuum to remove sawdust and chips from the table, blade guides, and inside the wheel covers.
  • Inspect Blade: Check the blade for sharpness, cracks, or missing teeth. Replace dull or damaged blades immediately.
  • Check Blade Guides: Ensure guides are clean and properly adjusted.

Monthly/Periodically

  • Lubricate Moving Parts: Apply a light coat of machine oil to pivot points and adjustment mechanisms as recommended in the full product manual (if available).
  • Check Drive Belt: Inspect the drive belt for wear or cracks. Replace if necessary.
  • Inspect Electrical Cord: Check the power cord for any signs of damage or wear.
  • Table Alignment: Verify the cutting table is square to the blade (unless intentionally angled for a bevel cut).

7. Troubleshooting

ProblemPossible CauseSolution
Bandsaw does not startNo power supply; Emergency stop engaged; Faulty switch.Check power connection and circuit breaker; Disengage emergency stop; Consult a qualified technician for switch replacement.
Blade drifts or cuts inaccuratelyIncorrect blade tension; Worn or improperly adjusted blade guides; Dull blade; Incorrect blade type for material.Adjust blade tension; Clean and adjust blade guides; Replace blade; Select appropriate blade.
Excessive vibration or noiseLoose components; Worn drive belt; Unbalanced wheels; Blade not centered.Tighten all fasteners; Inspect and replace drive belt; Check blade centering on wheels; Consult service if wheels are unbalanced.
Blade breaks frequentlyOver-tensioned blade; Blade guides too tight; Forcing the cut; Incorrect blade type; Blade hitting workpiece too hard.Reduce blade tension slightly; Adjust blade guides; Reduce feed pressure; Use correct blade; Ensure smooth workpiece entry.

8. Specifications

The following are key technical specifications for the Holzstar HBS 473 Bandsaw:

  • Brand: Holzstar
  • Model Number: HBS 473
  • Manufacturer Reference: 5900473
  • Voltage: 400 Volts
  • Recommended Surface: Wood, Metal, Plastic
  • ASIN: B018GMCNJY
  • International Article Code: 04036351001577

9. Warranty and Support

Information regarding specific warranty terms for the Holzstar HBS 473 Bandsaw is not provided within the available product data. For warranty details, technical support, or spare parts availability, please contact your authorized Holzstar dealer or the manufacturer directly.

The product data indicates that information on spare parts availability is currently unavailable. It is recommended to contact the manufacturer or an authorized service center for any spare part inquiries.
