PHILIPS 9290020089
PHILIPS LED Lamp User Manual
Model: 9290020089
Introduction
Thank you for choosing the PHILIPS LED Lamp. This manual provides essential information for the safe and efficient use of your new LED lamp. Please read it thoroughly before installation and operation, and retain it for future reference.

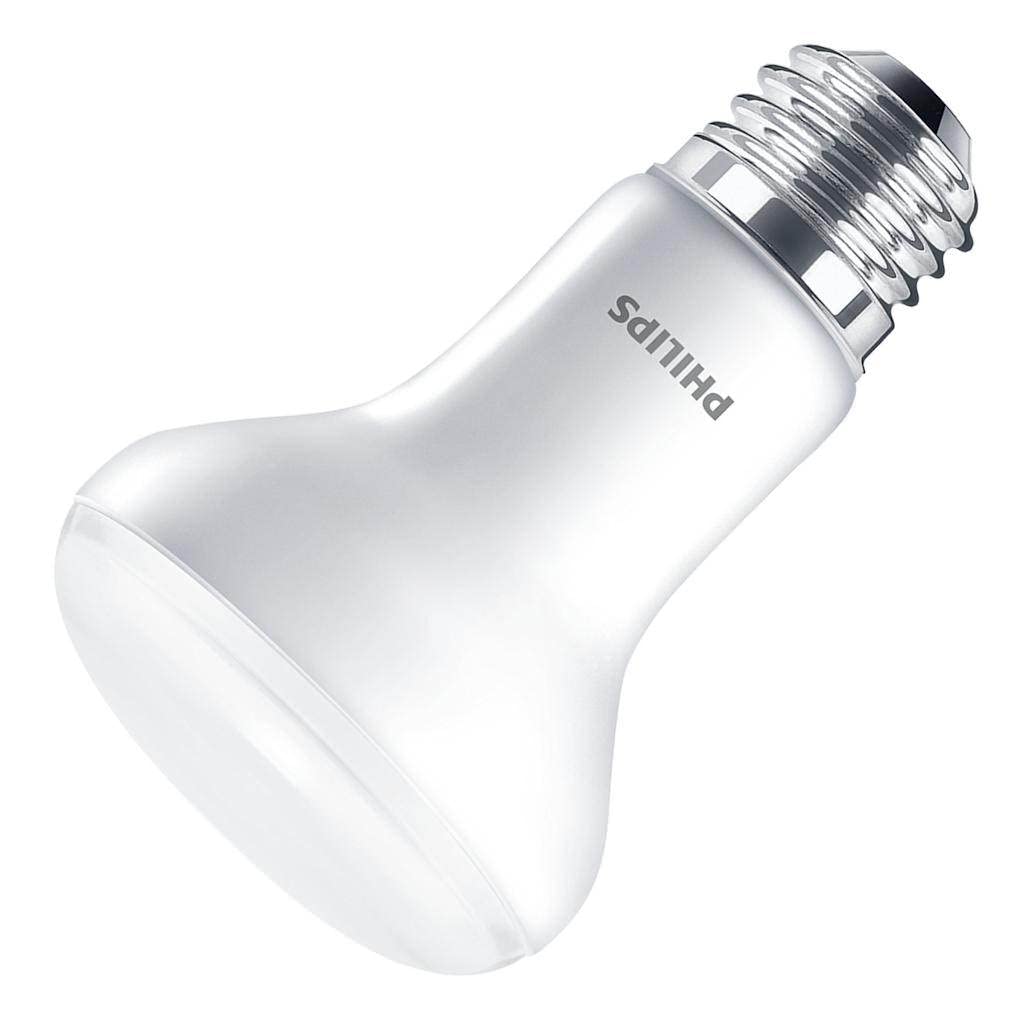

Image: A PHILIPS R20 LED Lamp, white with a standard E26 screw base. The bulb features a frosted dome and the PHILIPS logo is visible on the side.
Setup and Installation
Follow these steps for proper installation of your LED lamp:
- Safety First: Before installing or replacing any light bulb, ensure the power to the fixture is turned off at the circuit breaker or wall switch.
- Check Compatibility: Verify that your fixture has an E26 standard medium base and is suitable for indoor use. This lamp is designed for 120V circuits.
- Unpack: Carefully remove the LED lamp from its packaging. Avoid touching the glass portion directly with bare hands to prevent oil residue.
- Install: Screw the lamp firmly into the E26 base socket until snug. Do not overtighten.
- Restore Power: Turn on the power to the fixture. The lamp should illuminate instantly.
Important Note: This lamp is designed for Indoor Only usage and is not suitable for enclosed fixtures.
Operating Instructions
The PHILIPS LED Lamp is designed for simple operation.
- Power On/Off: Use the standard wall switch connected to the fixture to turn the lamp on or off.
- Dimming Functionality: This LED lamp is dimmable. When dimmed, it exhibits a "Warm Glow Effect," meaning the light color temperature shifts from 2700K (soft white) to 2200K (very warm white) as it is dimmed, providing a cozy ambiance. Ensure your dimmer switch is compatible with LED lighting for optimal performance.
- Light Output: The lamp provides 450 lumens of brightness, equivalent to a 45-watt incandescent R20 bulb.
Maintenance
The PHILIPS LED Lamp requires minimal maintenance due to its long lifespan.
- Cleaning: Before cleaning, ensure the lamp is off and cool. Wipe the lamp with a soft, dry cloth. Do not use liquid or abrasive cleaners.
- Replacement: This LED lamp has an average life of 25,000 hours, or approximately 13.7 years based on 3 hours of daily use. Replacement is only necessary at the end of its operational life.
Troubleshooting
If you encounter issues with your PHILIPS LED Lamp, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not light up. | No power to the fixture, loose connection, or lamp has reached end of life. | Check circuit breaker and wall switch. Ensure lamp is screwed in tightly. If lamp is old, consider replacement. |
| Lamp flickers or dims inconsistently. | Incompatible dimmer switch or unstable power supply. | Ensure your dimmer is LED-compatible. Consult an electrician if power supply issues are suspected. |
| Light color is not as expected. | Dimmer setting or perception. | Remember the "Warm Glow Effect" - the color temperature changes with dimming. At full brightness, it is 2700K. |
Specifications
Detailed technical specifications for the PHILIPS LED Lamp (Model: 9290020089):
- Model Number: 9290020089
- Bulb Type: LED Reflector Lamp
- Bulb Shape: R20
- Base Type: E26 (Medium Screw)
- Wattage: 6.0 Watts
- Wattage Equivalency: 50W Halogen / 45W Incandescent
- Voltage: 120V
- Brightness (Lumens): 450 lumens
- Color Temperature: 2700K (Soft White) to 2200K (Very Warm White) - Dim to Warm
- Color Rendering Index (CRI): 80
- Dimmable: Yes
- Average Rated Life: 25,000 hours (13.7 years based on 3 hrs/day)
- Operating Temperature Range: -4°F to 113°F (-20°C to 45°C)
- Light Distribution: Flood
- Indoor/Outdoor Usage: Indoor Only
- For Enclosed Fixtures: No
- Energy Star Compliant: Yes
- Estimated Energy Cost: $0.61 per year (based on 3 hrs/day, 11 cents/kWh)
- Product Dimensions: 3.8 x 2.6 x 2.4 inches
- Weight: 1.76 ounces
- Certifications: C/UL/US listed
Warranty Information
This PHILIPS LED Lamp comes with a 5-year limited warranty from the manufacturer. For full warranty details and restrictions, especially for professional, industrial, or commercial applications, please visit the official PHILIPS website:
Customer Support
For questions, comments, or technical assistance regarding your PHILIPS LED Lamp, please contact customer support:
- Phone: 1-800-555-0050
- Website: www.philips.com/lighting
