1. Introduction
Thank you for choosing USCAMEL 10x42 Binoculars. These professional-grade binoculars are engineered to provide a superior viewing experience with 10x magnification and a 42mm objective lens, offering a wide field of view (305ft/1000yds). They are suitable for a variety of outdoor activities including bird watching, safari sightseeing, travel, concerts, wildlife observation, and sports events. This manual will guide you through the setup, operation, and maintenance of your new binoculars to ensure optimal performance and longevity.
2. Package Contents
Upon opening your USCAMEL 10x42 Binoculars package, please verify that all the following items are included:
- USCAMEL 10x42 Binoculars
- Soft Carrying Case
- Neck Strap
- Rubber Eyepiece Covers
- Objective Lens Covers
- Lens Cleaning Cloths (2 pieces)
- Instruction Manual
3. Product Features
The USCAMEL 10x42 Binoculars are equipped with advanced features for enhanced performance:
- 10x Magnification & 42mm Objective Lens: Provides powerful 10x magnification and a large 42mm objective lens for bright, clear images and a wide field of view (305ft/1000yds).
- 18mm Large Eyepiece & Upward Rotating Eyecups: Features an 18mm large eyepiece for a clearer, brighter image. The eyecups can be rotated upwards to adjust the viewing distance, providing comfortable viewing for all users, including those wearing glasses.

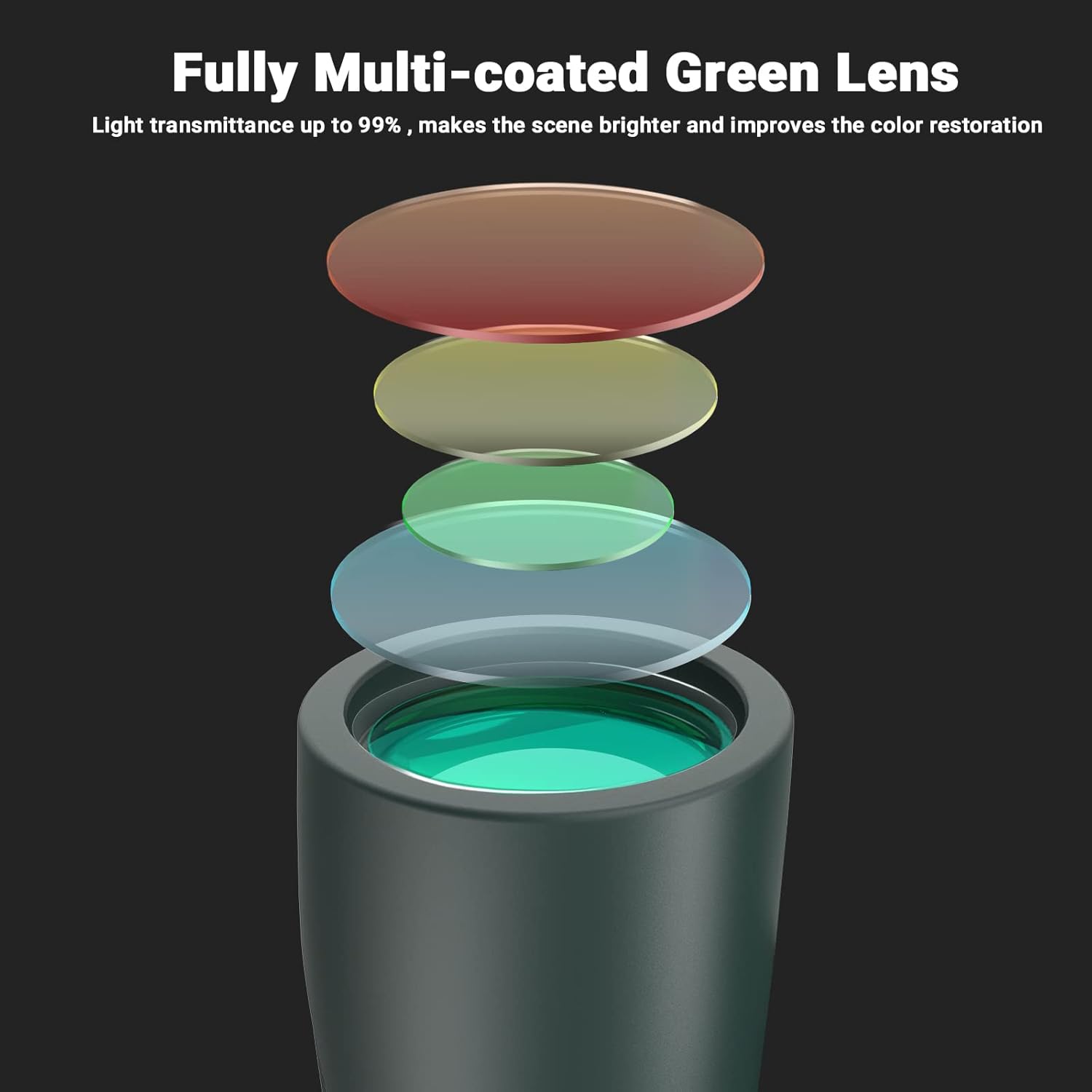

- High Quality FMC Optics & BAK4 Prism: Utilizes Fully Multi-Coated (FMC) lenses and premium BAK4 prisms to ensure maximum light transmission, resulting in bright, sharp, and color-accurate images.
- Sturdy, Comfortable, and Waterproof Design: Constructed with an anti-slip frame and durable rubber armor for shock absorption and a comfortable grip. The IPX7 waterproof and non-slip design makes these binoculars suitable for various weather conditions.
4. Setup
Before using your binoculars, follow these steps for initial setup:
- Unpack: Carefully remove all components from the packaging.
- Attach Neck Strap: Securely attach the provided neck strap to the strap loops on the binoculars. This helps prevent accidental drops.
- Remove Lens Covers: Remove the objective lens covers from the front and the eyepiece covers from the rear.
- Adjust Eyecups: Rotate the eyecups upwards or downwards to achieve the optimal eye relief. If you wear glasses, you may prefer to keep the eyecups down.
5. Operating Instructions
To use your USCAMEL 10x42 Binoculars effectively, follow these operating procedures:
- Adjust Interpupillary Distance: Hold the binoculars with both hands and look through the eyepieces. Adjust the distance between the two barrels by gently pushing them closer or pulling them further apart until you see a single, clear circular field of view.
- Focusing:
- Close your right eye and focus on a distant object using the central focus knob until the image in your left eye is sharp.
- Open your right eye and close your left eye. Use the diopter adjustment ring (usually on the right eyepiece) to focus the image in your right eye until it is sharp.
- Now, with both eyes open, the binoculars are adjusted to your vision. For subsequent viewing, only use the central focus knob to adjust for different distances.
- Viewing: Once focused, aim the binoculars at your desired subject. The wide field of view and 10x magnification will bring distant objects into clear view.
Video 5.1: A detailed review showcasing the features and performance of the USCAMEL 10x42 Binoculars, including their focus capabilities and accessories.
6. Maintenance
Proper care and maintenance will extend the life of your binoculars:
- Cleaning Lenses: Use the provided soft cleaning cloths to gently wipe the lenses. For stubborn smudges, a small amount of lens cleaning fluid designed for optics can be applied to the cloth, not directly to the lens.
- Cleaning Body: Wipe the body of the binoculars with a soft, damp cloth. Avoid harsh chemicals or abrasive materials.
- Storage: When not in use, always replace the eyepiece and objective lens covers to protect the optics from dust and scratches. Store the binoculars in their soft carrying case in a cool, dry place.
- Water Exposure: While IPX7 waterproof, avoid prolonged submersion. If exposed to water, wipe dry immediately.
7. Troubleshooting
If you encounter any issues with your binoculars, try the following:
| Problem | Possible Cause | Solution |
|---|---|---|
| Blurred Image | Incorrect focus or diopter setting. | Re-adjust the central focus knob and diopter ring as per operating instructions. |
| Double Image / Two Circles | Interpupillary distance is not correctly set. | Adjust the distance between the barrels until a single circular field of view is observed. |
| Dark or Dim Image | Lens covers still on, dirty lenses, or low light conditions. | Ensure lens covers are removed. Clean lenses. Use in appropriate lighting. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | UW035 |
| Magnification | 10x |
| Objective Lens Diameter | 42 mm |
| Field of View | 305 ft / 1000 yds |
| Eyepiece Diameter | 18 mm |
| Prism Type | BAK4 |
| Lens Coating | FMC (Fully Multi-Coated) |
| Waterproof Rating | IPX7 |
| Product Dimensions | 6.18 x 5.04 x 0.1 inches |
| Item Weight | 1.5 pounds |
9. Warranty & Support
USCAMEL is committed to providing high-quality optical products. For any questions, concerns, or support needs regarding your binoculars, please contact USCAMEL customer service through the retailer's platform or visit the official USCAMEL store for more information. Keep your purchase receipt for warranty claims.
