1. Introduction
This manual provides essential instructions for the proper installation, maintenance, and care of your Shimano XT SL-M780-B-I and SLX SL-M670-B-I I-Spec Shift Bolt and Nut Unit. Adhering to these guidelines will ensure optimal performance and longevity of the component. Please read this manual thoroughly before attempting any installation or maintenance.
2. Product Overview
The Shimano I-Spec Shift Bolt and Nut Unit is a replacement or spare part designed for specific Shimano XT (SL-M780-B-I) and SLX (SL-M670-B-I) mountain bike shifters. This unit facilitates the secure attachment of the shifter to compatible brake levers, creating an integrated cockpit setup. The components are constructed from durable aluminum, ensuring reliability in various riding conditions.

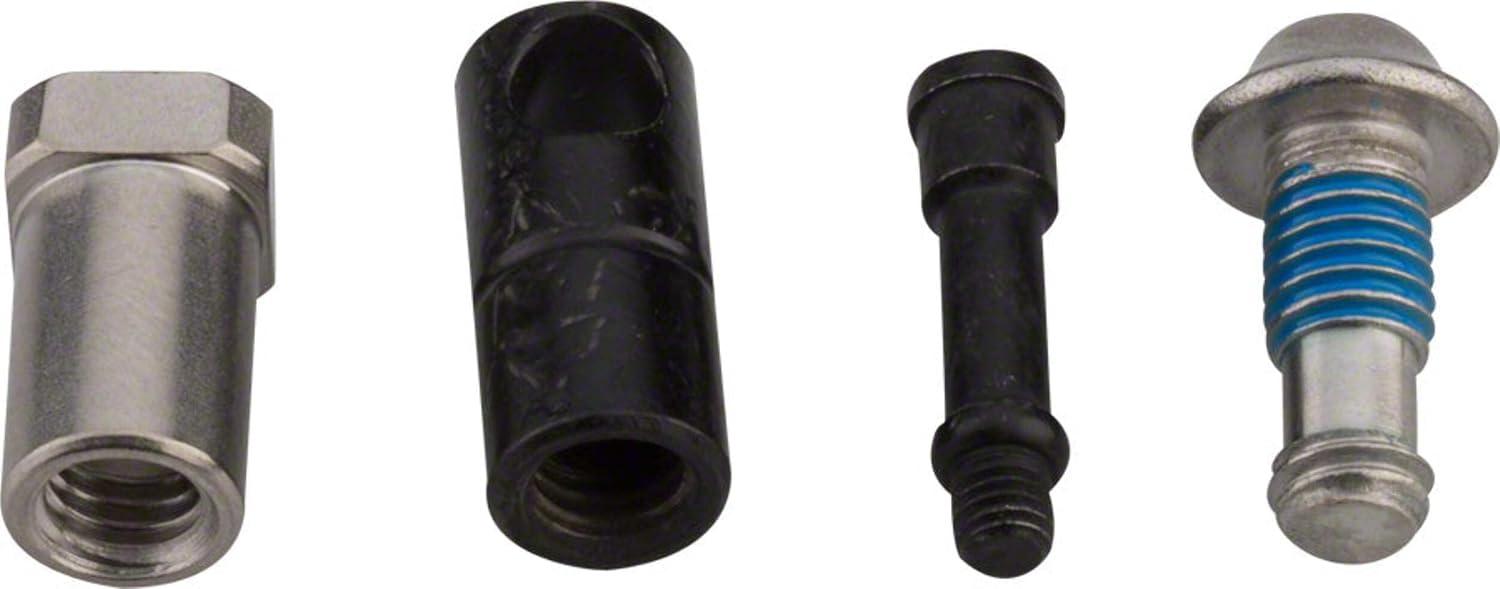

Figure 1: The Shimano I-Spec Shift Bolt and Nut Unit components. This image displays the four individual parts of the unit: a silver hexagonal nut, a black cylindrical sleeve, a black threaded pin, and a silver bolt with a blue thread-locking compound.
3. Setup and Installation
Proper installation is critical for the safe and effective operation of your I-Spec shifter. It is recommended that installation be performed by a qualified bicycle mechanic if you are unfamiliar with bicycle component assembly.
3.1 Required Tools
- Appropriate Allen key or wrench for the bolt head.
- Torque wrench (recommended for precise tightening).
- Grease (optional, for threads if not pre-applied with thread locker).
3.2 Installation Procedure
- Identify Components: Ensure you have all parts of the bolt and nut unit as shown in Figure 1.
- Compatibility Check: Verify that your Shimano XT SL-M780-B-I or SLX SL-M670-B-I shifter and compatible brake lever are designed for I-Spec integration.
- Position Shifter: Align the shifter body with the designated mounting point on the brake lever.
- Insert Bolt: Carefully insert the bolt through the shifter body and into the corresponding hole on the brake lever.
- Secure Nut: Thread the nut onto the bolt from the opposite side. Ensure it engages smoothly.
- Tighten: Using the appropriate tool, tighten the bolt. Refer to your shifter's specific manual for the recommended torque specifications. Overtightening can damage components, while undertightening can lead to loosening during use.
- Final Check: After tightening, ensure the shifter is securely attached to the brake lever and does not exhibit any play. Test the shifter's function to confirm proper operation.
Note: Some bolts may come with a pre-applied thread-locking compound (visible as blue on the threads in Figure 1). If your bolt does not have this, consider applying a small amount of removable thread locker for added security, especially if riding in high-vibration environments.
4. Operating Considerations
Once installed, the bolt and nut unit functions as a fixed attachment point. Its primary role is to maintain the structural integrity of the I-Spec integrated shifter and brake lever system. No specific operational steps are required for the bolt and nut itself beyond ensuring its secure installation.
- Regularly inspect the bolt and nut for any signs of loosening or damage.
- Ensure the shifter remains firmly attached to the brake lever during use.
5. Maintenance
Minimal maintenance is required for the bolt and nut unit itself, but periodic checks are recommended as part of overall bicycle maintenance.
- Periodic Inspection: Before each ride, or at least weekly, visually inspect the bolt and nut for any signs of corrosion, cracks, or loosening.
- Tightness Check: Periodically check the tightness of the bolt using an appropriate tool. If it feels loose, tighten it to the manufacturer's recommended torque specification.
- Cleaning: Keep the area around the bolt and nut clean from dirt and debris. Use a damp cloth to wipe down the components. Avoid harsh chemicals that could damage the finish or thread locker.
- Replacement: If the bolt or nut shows signs of significant wear, damage, or stripped threads, replace the entire unit with a genuine Shimano replacement part.
6. Troubleshooting
This section addresses common issues related to the I-Spec Shift Bolt and Nut Unit.
| Problem | Possible Cause | Solution |
|---|---|---|
| Shifter feels loose on brake lever. | Bolt is not sufficiently tightened. | Tighten the bolt to the recommended torque specification. |
| Bolt or nut threads are stripped. | Overtightening or cross-threading during installation. | Replace the entire bolt and nut unit. Do not attempt to reuse stripped components. |
| Shifter cannot be securely attached. | Incompatible shifter or brake lever, or missing component. | Verify compatibility of all components. Ensure all parts of the bolt and nut unit are present and correctly oriented. |
7. Specifications
| Feature | Detail |
|---|---|
| Brand | SHIMANO |
| Model Name | Y6UV98090 |
| Compatible Shifters | Shimano XT SL-M780-B-I, Shimano SLX SL-M670-B-I (I-Spec compatible) |
| Material | Aluminum |
| Color | Silver (bolt/nut), Black (sleeve/pin) |
| Item Weight | Approximately 0.02 Pounds (9 grams) |
| Included Components | Mountain Shifter Part (Bolt and Nut Unit) |
| UPC | 689228321694 |
8. Warranty and Support
For specific warranty information regarding this Shimano product, please refer to the documentation provided with your original shifter or contact your authorized Shimano dealer or the retailer from whom the product was purchased. Shimano's official website may also provide general warranty terms.
For further technical support or inquiries, please visit the official SHIMANO store or contact their customer service department.
