ZEROPORT JAPAN Lens Hood EW-63C and 58mm Red Filter Set User Manual

1. Introduction

This manual provides instructions for the ZEROPORT JAPAN Lens Hood EW-63C and 58mm Red Protection Filter Set. This accessory set is designed for use with the Canon EOS Kiss X7 DSLR camera, specifically with the EF-S18-55mm F3.5-5.6 IS STM lens. The lens hood helps to prevent unwanted stray light from entering the lens, reducing flare and ghosting, while the protection filter safeguards your lens from dust, scratches, and impacts.

Image 1.1: The ZEROPORT JAPAN EW-63C lens hood and 58mm red protection filter, shown separately.

2. Product Components

The ZEROPORT JAPAN Lens Hood EW-63C and 58mm Red Filter Set includes the following items:

• EW-63C Lens Hood: A petal-shaped lens hood designed to block stray light.
• 58mm Red Protection Filter: A multi-coated protective filter with a red aluminum frame, designed to fit 58mm lens threads.

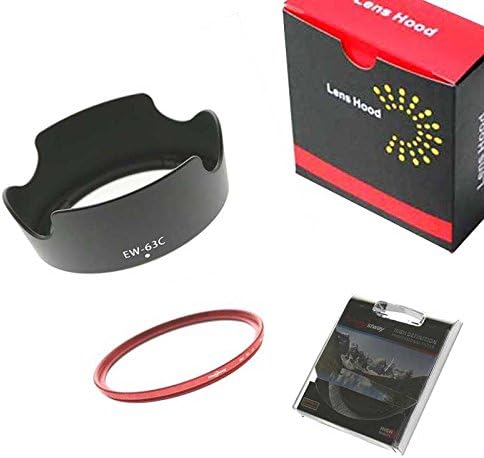

Image 2.1: The lens hood and filter, along with their retail packaging.

3. Compatibility

This accessory set is specifically designed for the following camera and lens combination:

• Camera Model: Canon EOS Kiss X7 (also known as Canon EOS Rebel SL1 or Canon EOS 100D in some regions)
• Compatible Lens: Canon EF-S18-55mm F3.5-5.6 IS STM

Important: Ensure your lens is the EF-S18-55mm F3.5-5.6 IS STM model. This set may not be compatible with other lenses or camera models, even if they are Canon EOS Kiss X7 variants with different kit lenses.

Image 3.1: Visual representation of the lens hood and filter designed for the Canon EOS Kiss X7 with the EF-S18-55mm lens.

4. Setup and Installation

4.1. Attaching the 58mm Red Protection Filter

1. Ensure your camera lens is clean and free of dust.
2. Carefully align the threads of the 58mm protection filter with the filter threads on the front of your EF-S18-55mm F3.5-5.6 IS STM lens.
3. Gently rotate the filter clockwise until it is securely fastened. Do not overtighten.

Image 4.1: A close-up view of the 58mm red protection filter, highlighting its multi-coated surface and red frame.

4.2. Attaching the EW-63C Lens Hood

The EW-63C lens hood attaches to the front of the lens, typically over the filter if one is installed.

1. Locate the mounting points on the front of your EF-S18-55mm F3.5-5.6 IS STM lens (or on the front of the attached filter).
2. Align the lens hood with these mounting points. The petal shape should be oriented correctly (usually with the wider petals at the top and bottom when the camera is held horizontally).
3. Gently push and twist the lens hood clockwise until it clicks into place. Do not force it.
4. To remove, press the release button (if present on your lens/hood) and twist counter-clockwise.

5. Operating Instructions

5.1. Benefits of the Lens Hood

The primary function of the EW-63C lens hood is to prevent stray light from entering the lens. This is particularly useful in situations where light sources are outside the frame but can still cause unwanted effects. Benefits include:

• Reduced Lens Flare: Minimizes bright spots or streaks caused by direct light hitting the lens elements.
• Reduced Ghosting: Decreases internal reflections that can appear as faint, secondary images.
• Improved Contrast and Color Saturation: By blocking stray light, the lens can capture images with better contrast and more vibrant colors.
• Physical Protection: Provides an additional layer of protection for the front element of your lens against accidental bumps or impacts.

Image 5.1: Comparison demonstrating the effect of a lens hood in reducing flare and improving image quality. The "After" image shows reduced glare and enhanced clarity.

5.2. Benefits of the Protection Filter

The 58mm Red Protection Filter serves as a clear barrier for your lens:

• Lens Protection: Shields the front lens element from dust, dirt, moisture, fingerprints, and accidental scratches or impacts.
• Easy Cleaning: It is easier and safer to clean the filter than the delicate front element of your lens.

6. Maintenance and Care

6.1. Cleaning the Lens Hood

The lens hood can be cleaned with a soft, damp cloth. For stubborn dirt, a mild soap solution can be used, followed by rinsing and thorough drying. Avoid abrasive cleaners.

6.2. Cleaning the Protection Filter

To clean the filter, use a lens blower to remove loose dust, then a soft lens brush. For smudges or fingerprints, use a clean microfiber lens cloth and a small amount of lens cleaning solution. Apply the solution to the cloth, not directly to the filter. Wipe gently in a circular motion.

6.3. Storage

When not in use, store the lens hood and filter in a clean, dry place, away from extreme temperatures and humidity. The lens hood can often be reversed and mounted on the lens for compact storage.

7. Troubleshooting

• Lens Hood Does Not Attach:
  • Ensure you are using the correct lens (Canon EF-S18-55mm F3.5-5.6 IS STM).
  • Verify the lens hood is correctly aligned with the mounting points.
  • Check for any obstructions on the lens or hood mounting area.
• Filter Does Not Screw On:
  • Ensure the filter size is 58mm and your lens has 58mm filter threads.
  • Carefully align the threads to avoid cross-threading. Do not force the filter.
  • Check for any damage to the filter threads or lens threads.
• Vignetting (Dark Corners) Appears in Photos:
  • This is unlikely with a correctly designed hood for the specified lens. However, if it occurs, ensure the lens hood is fully and correctly attached.
  • Vignetting can sometimes occur at wider focal lengths with certain filter/hood combinations, though this set is designed for compatibility.

8. Specifications

9. Warranty and Support

For warranty information and customer support, please refer to the documentation included with your purchase or contact ZEROPORT JAPAN directly through their official channels. Keep your proof of purchase for any warranty claims.
