Kootek Music Stand Light DL05 Instruction Manual

Introduction

The Kootek Music Stand Light DL05 is a versatile, portable lighting solution designed for various applications including music stands, book reading, and general task lighting. It features eye-caring LED technology, a flexible gooseneck for optimal positioning, and a USB rechargeable battery for cordless operation.

Image: Kootek Music Stand Light in use, providing illumination for sheet music on a piano.

What's in the Box

• Music Stand Light ×1
• USB Cable ×1
• Adapter x 1
• User Manual ×1

Features

• Enhanced Lighting Coverage: Equipped with 10 powerful LED bulbs, this music stand light provides a brilliant and evenly distributed glow, ensuring clear visibility across all pages of your sheet music, including the edges.
• Effortless Control: Enjoy simplicity at its finest with our one-button control feature. Easily power on/off and switch between two brightness levels, all at the touch of a conveniently located button behind the light, offering hassle-free operability.
• Long-lasting Battery Performance: With an impressive 2000mAh capacity, enjoy over 5 hours of intense brightness on high mode and more than 12 hours on low mode, ensuring uninterrupted illumination during your practice or performance.
• Clip-on & Stand-alone Music Stand Light: Featuring a clamp that opens up to 1 inch (26mm), this music stand light securely attaches to music stands and offers stable placement on piano music desks. The anti-slip soft pads within the clips prevent scratching or damage to surfaces, making it suitable for various settings such as music stands, pianos, orchestra pits, desks, tables, and dimly lit clubs. Whether for stage performances or focused study sessions, this desk lamp serves as an ideal lighting solution.
• On-the-Go Piano Light: Experience portability like never before. Lightweight and easy to carry, take your light with you wherever you go, perfect for travelers and busy professionals alike. (Note: For optimal performance, avoid using the light while charging to prevent damage to the AC adapter and prolong its lifespan.)

Setup

Attaching the Light

1. Identify a suitable surface for attachment, such as a music stand, piano desk, or table edge. The clamp opens up to 1 inch (26mm).
2. Press the lever on the clamp to open it.
3. Position the clamp securely onto the desired surface, ensuring the anti-slip pads make contact to prevent scratches and provide stability.
4. Release the lever to secure the light in place.

Image: The Kootek Music Stand Light's clamp mechanism, designed for secure attachment to various surfaces.

Stand-Alone Use

The sturdy base of the clamp allows the light to stand independently on flat surfaces such as desks or tables. Ensure the gooseneck is positioned to maintain balance.

Image: The Kootek Music Stand Light used as a stand-alone desk lamp.

Operating Instructions

Power On/Off and Brightness Adjustment

1. Locate the single control button positioned behind the light head.
2. Press the button once to turn the light on to the high brightness level.
3. Press the button a second time to switch to the low brightness level.
4. Press the button a third time to turn the light off.

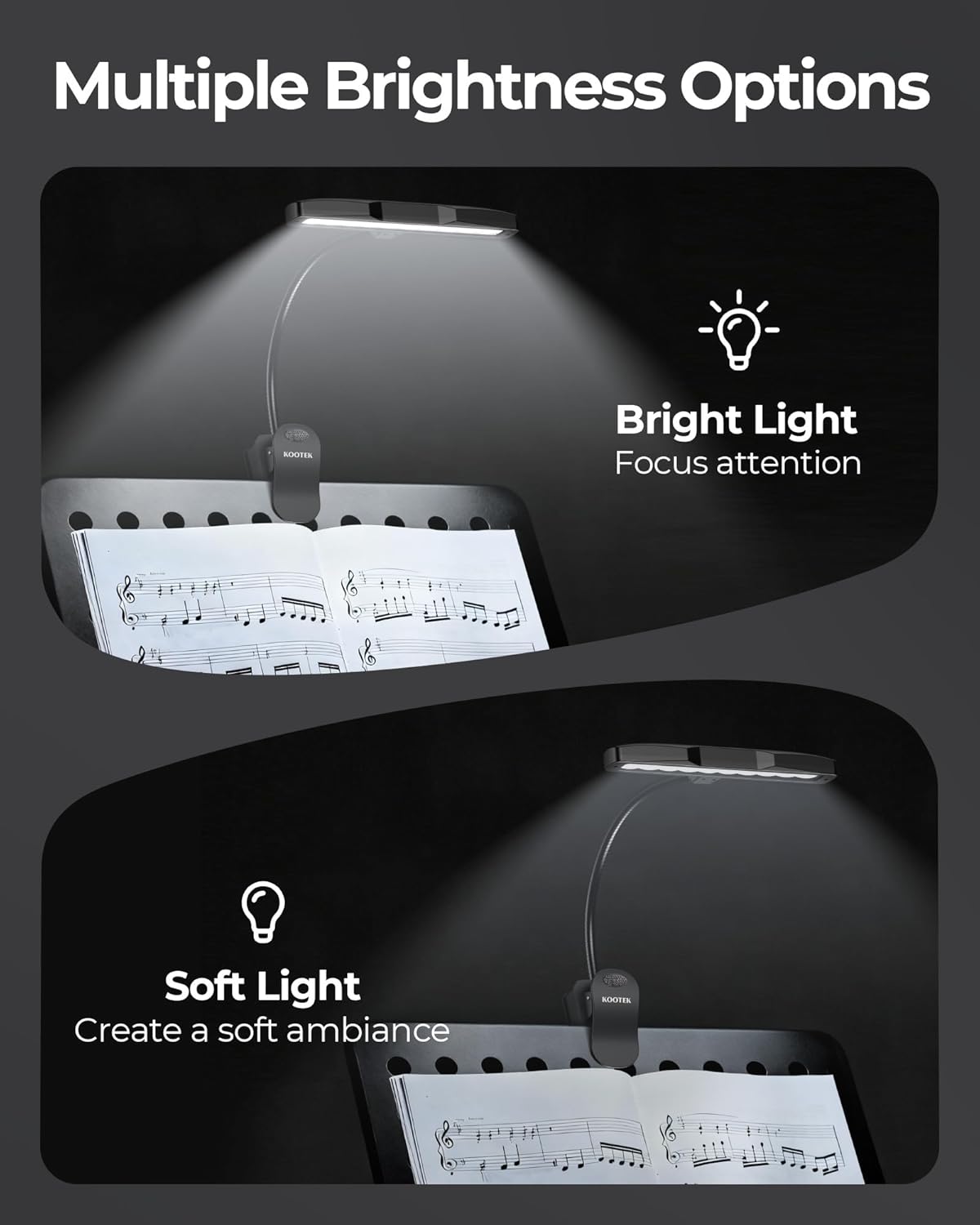

Image: Illustration of the two available brightness levels for the Kootek Music Stand Light.

Adjusting the Gooseneck

The light features a 360° flexible gooseneck. Gently bend and twist the gooseneck to position the light head at the desired angle and height for optimal illumination.

Image: The flexible gooseneck allows for 360-degree adjustment of the light head.

Charging

The Kootek Music Stand Light is equipped with a 2000mAh rechargeable battery. Use the provided USB cable and adapter to charge the device.

1. Connect the small end of the USB cable to the charging port on the light's base.
2. Connect the larger USB end to the provided AC adapter or any standard USB power source (e.g., computer USB port, power bank).
3. A charging indicator light will typically illuminate during charging and change color or turn off when fully charged.
4. A full charge provides over 5 hours of light on high mode and more than 12 hours on low mode.

Important Note: For optimal performance and to prolong battery lifespan, avoid using the light while it is charging.

Image: The light's base with the USB charging port visible.

Maintenance

• Cleaning: Wipe the light with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Storage: Store the light in a cool, dry place when not in use for extended periods.
• Battery Care: To maintain battery health, avoid fully discharging the battery frequently. Recharge the light when the brightness noticeably diminishes.

Troubleshooting

• Light does not turn on: Ensure the battery is charged. Connect the light to a power source using the USB cable and adapter.
• Light is dim: The battery may be low. Recharge the light.
• Light does not charge: Check if the USB cable and adapter are properly connected and functioning. Try a different USB port or adapter if available.
• Light is unstable when standing: Ensure the gooseneck is adjusted to balance the weight of the light head over the base. For maximum stability, use the clamp feature.

Specifications

Official Product Video

Warranty & Support

For warranty information and customer support, please refer to the contact details provided in your product packaging or visit the official Kootek website. Keep your purchase receipt for any warranty claims.
