Gretsch G9201 Honey Dipper Metal Resonator Guitar Instruction Manual

1. Product Overview

The Gretsch G9201 Honey Dipper is a metal-bodied resonator guitar designed to produce distinct, resonant tones. It features a nickel-plated brass body, a round neck with a medium 'V' shape, and a brass body biscuit cone. This instrument is suitable for various musical styles, particularly those requiring a characteristic resonator sound.

Key Features:

• Body: Bell Brass, Nickel Plated
• Neck: Mahogany with Medium "V" Shape
• Fretboard: Rosewood
• Scale Length: 25 inches (635 mm)
• Bracing: Neck Stick
• Bridge System: Fixed

Figure 1.1: Front view of the Gretsch G9201 Honey Dipper Metal Resonator Guitar, showcasing its nickel-plated brass body and resonator cone.

2. Setup and Initial Inspection

Upon receiving your Gretsch G9201, perform a thorough inspection to ensure all components are intact and undamaged. This instrument is shipped with a gig bag for protection during transport.

2.1 Unpacking:

• Carefully remove the guitar from its packaging and gig bag.
• Inspect the body, neck, headstock, and hardware for any visible damage.
• Ensure all strings are present and properly seated.

2.2 Tuning:

The G9201 may require tuning upon arrival. While standard EADGBe tuning is possible, many resonator players utilize open tunings such as Open G (DGDGBD) or Open D (DADF#AD) to achieve specific blues and folk sounds. Use a reliable electronic tuner for accuracy.

2.3 String Action:

The string action is factory-set. For slide playing, a slightly higher action is often preferred. If adjustments are needed, it is recommended to consult a qualified guitar technician.

3. Operation and Playing

The Gretsch G9201 is designed for both fingerstyle and slide playing, offering a distinctive metallic and resonant tone.

3.1 Playing Techniques:

• Slide Playing: The instrument's design and typical setup are well-suited for slide guitar. Experiment with various slide materials (metal, glass) and weights to find your preferred tone.
• Fingerpicking: The resonator cone amplifies the natural acoustic sound, making it responsive to fingerstyle techniques.

3.2 Neck Profile:

The mahogany neck features a medium "V" shape, which provides a comfortable grip for many players, particularly those who utilize a thumb-over technique for bass notes.

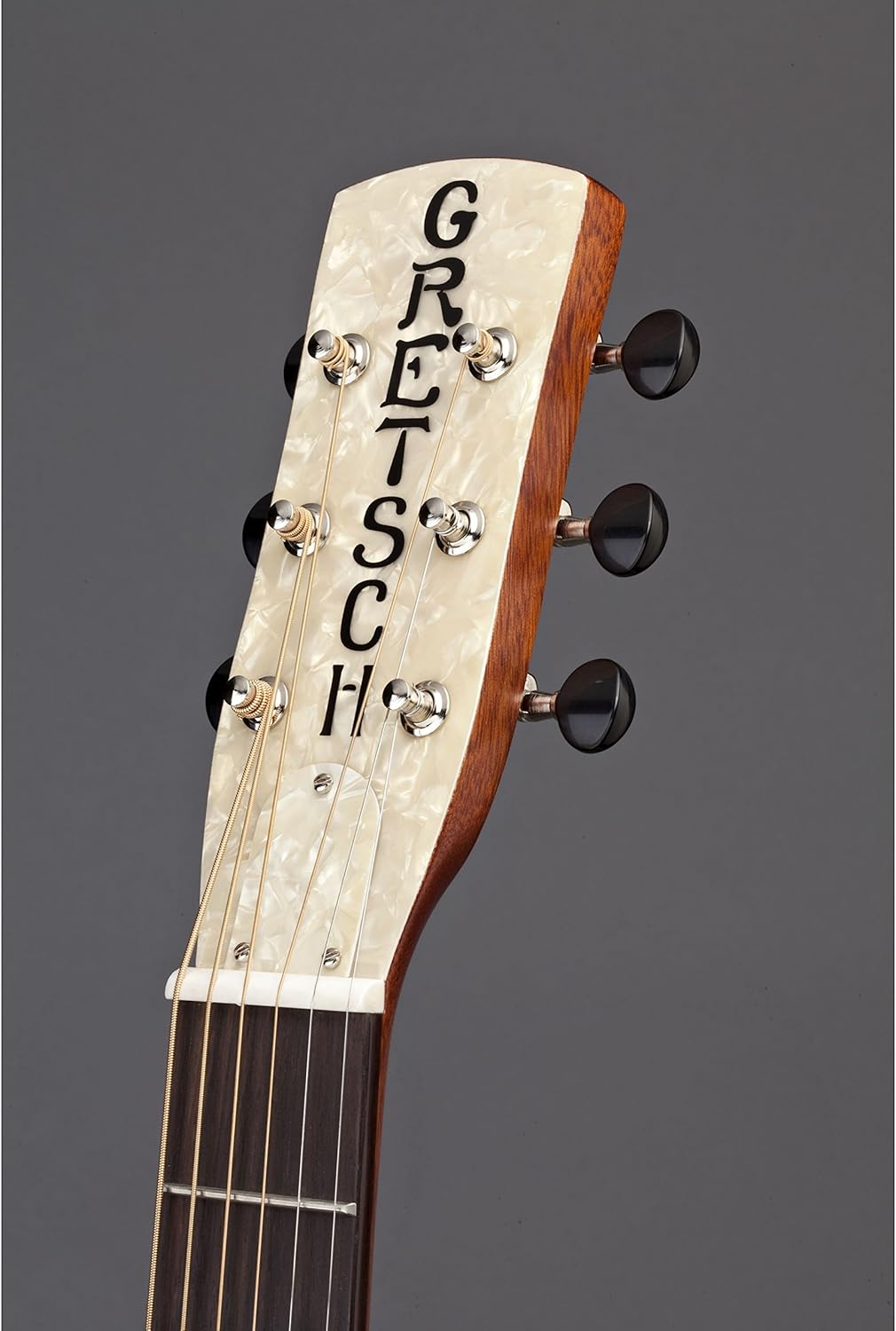

Figure 3.1: Close-up of the Gretsch G9201 headstock, featuring the Gretsch logo and tuning machines.

4. Maintenance

Proper maintenance ensures the longevity and optimal performance of your Gretsch G9201 resonator guitar.

4.1 Cleaning:

• Body: The nickel-plated brass body can be cleaned with a soft, dry, lint-free cloth. For smudges or fingerprints, a slightly damp cloth followed by a dry polish is recommended. Avoid abrasive cleaners.
• Fretboard: The rosewood fretboard should be cleaned periodically to remove dirt and oil buildup. Use a specialized fretboard cleaner or a very lightly damp cloth. Apply a small amount of lemon oil or mineral oil to condition the wood once or twice a year.
• Strings: Wipe down strings after each use with a clean cloth to remove sweat and oils, which can prolong string life.

4.2 String Replacement:

Replace strings regularly, especially if they show signs of wear, corrosion, or if tuning stability decreases. Use brass or bronze strings suitable for acoustic guitars. When replacing, change one string at a time to maintain neck tension.

4.3 Tuning Machines:

Periodically check the tuning machines for any looseness. Tighten screws gently if necessary. If the tuning knobs (plastic components) become damaged, replacement parts may be available from authorized Gretsch dealers or guitar repair shops.

4.4 Storage:

Store the guitar in its gig bag or a hard case when not in use to protect it from dust, humidity fluctuations, and accidental damage. Avoid extreme temperatures and direct sunlight.

5. Troubleshooting

This section addresses common issues you might encounter with your resonator guitar.

5.1 Poor Tuning Stability:

• New Strings: New strings require time to stretch and settle. Tune frequently during the first few playing sessions.
• Worn Strings: Old or corroded strings can cause tuning issues. Replace them.
• Tuning Machines: Ensure tuning machine screws are snug. If a tuner is faulty, it may need replacement.
• Nut/Bridge: Check if strings are binding in the nut slots or at the bridge. Lubrication with graphite can help.

5.2 Buzzing or Rattling Sounds:

• Loose Hardware: Check all screws on the tuning machines, cover plate, and tailpiece.
• Fretting Out: If strings buzz when fretted, the action might be too low, or the neck relief may need adjustment.
• Resonator Cone: Ensure the resonator cone is properly seated and free from debris.
• Loose Internal Components: If the buzz persists, internal components may be loose. Professional inspection is recommended.

5.3 Muffled or Weak Tone:

• Old Strings: Replace old strings with a fresh set.
• Resonator Cone: A damaged or improperly seated resonator cone can affect tone.
• Bridge Saddle: Ensure the bridge saddle is making good contact with the cone.

For complex issues or repairs, it is always advisable to consult a qualified guitar technician or an authorized Gretsch service center.

6. Specifications

7. Warranty and Support

Gretsch instruments are manufactured to high standards and typically come with a manufacturer's warranty covering defects in materials and workmanship. Please refer to the warranty card included with your purchase or visit the official Gretsch website for detailed warranty information and registration procedures.

For technical support, service, or inquiries regarding replacement parts, please contact Gretsch customer service or an authorized Gretsch dealer. Keep your proof of purchase for warranty claims.
