Ankway 1.4W Classic Solar Fountain Pump User Manual

Introduction

Thank you for choosing the Ankway 1.4W Classic Solar Fountain Pump. This free-standing, floating solar-powered pump is designed to enhance your bird bath, garden pond, backyard pool, or outdoor water feature with a gentle water flow. This manual provides essential information for proper setup, operation, and maintenance to ensure optimal performance and longevity of your fountain pump.

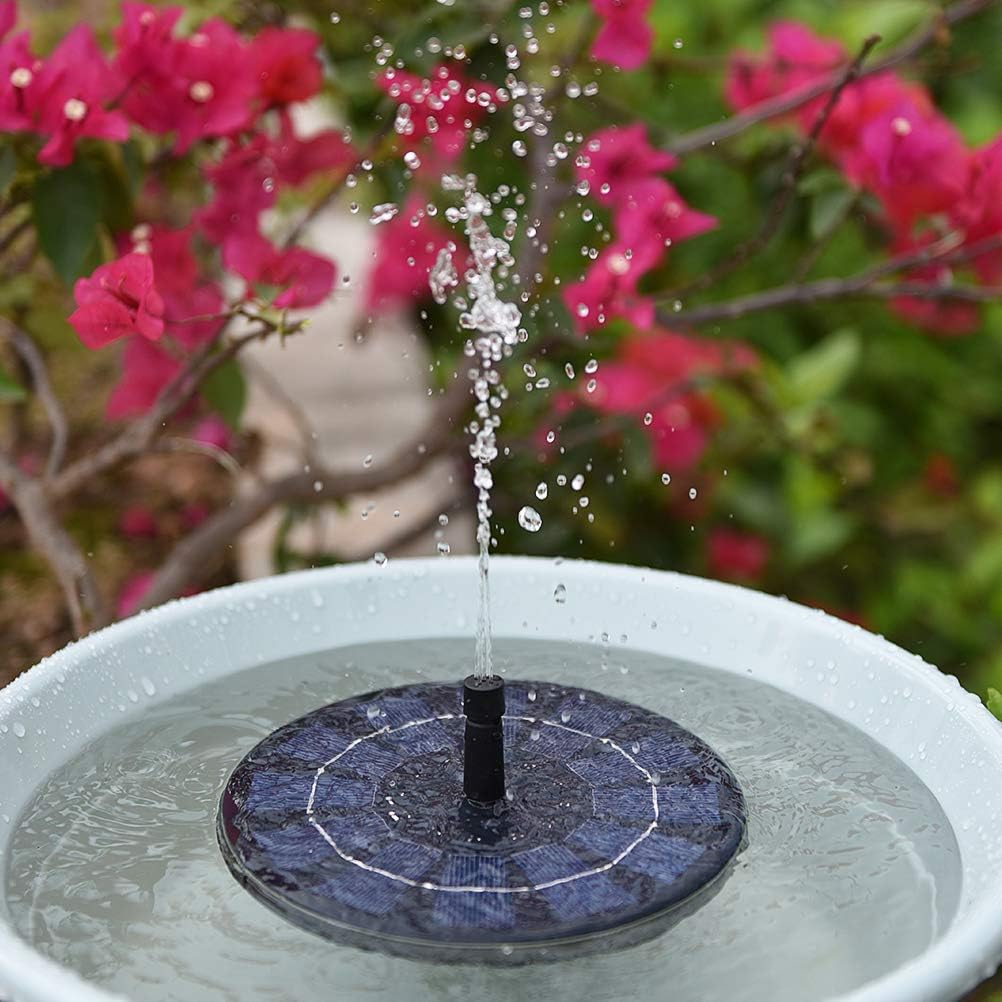

Figure 1: The Ankway 1.4W Classic Solar Fountain Pump in operation, showcasing its floating design and water spray.

Safety Information

• Ensure the fountain is placed in a stable water basin to prevent tipping.
• Keep the pump clean and free from debris to avoid blockages and damage.
• Do not operate the pump out of water. Always ensure the pump is fully submerged.
• This product is not a toy. Keep out of reach of children and pets when not supervised.
• Avoid touching the solar panel or pump components with wet hands while the unit is exposed to direct sunlight, as it may be active.

Package Contents

Verify that all components are present in the package:

• 1 x Solar Fountain Pump Unit (integrated solar panel and pump)
• 7 x Assorted Nozzles/Spray Heads
• 4 x Plastic Stabilizers (for centering the fountain)
• 1 x Instruction Manual
• 1 x Filter (pre-installed or separate)

Figure 2: Illustration of the different nozzle types included with the fountain pump, allowing for varied water spray patterns.

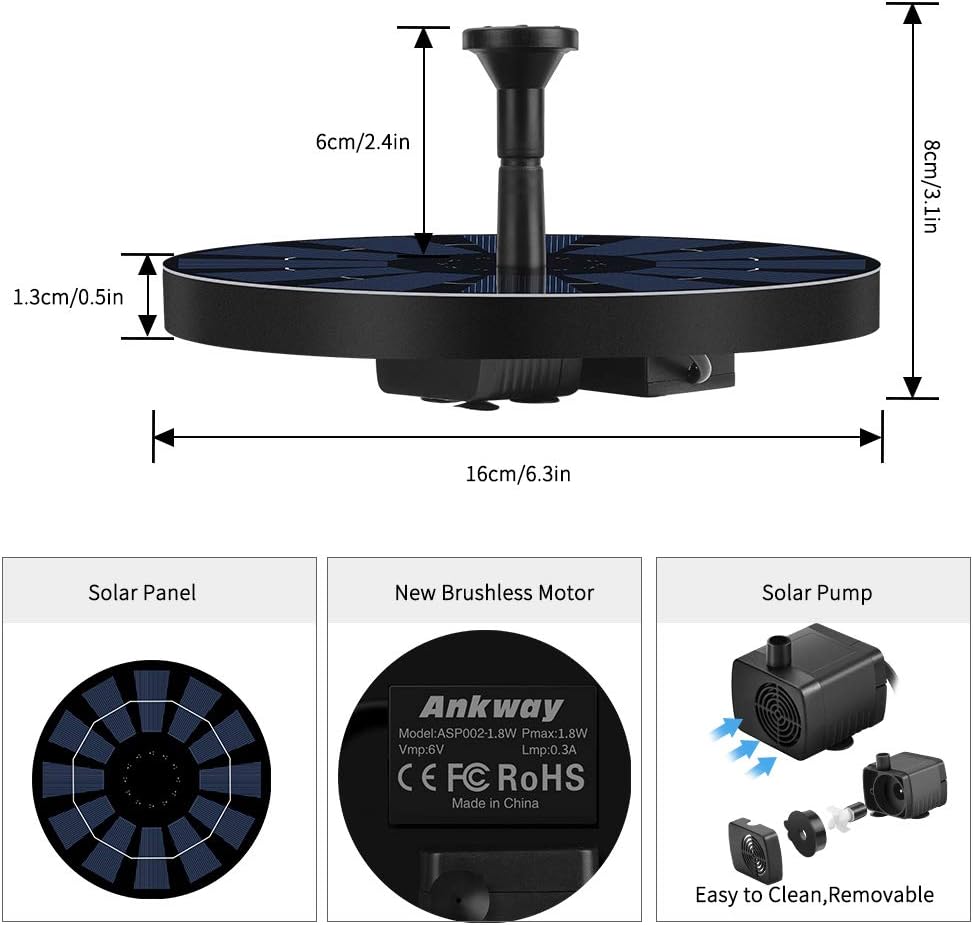

Figure 3: Detailed view of the solar panel, the new brushless motor, and the easy-to-clean, removable pump unit.

Setup Instructions

1. Choose a Location: Select a location for your bird bath or water feature that receives direct and unobstructed sunlight for most of the day. The fountain operates best in strong, direct sunlight.
2. Prepare the Water Basin: Fill your bird bath, pond, or container with sufficient water. Ensure the water level is deep enough for the pump to be fully submerged (at least 1 inch / 2.5 cm deep).
3. Attach Nozzle (Optional): Select your desired spray head from the 7 included nozzles. Gently attach it to the pump's outlet. You can experiment with different nozzles to achieve various water patterns and heights.
4. Place the Fountain: Carefully place the solar fountain pump unit into the water. Ensure the solar panel faces upwards towards the sun.
5. Initial Priming: If the fountain does not start immediately, gently shake the unit or submerge it completely for 5-8 seconds to release any trapped air and allow the pump to prime.
6. Use Stabilizers (Optional): If the fountain tends to drift or move excessively in your water basin, insert the four plastic stabilizers into the designated slots on the side of the fountain unit. These will help keep it centered.

Figure 4: The solar fountain pump placed in a bird bath, demonstrating proper setup for operation.

Operating Instructions

• The Ankway solar fountain pump is entirely solar-powered and does not store energy. It will only operate when exposed to sufficient direct sunlight.
• The height and pattern of the water spray are directly dependent on the intensity of the sunlight. Stronger sunlight results in a higher and more consistent spray.
• The fountain will automatically start spraying water once the solar panel receives enough sunlight. It will stop or reduce its spray in cloudy conditions or when shaded.
• Regularly check the water level in your basin to ensure the pump remains submerged and to prevent it from running dry, which can shorten its lifespan.

Maintenance

To maintain optimal performance and extend the life of your solar fountain pump, regular cleaning is essential:

1. Clean the Solar Panel: Wipe the solar panel surface regularly with a soft, damp cloth to remove dust, dirt, leaves, and other debris. A clean panel ensures maximum sunlight absorption.
2. Clean the Pump Filter: The pump has a filter to prevent debris from entering. Periodically remove the pump cover (usually by twisting or unclipping) and clean the filter sponge or mesh. Rinse it thoroughly under clean water.
3. Check for Blockages: Inspect the pump's impeller area for any blockages from small debris. If necessary, carefully remove any obstructions.
4. Maintain Water Quality: Keep the water in your basin clean. Algae buildup or excessive debris can clog the pump and reduce its efficiency. Change the water regularly.

Troubleshooting

• Fountain Not Working:
  • Ensure the solar panel is in direct, strong sunlight.
  • Check if the pump is fully submerged in water.
  • Clean the solar panel and pump filter for any blockages.
  • Shake the fountain gently or submerge it for 5-8 seconds to prime the pump.
• Weak or Intermittent Spray:
  • Sunlight may be insufficient or intermittent (e.g., passing clouds, partial shade).
  • The pump filter or nozzle may be partially clogged. Clean as per maintenance instructions.
  • Water level might be too low. Add more water to the basin.
• Fountain Drifts or Moves:
  • Use the included plastic stabilizers to help anchor the fountain in the center of your water basin.
  • Ensure the water basin is large enough to accommodate the fountain's movement without it hitting the sides.

Specifications

Figure 5: Product dimensions for the Ankway 1.4W Solar Fountain Pump.

Warranty and Support

For any product-related issues, warranty claims, or technical support, please contact the seller or manufacturer directly through your purchase platform. Refer to your purchase documentation for specific warranty terms and contact information.
