1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Foset Riviera RIM-46 Tall Basin Single Lever Faucet. Please read these instructions carefully before installation and use to ensure optimal performance and longevity of your product. Keep this manual for future reference.
2. Product Features
The Foset Riviera RIM-46 faucet is designed for durability and ease of use, featuring:
- Constructed from high-quality brass for maximum durability and extended product life.
- Features a triple chrome layer finish, providing superior brightness and enhanced resistance against corrosion and wear.
- Equipped with a robust metal handle for reliable operation.
- Incorporates a ceramic cartridge for smooth and easy water flow control, preventing drips.
- Includes an aerator designed for water saving and a smooth, splash-free water stream. This faucet is compatible with both high and low water pressure systems.
Graphic illustrating the TRICROMO triple chrome layer for shine and resistance, a key feature of the Foset Riviera faucet.
3. Setup and Installation
Professional installation is recommended for this product. Ensure all local plumbing codes are followed. Before beginning, gather the necessary tools and ensure the water supply is turned off.
3.1. Pre-Installation Checklist
- Verify all components are present and undamaged.
- Ensure the mounting surface is clean, dry, and level.
- Confirm that the water supply lines are accessible and can be shut off.
- Check the water pressure in your system. This faucet operates within a working pressure range of 25 kPa to 98 kPa (0.2 kg/cm² to 1 kg/cm²).
3.2. Installation Steps (General Guide)
- Turn off Water Supply: Locate the main water shut-off valve and turn off the water supply to the installation area.
- Prepare Mounting Hole: Ensure the basin or countertop has an appropriately sized hole for the faucet.
- Install Faucet: Insert the faucet body into the mounting hole. Secure it from underneath the basin using the provided mounting hardware (washer, nut). Tighten securely but do not overtighten.
- Connect Water Lines: Connect the hot and cold water supply lines to the corresponding inlets on the faucet. Use thread sealant tape on connections if necessary to prevent leaks.
- Test for Leaks: Slowly turn on the main water supply. Check all connections for leaks. If leaks are detected, tighten the connections as needed.
- Flush Faucet: Remove the aerator and turn on the faucet to flush out any debris from the water lines. Run water for a few minutes, then turn off the faucet and reattach the aerator.

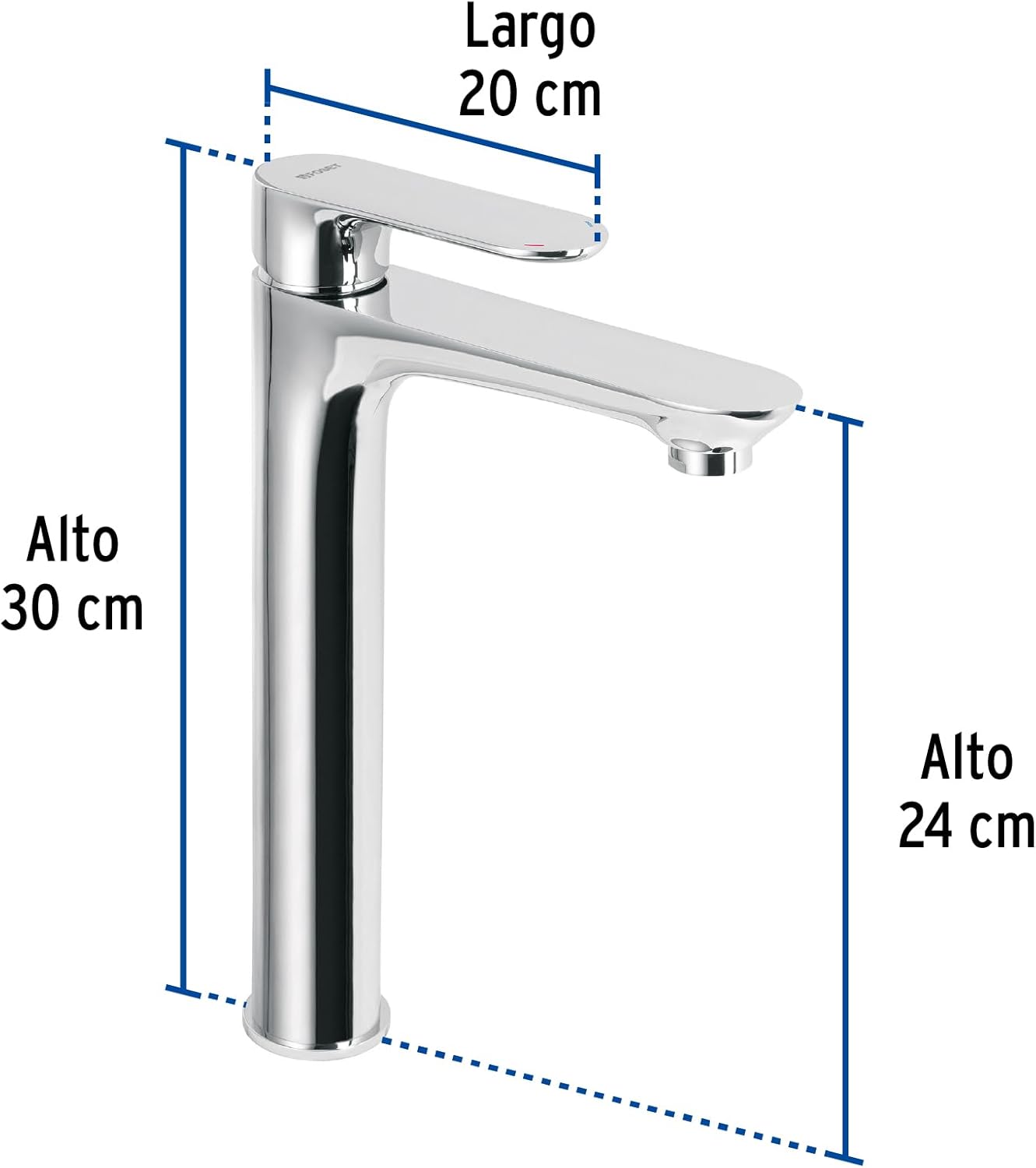

Foset Riviera RIM-46 Tall Basin Single Lever Faucet with dimensions. The faucet measures 30 cm in total height, with the spout height at 24 cm and a length of 20 cm.
4. Operating Instructions
The Foset Riviera RIM-46 faucet features a single lever for convenient control of both water temperature and flow.
- Water Flow Control: Lift the lever upwards to increase water flow. Push the lever downwards to decrease or shut off water flow.
- Temperature Control: Move the lever to the left for hot water and to the right for cold water. Adjust the position between left and right to achieve the desired water temperature.
The ceramic cartridge ensures smooth operation and precise control over water output.
5. Maintenance
Regular cleaning and proper care will help maintain the appearance and functionality of your Foset Riviera RIM-46 faucet.
5.1. Cleaning the Chrome Finish
- Clean the faucet regularly with a soft cloth and mild soap or a non-abrasive cleaner specifically designed for chrome finishes.
- Avoid using abrasive cleaners, scouring pads, or harsh chemicals (e.g., ammonia, bleach, acid-based cleaners) as these can damage the chrome finish and void the warranty.
- Rinse thoroughly with clean water after cleaning and dry with a soft cloth to prevent water spots.
5.2. Aerator Maintenance
- If water flow decreases or becomes irregular, the aerator may be clogged with debris.
- Unscrew the aerator from the spout.
- Disassemble and rinse the aerator components under running water to remove any sediment or particles. A soft brush can be used for stubborn deposits.
- Reassemble the aerator and screw it back onto the spout. Do not overtighten.
6. Troubleshooting
Refer to the following table for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Low water flow | Clogged aerator; partially closed shut-off valve; low water pressure. | Clean the aerator (see Maintenance section). Ensure shut-off valves are fully open. Check household water pressure. |
| Leaking from spout when off | Worn or damaged ceramic cartridge. | Contact customer support for a replacement ceramic cartridge. |
| Leaking from base of faucet | Loose mounting nut; improper seal during installation. | Tighten the mounting nut underneath the basin. If leak persists, re-install with proper sealant. |
| Stiff or difficult lever operation | Mineral buildup in cartridge; worn cartridge. | Flush the system. If issue persists, the ceramic cartridge may need replacement. |
7. Specifications
| Attribute | Detail |
|---|---|
| Brand | Foset |
| Model Number | RIM-46 |
| Manufacturer | Foset Riviera |
| Style | Chrome |
| Number of Handles | 1 |
| Material | Brass body with triple chrome layer |
| Cartridge Type | Ceramic |
| Working Pressure Range | 25 kPa to 98 kPa (0.2 kg/cm² to 1 kg/cm²) |
| Item Weight | 2.37 Kilograms |
| Product Dimensions (Approximate Faucet) | Total Height: 30 cm, Spout Height: 24 cm, Spout Length: 20 cm |
8. Warranty and Support
For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support or replacement parts, please contact Foset customer service through their official website or the contact details provided with your purchase.
Packaging for the Foset Riviera RIM-46 Tall Basin Single Lever Faucet, showing product details and features.
