Furniture of America Overtown Metal Bed Instruction Manual

1. Introduction

This manual provides essential instructions for the assembly, operation, and maintenance of your Furniture of America Overtown Metal Bed. Please read all instructions carefully before beginning assembly and retain this manual for future reference. This bed features a full metal construction with a dark bronze finish and a design that includes seven spindles on both the headboard and footboard.

2. Safety Information

• Adult Assembly Required: This product requires assembly by adults.
• Two-Person Assembly Recommended: For safety and ease, assembly is best performed by two people.
• Keep Children Away: Keep children and pets away from the assembly area. Small parts can be a choking hazard.
• Use Correct Tools: Ensure all necessary tools are available and used correctly.
• Check All Connections: Periodically check all bolts and connections to ensure they remain tight.
• Weight Limit: Do not exceed the maximum recommended weight of 500 pounds for this bed frame.
• Box Spring Required: This bed frame is designed to be used with a box spring.

3. Package Contents

Please verify that all components are present before beginning assembly. Refer to the included assembly instructions for a detailed list of parts and hardware. Typical components include:

• Headboard
• Footboard
• Side Rails
• Center Support Bar(s)
• Support Legs
• Hardware Pack (bolts, washers, nuts, Allen wrench)

If any parts are missing or damaged, please contact customer support immediately.

4. Setup and Assembly

Assembly instructions are included with your product. Follow these steps for a successful setup:

1. Unpack Components: Carefully remove all parts from the packaging and lay them out on a soft, clean surface to prevent scratches.
2. Identify Parts: Refer to the parts list in your included assembly guide to identify each component.
3. Attach Side Rails: Connect the side rails to the headboard and footboard using the provided hardware. Ensure all bolts are finger-tightened initially.
4. Install Support System: Attach the center support bar(s) and support legs to the bed frame.
5. Final Tightening: Once all components are in place and aligned, fully tighten all bolts with the provided Allen wrench. Do not overtighten.
6. Place Box Spring and Mattress: Position your California King box spring and mattress onto the assembled frame.

Figure 1: Exploded view of bed frame components for assembly reference.

Figure 2: Fully assembled Overtown Metal Bed frame.

5. Operating Instructions

The Furniture of America Overtown Metal Bed is designed for use with a California King size mattress and a box spring. Ensure the mattress and box spring are properly seated on the bed frame for optimal support and stability. The bed offers approximately 6.5 inches of under-bed clearance for storage.

Figure 3: Under-bed storage clearance and leg detail.

6. Maintenance

To maintain the appearance and longevity of your metal bed frame, follow these care instructions:

• Cleaning: Wipe the metal surfaces with a damp cloth to remove dust and dirt. For more thorough cleaning, use a mild soap solution and then wipe with a dry cloth immediately to prevent water spots or rust.
• Avoid Harsh Chemicals: Do not use abrasive cleaners, strong detergents, or chemical solvents, as these can damage the finish.
• Regular Inspection: Periodically inspect all bolts and connections to ensure they are secure. Tighten if necessary.
• Protect Floors: The bed frame is equipped with scratch-resistant pads. Ensure these are intact to protect your flooring.

7. Troubleshooting

• Squeaking Noises: If the bed frame makes squeaking noises, check all bolts and connections. Loosen slightly, adjust the frame, and then re-tighten firmly. Ensure the mattress and box spring are properly aligned.
• Instability: If the bed feels unstable, verify that all support legs are touching the floor evenly and that all connections are securely tightened. Ensure the bed is on a level surface.
• Missing Parts: If you discover missing parts during assembly, do not proceed. Contact customer support for replacement parts.

8. Specifications

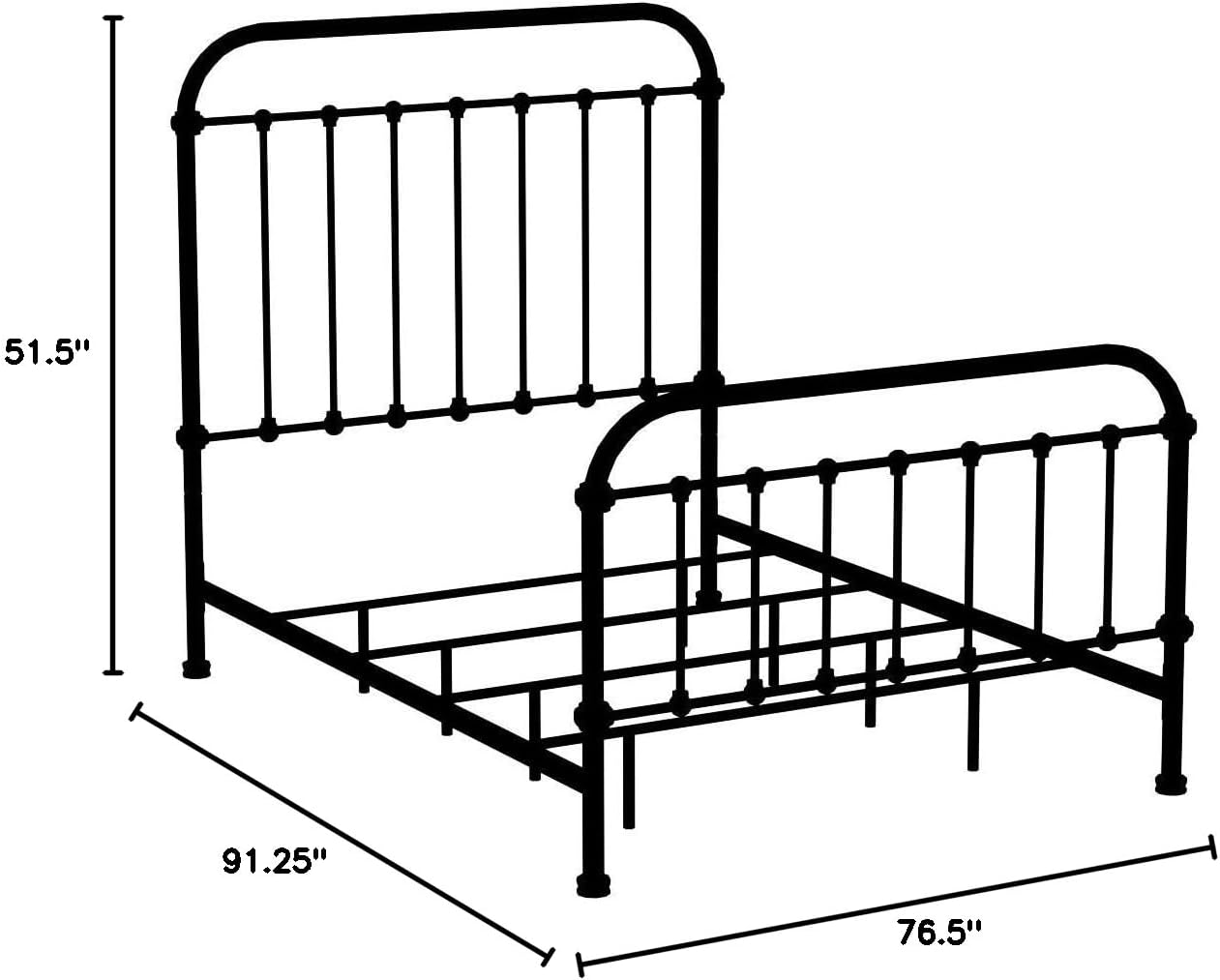

Figure 4: Product dimensions.

9. Warranty Information

This Furniture of America Overtown Metal Bed comes with a 1-year limited replacement parts warranty. This warranty covers manufacturing defects in materials and workmanship under normal use. It does not cover damage resulting from improper assembly, misuse, abuse, accident, or normal wear and tear. Please retain your proof of purchase for warranty claims.

10. Customer Support

For assistance with assembly, missing parts, warranty claims, or any other inquiries regarding your Furniture of America Overtown Metal Bed, please contact Furniture of America customer support. Refer to the contact information provided with your purchase documentation or visit the official Furniture of America website for support details.

You can also visit the Furniture of America Store on Amazon for more information.
