1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of the White-Rodgers 50A51-215 OEM Replacement Furnace Control Board. This board is designed as a direct replacement for specific furnace systems. Please read all instructions carefully before proceeding with installation or service.
2. Important Safety Instructions
Failure to follow these safety instructions could result in property damage, personal injury, or death.
- WARNING: DISCONNECT POWER BEFORE SERVICING. Always ensure the main power supply to the furnace is turned off at the circuit breaker or fuse box before attempting any installation, maintenance, or troubleshooting.
- WARNING: NOT FIELD REPAIRABLE. This control board is not designed for field repair. Do not attempt to disassemble or repair the unit.
- REPLACE ONLY WITH EXACT MODEL NUMBER. Using an incorrect replacement part can lead to improper operation, damage to the furnace, and create hazardous conditions.
- EXPLOSION AND SERIOUS INJURY COULD RESULT. Improper installation or handling of furnace components, especially those related to gas and electrical systems, can lead to explosions, fires, carbon monoxide poisoning, and severe personal injury or death.
- Installation and servicing should only be performed by a qualified HVAC technician.
- Observe all local codes and ordinances.
3. Product Overview
The White-Rodgers 50A51-215 is an OEM replacement furnace control board designed to manage the operational sequences of a two-stage furnace. It controls various functions including ignition, blower motor operation, and safety monitoring. This board ensures efficient and safe operation of your heating system.

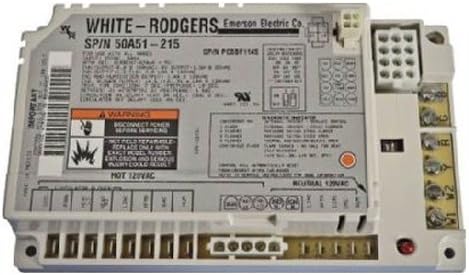

Figure 1: White-Rodgers 50A51-215 OEM Replacement Furnace Control Board. This image displays the top view of the control board, showing various electrical connectors, terminal blocks, and printed circuit board components. Key labels such as "WHITE-RODGERS SP/N 50A51-215" and safety warnings are visible.
4. Specifications
| Specification | Detail |
|---|---|
| Part Number | CECOMINOD069670 (Manufacturer's Internal Identifier) |
| Model Number | 50A51-215 |
| Item Weight | 1.69 pounds |
| Product Dimensions | 9 x 7 x 10 inches |
| Input Voltage | HOT 120VAC, NEUTRAL 120VAC (as indicated on board) |
| Application | OEM Replacement Furnace Control Board (2-stage) |
5. Setup and Installation
Installation of this furnace control board requires electrical and HVAC system knowledge. It is strongly recommended that installation be performed by a qualified technician.
5.1 Pre-Installation Checks
- Verify Compatibility: Ensure the 50A51-215 is the exact replacement model number for your furnace. Refer to your furnace manufacturer's specifications.
- Disconnect Power: Turn off all electrical power to the furnace at the main service panel (breaker or fuse box). Verify power is off using a voltage meter.
- Inspect Existing Wiring: Take clear photos of the existing wiring connections to the old control board for reference during reinstallation. Label wires if necessary.
5.2 Installation Steps
- Remove Old Board: Carefully disconnect all wires from the old control board. Note the location of each wire. Remove any mounting screws or clips securing the old board.
- Mount New Board: Position the new White-Rodgers 50A51-215 board in the same location as the old one. Secure it using the original mounting hardware.
- Connect Wiring: Reconnect all wires to the new board, matching them to the locations documented during removal. Ensure all connections are secure and correct. Pay close attention to the HOT 120VAC and NEUTRAL 120VAC connections.
- Verify Connections: Double-check all wiring against your photos and the furnace wiring diagram to ensure accuracy.
- Restore Power: Once all connections are verified and secure, restore electrical power to the furnace.
6. Operating Instructions
The White-Rodgers 50A51-215 control board operates automatically in conjunction with your furnace's thermostat and other safety devices. There are no user-adjustable settings on the board itself. Its primary function is to sequence the furnace's operations, including:
- Initiating the ignition sequence upon a call for heat from the thermostat.
- Monitoring safety limits and shutting down the furnace if a fault is detected.
- Controlling the blower motor for heating and cooling cycles.
- Managing two-stage heating operation for optimal comfort and efficiency.
Refer to your furnace's specific user manual for details on its overall operation and thermostat settings.
7. Maintenance
The White-Rodgers 50A51-215 control board itself requires no routine maintenance. However, regular maintenance of the overall furnace system is crucial for its longevity and efficient operation.
- Annual Professional Inspection: Have your furnace inspected and serviced annually by a qualified HVAC technician. This includes checking electrical connections, cleaning components, and verifying proper operation of all safety devices.
- Air Filter Replacement: Regularly replace or clean your furnace's air filter according to the manufacturer's recommendations. A dirty filter can restrict airflow, leading to overheating and potential damage to furnace components, including the control board.
- Keep Area Clear: Ensure the area around the furnace is clear of obstructions and combustible materials to allow for proper airflow and prevent fire hazards.
8. Troubleshooting
Troubleshooting furnace issues can be complex and often requires specialized tools and knowledge. If you suspect a problem with your furnace or the control board, it is recommended to contact a qualified HVAC technician.
8.1 General Troubleshooting Steps (for qualified technicians)
- Check Power: Ensure the furnace has power and the circuit breaker has not tripped.
- Thermostat Settings: Verify the thermostat is set to the correct mode (Heat) and temperature.
- Furnace Door Switch: Ensure the furnace access panel is securely closed, as many furnaces have a safety switch that prevents operation if the door is open.
- Error Codes: Many control boards have diagnostic LED lights that flash specific codes to indicate faults. Consult the furnace manufacturer's manual for a list of error codes and their meanings.
- Component Checks: A technician can test individual components such as the igniter, flame sensor, limit switches, and pressure switch to identify failures that might prevent the board from initiating a heating cycle.
Do not attempt to bypass safety devices or force the furnace to operate if a fault is present. This can create dangerous conditions.
9. Warranty Information
This White-Rodgers 50A51-215 OEM Replacement Furnace Control Board is typically covered by a manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary depending on the point of purchase and local regulations. Please retain your proof of purchase for warranty claims.
For detailed warranty information, please refer to the documentation provided with your purchase or contact White-Rodgers customer support.
10. Support
For technical assistance, warranty claims, or further information regarding the White-Rodgers 50A51-215 control board, please contact White-Rodgers customer support or visit their official website. When contacting support, have your product model number (50A51-215) and proof of purchase readily available.
White-Rodgers Official Website: https://www.emerson.com/en-us/automation/commercial-residential-solutions/white-rodgers
