Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your RAREELECTRICAL Starter Motor, Model 30123B5. This starter is designed for compatibility with European Model 2000-2005 Iveco Eurocargo F4AE0681E 5.9L DSL engines. Please read this manual thoroughly before attempting any installation or service to ensure safe and correct usage.
What's in the Box
Upon opening the packaging, please verify that all components are present and undamaged. The package should contain:
- One (1) RAREELECTRICAL Starter Motor (Model 30123B5)
If any items are missing or damaged, contact customer support immediately.
Product Overview
The RAREELECTRICAL Starter Motor is a robust electrical component designed to crank the engine for starting. It operates on a 24V system and features a 10-tooth drive gear with clockwise rotation.

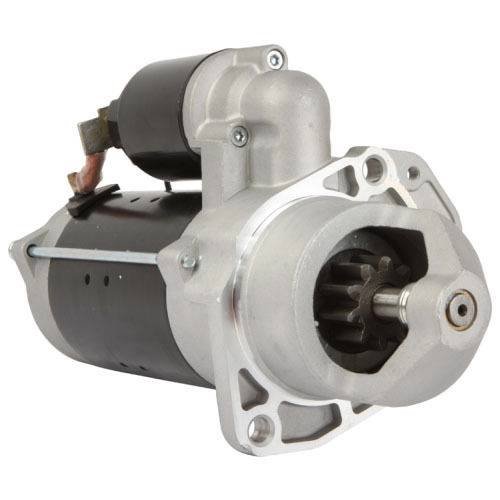

Figure 1: Front view of the RAREELECTRICAL Starter Motor, highlighting the drive gear and solenoid assembly. This image illustrates the primary components responsible for engaging the flywheel and initiating engine rotation.
Figure 2: Side view of the RAREELECTRICAL Starter Motor, displaying the mounting points and electrical terminals. This perspective is useful for identifying connection points during installation.
Important Safety Information
Always prioritize safety when working with automotive electrical systems. Failure to follow safety precautions can result in serious injury or damage to the vehicle.
- Disconnect the vehicle's battery before beginning any work on the starter motor or electrical system.
- Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
- Ensure the vehicle is securely supported on jack stands if working underneath.
- Avoid contact with hot engine components.
- Consult a qualified mechanic if you are unsure about any step of the installation process.
Setup and Installation
Installation of a starter motor requires mechanical knowledge and proper tools. Refer to your vehicle's specific service manual for detailed instructions on removing the old starter and installing the new one. The following are general steps:
- Preparation: Disconnect the negative battery terminal. Safely lift and support the vehicle if necessary to access the starter motor.
- Remove Old Starter: Disconnect electrical connections from the old starter. Remove mounting bolts and carefully extract the old starter motor.
- Inspect: Compare the new RAREELECTRICAL starter with the old unit to ensure proper fitment and identical electrical connection points.
- Install New Starter: Position the new starter motor and secure it with the mounting bolts. Tighten to the manufacturer's specified torque.
- Connect Electrical: Reconnect the main battery cable and the solenoid wire to the new starter. Ensure all connections are clean and tight.
- Final Steps: Reconnect the negative battery terminal. Lower the vehicle if it was raised.
Note: Always verify your OEM part number from your original unit to help ensure fitment before installation.
Operation
The starter motor is activated when the ignition key is turned to the "START" position. It engages the engine's flywheel, rotating the crankshaft to initiate the combustion process. Once the engine starts, the starter motor disengages automatically.
- Ensure the vehicle is in park (automatic transmission) or neutral (manual transmission) with the parking brake engaged before starting.
- Turn the ignition key to the "START" position and hold until the engine fires, typically for a few seconds.
- Avoid prolonged cranking (more than 10-15 seconds) to prevent overheating the starter motor. Allow a brief cool-down period between attempts if the engine does not start immediately.
Maintenance
Starter motors are generally low-maintenance components. Regular inspection of related systems can help prolong its life.
- Battery Condition: Ensure the vehicle's battery is fully charged and in good condition. A weak battery can strain the starter motor.
- Electrical Connections: Periodically check all electrical connections to the starter motor and battery for corrosion or looseness. Clean and tighten as necessary.
- Mounting: Verify that the starter motor is securely mounted to the engine block.
Troubleshooting
If the engine fails to start, consider the following common issues:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Starter clicks but engine does not crank. | Weak battery, loose battery cables, faulty solenoid. | Check battery charge and terminals. Test battery. Inspect solenoid wiring. |
| Starter cranks slowly. | Low battery charge, corroded battery terminals, high resistance in starter circuit. | Charge or replace battery. Clean battery terminals. Inspect starter wiring. |
| No sound or click when turning key. | Blown fuse, faulty ignition switch, open circuit in starter wiring, faulty starter motor. | Check fuses. Test ignition switch. Inspect all wiring connections. Test starter motor. |
| Starter spins but engine does not crank. | Faulty starter drive (bendix gear), damaged flywheel teeth. | Inspect starter drive and flywheel. Replacement of starter or flywheel may be necessary. |
If troubleshooting steps do not resolve the issue, it is recommended to consult a professional mechanic.
Specifications
| Feature | Detail |
|---|---|
| Item Description | Starter |
| Unit Type | BOSCH |
| Type | PLGR |
| Voltage | 24V |
| Rotation | Clockwise (CW) |
| Teeth on Drive / Splines | 10 |
| Item Weight | 20 lbs (9.07 kg) |
| Product Dimensions (L x W x H) | 18 x 9 x 9 inches (45.7 x 22.9 x 22.9 cm) |
| Model Number | 30123B5 |
| Manufacturer | RAREELECTRICAL |
Compatibility
This starter motor is compatible with various applications. Please verify your OEM part number from your original unit to ensure proper fitment.
Replaces OEM Part Numbers:
- BOSCH: 0001231016
- BOSCH SERVICE EUROPE: 0-986-020-170
- DIXIE: TS-6241
- HELLA: 8EA-738-030-001
- IVECO: 42498718
- LETRIKA (ISKRA) SALES: 11131846 IS 1264
- LETRIKA (ISKRA) TECH: AZF4237
- MARELLI: MSN2008
- MINNPAR: 57-5529
- MONDIAL: 70-216-190, 72-867-70
- MONDIAL NEW: 70216190N, 7286770N
- NISSAN, INFINITI: 23300LA4MA
- PRESTOLITE: 860716
- VALEO TECH: 585202
Known Applications:
- IVECO FIAT LCV / HEAVY DUTY - EUROPE MEDIUM/HEAVY TRUCK EUROCARGO F4AE0681C, 5.9L (2000-2012)
- IVECO FIAT LCV / HEAVY DUTY - EUROPE MEDIUM/HEAVY TRUCK EUROCARGO F4AE0681C, 5.9L DSL. (2000-2005)
- IVECO FIAT LCV / HEAVY DUTY - EUROPE MEDIUM/HEAVY TRUCK EUROCARGO F4AE0681C/B, 5.9L (2000-2012)
- IVECO FIAT LCV / HEAVY DUTY - EUROPE MEDIUM/HEAVY TRUCK EUROCARGO F4AE0681C/E, 5.9L (2000-2012)
- IVECO FIAT LCV / HEAVY DUTY - EUROPE MEDIUM/HEAVY TRUCK EUROCARGO F4AE0681D, 5.9L (2000-2005)
- IVECO FIAT LCV / HEAVY DUTY - EUROPE MEDIUM/HEAVY TRUCK EUROCARGO F4AE0681D, 5.9L DSL. (2000-2012)
- IVECO FIAT LCV / HEAVY DUTY - EUROPE MEDIUM/HEAVY TRUCK EUROCARGO F4AE0681E, 5.9L (2000-2005)
- IVECO FIAT LCV / HEAVY DUTY - EUROPE MEDIUM/HEAVY TRUCK EUROCARGO F4AE0681E, 5.9L DSL. (2000-2005)
- IVECO FIAT LCV / HEAVY DUTY - EUROPE MEDIUM/HEAVY TRUCK EUROCARGO; 5.9L DSL. (2000-2005)
- IVECO FIAT LCV / HEAVY DUTY - EUROPE MEDIUM/HEAVY TRUCK EUROCARGO TECTOR (2000-2013)
- NEW HOLLAND WHEEL LOADER LW170 CUMMINS 6CT DIESEL (2000-2006)
- NEW HOLLAND WHEEL LOADER LW190 CUMMINS 6CT DIESEL (2000-2006)
- NEW HOLLAND WHEEL LOADER LW190B CUMMINS 6CT DIESEL (2002)
- NEW HOLLAND WHEEL LOADER LW230 CUMMINS 6CT DIESEL (2000-2006)
