Aquila VE4401 Electric Food Steamer User Manual

Introduction

Welcome to the user manual for your Aquila VE4401 Electric Food Steamer. This appliance is designed to prepare healthy meals by steaming vegetables, fish, and meat. Its multi-tier design allows for cooking various foods simultaneously, preserving nutrients and flavors. Please read these instructions carefully before initial use and retain them for future reference to ensure safe and efficient operation.

Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons:

• Read all instructions before operating the steamer.
• Do not immerse the base unit, power cord, or plug in water or other liquids.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Do not use outdoors.
• Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
• Always place the steamer on a stable, heat-resistant surface.
• Exercise extreme caution when moving an appliance containing hot oil or other hot liquids.
• Always attach the plug to the appliance first, then plug the cord into the wall outlet. To disconnect, turn any control to 'off', then remove the plug from the wall outlet.
• Do not use the appliance for other than intended use.
• Use oven mitts when handling hot parts or removing the lid to avoid steam burns.

Product Components

Your Aquila VE4401 Electric Food Steamer consists of several parts designed for easy assembly and use. Familiarize yourself with each component:

• Base Unit: Contains the heating element, water reservoir, control dial, and water level indicator.
• Drip Tray: Collects condensation and food juices, keeping the base unit clean.
• Steam Baskets (x3): Transparent, stackable baskets for holding food items. Each basket has integrated egg holders.
• Rice Bowl (1-liter): A dedicated bowl for steaming rice or other small grains, placed inside a steam basket.
• Lid: Transparent lid to cover the top basket, trapping steam for efficient cooking.

Figure 1: Exploded View of Steamer Components. This image displays an exploded view of the Aquila VE4401 Electric Food Steamer, showing its individual components: the base unit (labeled 'AICOK'), the drip tray, three stackable transparent steam baskets (numbered 1, 2, and 3 from bottom to top), a rice bowl, and the lid. This illustrates how the parts fit together for assembly.

Setup and Assembly

Follow these steps to assemble your steamer before use:

1. Place the base unit on a stable, flat, and heat-resistant surface.
2. Insert the drip tray securely into the base unit.
3. Fill the water reservoir in the base unit with clean water. Use the side water inlets for easy filling. Do not exceed the 'MAX' level indicator.
4. Place the first steam basket onto the drip tray.
5. Add your desired food items into the basket(s).
6. Stack additional baskets as needed, ensuring they are properly aligned.
7. Place the lid securely on the top basket.

Figure 2: Filling the Water Reservoir. This image shows a hand pouring water from a kettle into one of the side water inlets of the Aquila VE4401 Electric Food Steamer's base unit (labeled 'AICOK'). The water level indicator is visible, guiding the user to fill up to the maximum level.

Operating Instructions

Once assembled, operating your Aquila VE4401 Steamer is straightforward:

1. Ensure the steamer is properly assembled, and the water reservoir is filled to the appropriate level.
2. Plug the power cord into a standard electrical outlet.
3. Place your food items into the steam baskets. For rice or smaller grains, use the provided 1-liter rice bowl inside a basket. The baskets also feature integrated holders for steaming up to 6 eggs each.
4. Set the desired steaming time using the digital programmable timer dial located on the front of the base unit. Refer to the 'Steaming Guide' section for recommended cooking times.
5. The indicator light will illuminate, and the steaming process will begin.
6. The steamer will automatically shut off once the set time has elapsed or if the water reservoir runs dry.
7. After cooking, carefully remove the lid and baskets using oven mitts, as escaping steam and hot surfaces can cause burns.
8. Unplug the appliance from the electrical outlet after each use.

Figure 3: Assembled Aquila VE4401 Electric Food Steamer in Use. This image displays the Aquila VE4401 Electric Food Steamer fully assembled and in operation, with various foods like eggs, vegetables, and fish steaming in its three transparent baskets. The base unit, labeled 'AICOK', features a control dial and water level indicator.

Steaming Guide

Steaming is an excellent method for cooking that helps retain the natural flavors, vitamins, and minerals in your food. The Aquila VE4401 is versatile for a wide range of ingredients.

General Steaming Times (Approximate)

Tips for Best Results:

• Cut food into uniform pieces to ensure even cooking.
• Do not overcrowd the steam baskets; allow space for steam to circulate.
• Place foods requiring longer cooking times in the bottom basket, closer to the steam source.
• Utilize the integrated egg holders for convenient egg steaming.
• Always check food for doneness before serving.

Figure 4: Steaming Eggs. This image shows the Aquila VE4401 Electric Food Steamer with eggs placed in the top steam basket, demonstrating the use of the integrated egg holders for convenient egg preparation.

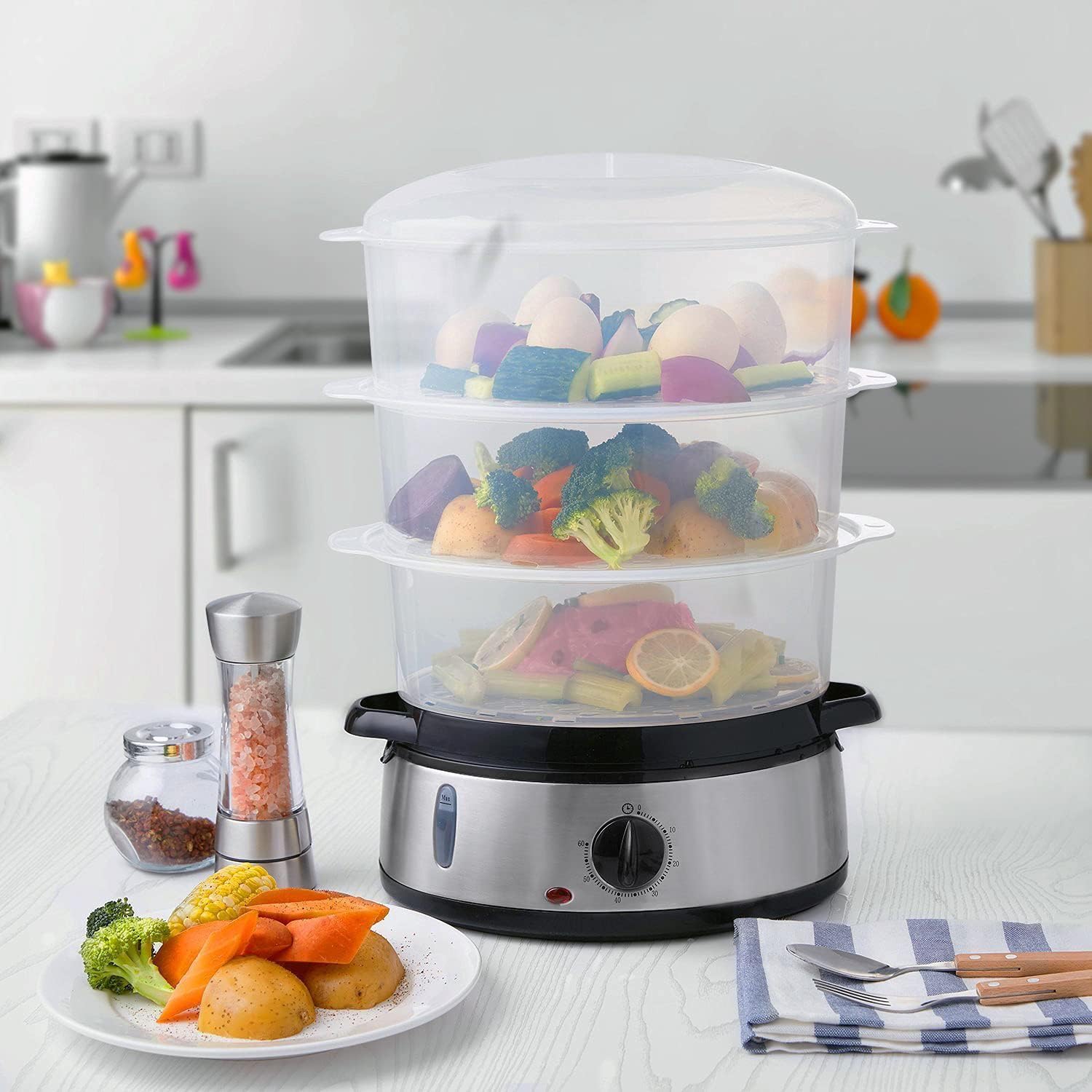

Figure 5: Steamer in a Kitchen Setting. This image shows the Aquila VE4401 Electric Food Steamer in a modern kitchen setting, fully assembled and containing steamed food. A plate of cooked vegetables and fish is positioned beside it, illustrating a healthy meal preparation.

Care and Cleaning

Proper cleaning and maintenance will extend the life of your Aquila VE4401 Steamer:

1. Always unplug the steamer from the power outlet and allow it to cool completely before cleaning.
2. Remove the lid, steam baskets, rice bowl, and drip tray.
3. Wash these removable parts in warm, soapy water. They are also dishwasher-safe (top rack recommended).
4. Wipe the exterior of the base unit with a damp cloth. Do not immerse the base unit in water or any other liquid.
5. To remove mineral deposits (limescale) from the water reservoir, fill it with a 1:1 solution of water and white vinegar. Let it soak for 20-30 minutes, then rinse thoroughly. Repeat if necessary.
6. Ensure all parts are completely dry before reassembling or storing the appliance.

Figure 6: Steamer Components Separated. This image shows the base unit of the Aquila VE4401 Electric Food Steamer (labeled 'AICOK') separated from one of its transparent steam baskets, illustrating how the components can be detached for thorough cleaning.

Troubleshooting

If you encounter any issues with your Aquila VE4401 Steamer, refer to the following table for common problems and solutions:

Product Specifications

• Brand: Aquila
• Model Number: VE4401
• Capacity: 9.5 quarts (total for steam baskets), 1 liter (rice bowl)
• Power: 800 Watts
• Dimensions (approximate): 26 cm (Width) x 43 cm (Height) x 26 cm (Depth)
• Weight: 2.5 Kilograms
• Special Features: Digital programmable timer, Automatic shut-off, Water level indicator, 2 side water inlets, Stackable design, 6 egg holders per basket.
• UPC: 750512844011

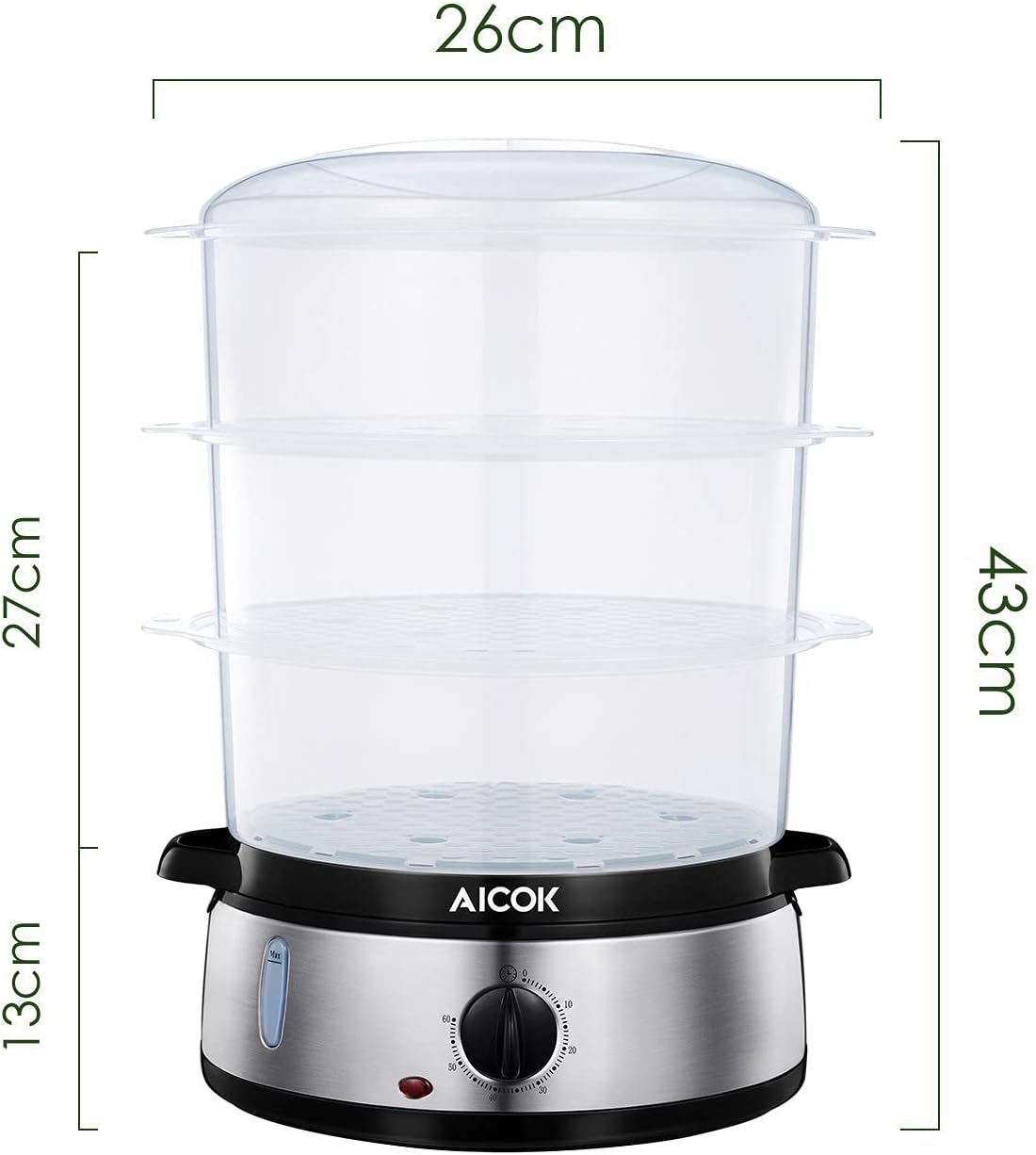

Figure 7: Product Dimensions. This image provides a diagram illustrating the dimensions of the Aquila VE4401 Electric Food Steamer, showing its approximate height (43cm), width (26cm), and the individual heights of the base (13cm) and stacked baskets (27cm).
