Darlee Signature 60 Inch Propane Fire Pit Dining Table

Introduction

This manual provides essential instructions for the safe assembly, operation, and maintenance of your Darlee Signature 60 Inch Propane Fire Pit Dining Table. This outdoor fire pit table features a durable cast aluminum frame with an antique bronze powder-coated finish, designed for rust resistance and longevity. It accommodates a standard 20 lb propane tank, accessible via a pull-out side panel, and includes a burner with up to 41,000 BTUs, along with a protective lid.

Figure 1: Darlee Signature 60 Inch Propane Fire Pit Dining Table in operation.

Safety Information

WARNING: Failure to follow these instructions could result in fire, explosion, or carbon monoxide poisoning, which could cause property damage, personal injury, or death.

• Keep a safe distance from the fire pit.
• Do not use near flammable materials.
• Only use approved fuel types (Liquefied Petroleum Gas).
• Ensure proper ventilation.
• Do not leave unattended during operation.
• Turn off the fuel source when not in use.
• Allow the fire pit to cool completely before covering or storing.
• Always use work gloves during assembly to avoid sharp edges.

Setup Instructions

1. Unpacking: Carefully remove all components from the packaging. Inspect for any damage. Retain packaging for future storage if needed.
2. Assembly: Assemble the table base and attach the tabletop according to the included hardware instructions. Ensure all connections are secure. The cast aluminum frame is designed for easy assembly.
3. Placement: Position the fire pit table on a level, non-combustible surface outdoors, away from any overhead obstructions or flammable structures. Ensure adequate clearance around the unit.
4. Propane Tank Installation: Open the pull-out side panel on the table base. Place a standard 20 lb propane tank (not included) inside the compartment. Connect the propane hose from the fire pit burner to the tank valve, ensuring a tight seal. Close the side panel.
5. Leak Test: Before first use and after any tank change, perform a leak test on all gas connections using a soapy water solution. Bubbles indicate a leak. Do not operate if a leak is detected.

Figure 2: Product dimensions for proper placement and clearance.

Figure 3: Example of the fire pit dining table in an outdoor setting.

Operating Instructions

1. Pre-Operation Check: Ensure the area around the fire pit is clear of flammable materials. Verify the propane tank valve is closed.
2. Lighting the Burner:
   • Open the propane tank valve slowly.
   • Push and turn the control knob on the fire pit to the "IGNITE" position.
   • Press and hold the igniter button until the burner lights. You may need to hold the control knob in for a few seconds after ignition to allow the thermocouple to heat up.
   • If the burner does not light within 15 seconds, turn the control knob to "OFF", close the propane tank valve, wait 5 minutes, and repeat the lighting procedure.
3. Adjusting Flame: Once lit, rotate the control knob to adjust the flame height to your desired level.
4. Turning Off: To turn off the fire pit, rotate the control knob to the "OFF" position. Then, close the valve on the propane tank.
5. Using the Lid: When the fire pit is not in use and has completely cooled, place the provided lid over the burner area to protect it from elements and debris.

Maintenance

• Cleaning: Clean the exterior surfaces with a soft cloth and mild soap solution. Avoid abrasive cleaners. The antique bronze powder-coated finish is designed for durability.
• Burner Maintenance: Periodically inspect the burner and gas connections for any signs of damage or blockage. Keep the burner ports clear of debris.
• Storage: When not in use for extended periods, especially during inclement weather, cover the fire pit with a weather-resistant cover. Ensure the propane tank is disconnected and stored safely according to local regulations.
• Rust Prevention: The cast aluminum frame is naturally rust-resistant. However, regular cleaning and covering will help maintain its appearance and extend its lifespan.

Troubleshooting

• Burner Does Not Light:
  • Check if the propane tank valve is fully open.
  • Ensure the propane tank has fuel.
  • Verify all gas connections are secure and free of leaks.
  • Check if the igniter electrode is clean and properly positioned.
• Low Flame:
  • The propane tank may be low on fuel.
  • Ensure the control knob is fully open.
  • Check for kinks in the gas hose.
  • The tank's overfill protection device (OPD) may have been triggered. Close the tank valve, disconnect, wait 30 seconds, and reconnect, then slowly open the valve.
• Smell of Gas:
  • Immediately turn off the fire pit and close the propane tank valve.
  • Perform a leak test on all connections.
  • If the smell persists, do not operate the unit and contact a qualified service technician.

Specifications

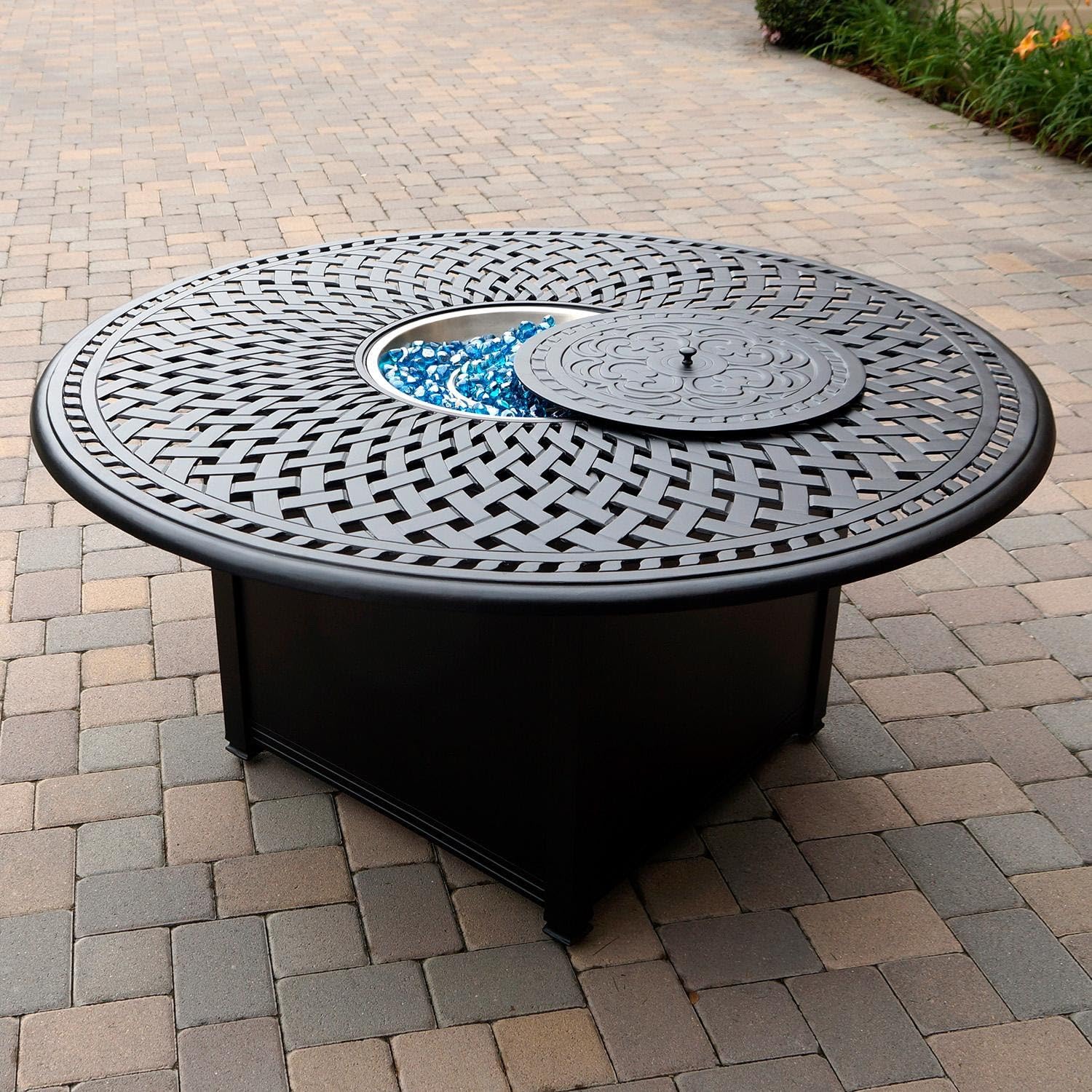

Figure 4: Detail of the table's woven surface pattern.

Warranty Information

The manufacturer's warranty details for the Darlee Signature 60 Inch Propane Fire Pit Dining Table are typically provided with the product at the time of purchase or can be found on the official Darlee website. Please refer to these resources for specific terms, conditions, and duration of the warranty.

Customer Support

For technical assistance, replacement parts, or any questions not covered in this manual, please contact Darlee customer support. Refer to your purchase documentation or the manufacturer's website for current contact information.
