1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of the Bauer Sz2-20/Do44-141L-B 3-Phase Motor. Please read this manual thoroughly before attempting to install or operate the motor. Retain this manual for future reference.
2. Safety Information
Always observe the following safety precautions to prevent injury and damage to the equipment:
- Electrical Hazard: Ensure all power is disconnected and locked out before performing any installation, maintenance, or inspection. Only qualified personnel should perform electrical work.
- Rotating Parts: Keep hands, tools, and clothing clear of rotating parts during operation.
- Proper Grounding: The motor must be properly grounded according to local and national electrical codes.
- Overload Protection: Install appropriate overload protection devices to prevent motor damage from overcurrents.
- Ventilation: Ensure adequate ventilation to prevent overheating.
- Lifting: Use appropriate lifting equipment and techniques when moving the motor due to its weight.
3. Setup and Installation
3.1 Unpacking and Inspection
Carefully remove the motor from its packaging. Inspect for any visible damage that may have occurred during shipping. Report any damage to the carrier immediately.
3.2 Mounting
Mount the motor securely on a rigid, level surface capable of supporting its weight and absorbing operational vibrations. Ensure proper alignment with the driven equipment to prevent premature wear on bearings and couplings.

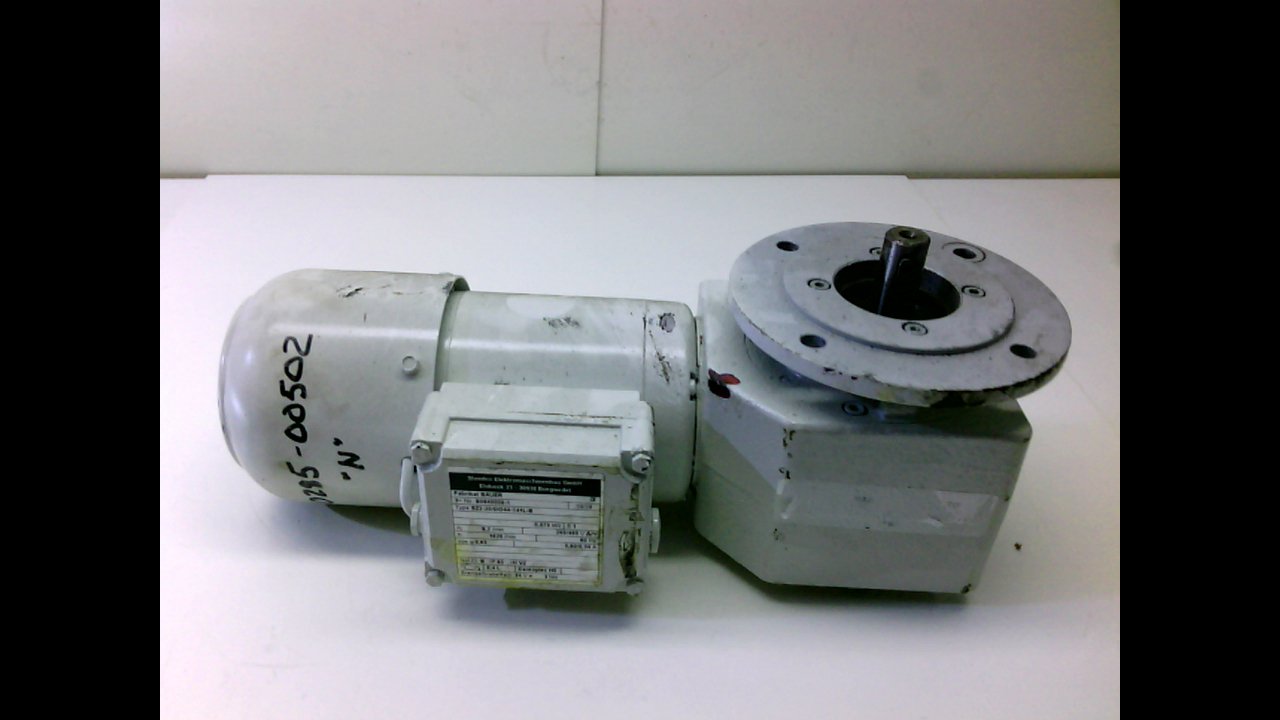

Figure 1: General view of the Bauer Sz2-20/Do44-141L-B motor, showing its overall structure and mounting flange.
3.3 Electrical Connection
The Bauer Sz2-20/Do44-141L-B motor is a 3-phase unit designed for 265/460V, 60Hz operation. Refer to the motor's nameplate for specific wiring configurations (Delta or Wye) and current ratings (0.60/0.34A).
- Ensure the supply voltage matches the motor's rated voltage.
- Connect the motor to a suitable motor starter with appropriate thermal overload protection.
- Verify all connections are tight and insulated.
- Confirm proper grounding of the motor frame.
Figure 2: Close-up of the motor nameplate, displaying critical electrical specifications such as voltage, current, frequency, and phase.
4. Operating Instructions
4.1 Pre-Operation Check
- Confirm all mounting bolts are tightened.
- Ensure no obstructions are present around the motor or driven equipment.
- Verify electrical connections are secure and correct.
4.2 Starting the Motor
Engage the motor starter. Observe the motor for any unusual noises, vibrations, or excessive heating during the initial startup. If any anomalies are detected, immediately shut down the motor and investigate the cause.
4.3 Normal Operation
During normal operation, periodically monitor the motor's temperature, current draw, and sound for any deviations from expected performance. Ensure the motor operates within its rated specifications.
5. Maintenance
Regular maintenance is crucial for extending the lifespan and ensuring reliable operation of your Bauer motor.
- Periodic Inspection: Regularly check for loose connections, worn cables, and signs of corrosion.
- Cleaning: Keep the motor's exterior clean and free of dust, dirt, and debris to ensure proper heat dissipation. Use compressed air for cleaning cooling fins.
- Bearing Lubrication: Consult the motor's specific documentation or manufacturer guidelines for lubrication intervals and recommended lubricant types. Over-lubrication can be as detrimental as under-lubrication.
- Vibration Check: Monitor for increased vibration, which can indicate bearing wear or misalignment.
6. Troubleshooting
This section outlines common issues and potential solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor does not start | No power supply, incorrect wiring, tripped overload, faulty starter | Check power, verify wiring, reset overload, inspect starter |
| Motor overheats | Overload, poor ventilation, incorrect voltage, bearing issues | Reduce load, clear vents, check voltage, inspect bearings |
| Excessive noise/vibration | Misalignment, worn bearings, loose mounting, unbalanced load | Check alignment, replace bearings, tighten mounts, balance load |
| Motor runs slowly | Low voltage, excessive load, single-phasing | Check voltage, reduce load, verify all three phases are present |
If troubleshooting steps do not resolve the issue, contact a qualified technician or Bauer customer support.
7. Specifications
Key technical specifications for the Bauer Sz2-20/Do44-141L-B Motor:
- Brand: Bauer
- Model: Sz2-20/Do44-141L-B
- Phase: 3 Phase
- Voltage: 265/460 Volts
- Frequency: 60 Hz
- Current: 0.60/0.34 Amps
- Material: Copper (windings)
- Manufacturer: BAUER
8. Warranty and Support
For information regarding warranty coverage, technical support, or spare parts, please refer to the documentation provided at the time of purchase or contact Bauer customer service directly. Keep your purchase receipt and motor serial number readily available when seeking support.
