Draper Expert Diesel Injector Alignment Kit

1. Introduction

This manual provides essential instructions for the correct and safe use of the Draper 53863 Expert Diesel Injector Alignment Kit. This specialized tool is designed to accurately hold diesel injectors in their correct position during installation, preventing damage to the connecting fuel lines and ensuring proper engine function. It is specifically engineered for Ford Duratorq diesel engines.

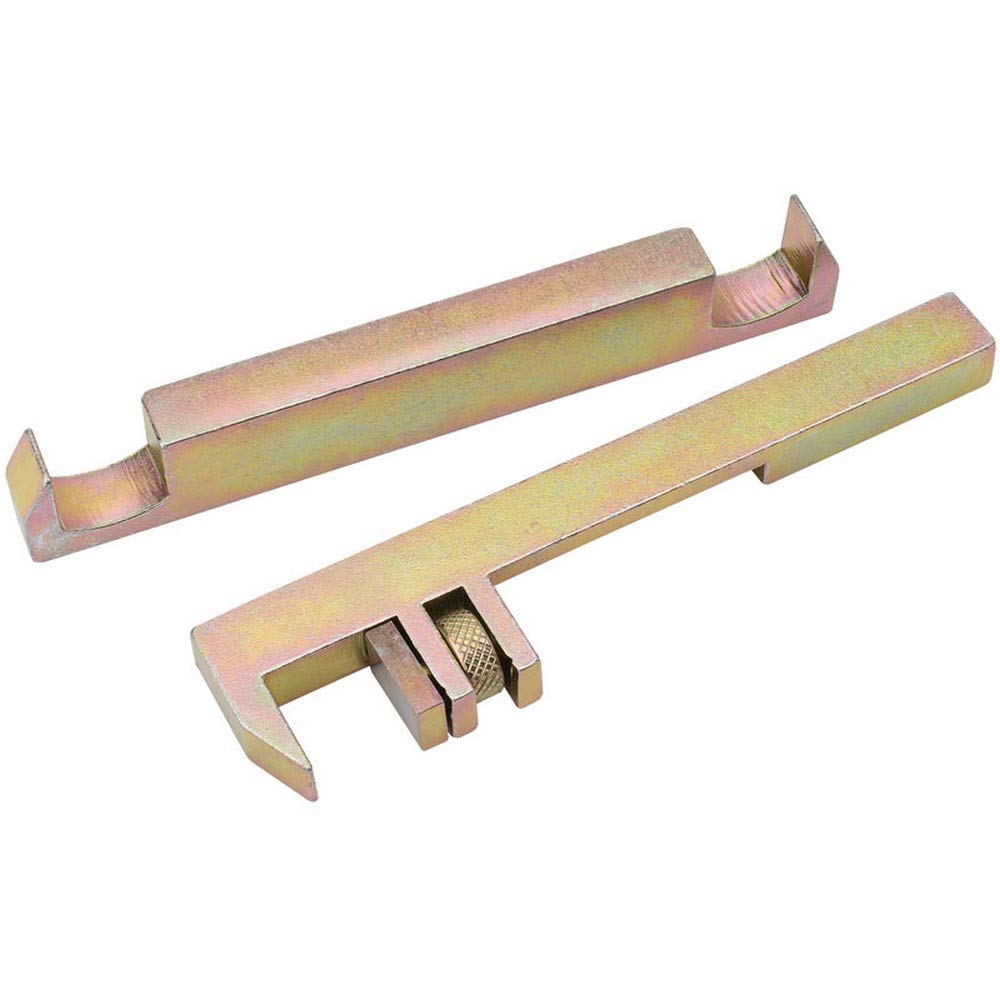

Image 1: Draper 53863 Expert Diesel Injector Alignment Kit. This image shows the primary component of the alignment kit, typically a precision-machined tool designed to fit over the injector and align it correctly.

2. Safety Information

• Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves, when working on vehicle engines.
• Ensure the engine is cool and the vehicle's battery is disconnected before commencing any work.
• Refer to the vehicle manufacturer's service manual for specific procedures and torque settings related to injector installation.
• Do not force the alignment tool. If it does not fit easily, re-check the application and positioning.
• Keep the tool clean and free from debris to ensure accurate alignment.

3. Kit Contents

The Draper 53863 Expert Diesel Injector Alignment Kit typically includes the following components:

• 1 x Diesel Injector Alignment Tool (specific to Ford Duratorq engines)

Image 2: Kit contents for Draper 53863. This image would typically display the single alignment tool included in the kit, showcasing its design and material.

4. Setup

Before using the alignment kit, ensure the following:

1. Identify the correct injector and its mounting location on the engine.
2. Clean the injector bore and surrounding area to remove any dirt or carbon deposits.
3. Ensure the new injector is clean and free from damage.

5. Operating Instructions

Follow these steps to correctly align and install diesel injectors using the Draper 53863 kit:

1. Prepare the Injector: Apply a thin layer of appropriate lubricant or anti-seize compound to the injector body as recommended by the vehicle manufacturer.
2. Position the Injector: Carefully place the injector into its bore in the cylinder head. Do not fully seat it yet.
3. Apply the Alignment Tool: Place the Draper 53863 alignment tool over the top of the injector. The tool is designed to engage with specific features on the injector and the cylinder head to ensure precise vertical and rotational alignment.
4. Seat the Injector: Gently push down on the alignment tool to guide the injector into its correct seated position. The tool will prevent the injector from tilting or rotating incorrectly, which could damage the fuel lines or injector seal.
5. Secure the Injector: Once the injector is correctly seated and aligned, remove the alignment tool. Install the injector retaining clamp or bolts according to the vehicle manufacturer's specifications, tightening to the specified torque.
6. Connect Fuel Lines: Reconnect the fuel lines and electrical connectors to the injector. Ensure all connections are secure and free from leaks.

This kit is suitable for Ford Duratorq diesel engines 2.0L, 2.2L & 2.4L DI, TDCI & TDDI, including models such as Mondeo (2000-2007), Transit (2000-2006), and Jaguar X Type 400.

6. Maintenance

• After each use, clean the alignment tool thoroughly to remove any oil, grease, or debris.
• Store the tool in a dry, clean environment to prevent corrosion.
• Inspect the tool periodically for any signs of wear or damage. Do not use a damaged tool.

7. Troubleshooting

If you encounter issues while using the alignment kit:

• Tool does not fit: Ensure you are working on a compatible Ford Duratorq engine (2.0L, 2.2L, 2.4L DI, TDCI, TDDI) and that the injector is correctly positioned in the bore before attempting to apply the tool.
• Injector not seating: Check for obstructions in the injector bore or damage to the injector or cylinder head. Do not force the injector.
• Damage to fuel lines: This kit is designed to prevent such damage. If damage occurs, it may indicate improper use, an incorrect tool, or pre-existing issues.

8. Specifications

9. Warranty Information

Draper tools are manufactured to high quality standards. For specific warranty details, please refer to the warranty card included with your purchase or visit the official Draper Tools website. Keep your proof of purchase for any warranty claims.

10. Customer Support

For technical assistance, spare parts, or further information regarding the Draper 53863 Expert Diesel Injector Alignment Kit, please contact Draper Tools customer service. Contact details can typically be found on the product packaging or the official Draper Tools website (www.drapertools.com).
