Instruction Manual

Product Overview

This full gasket set is designed for the 2007 Ford Focus with a DURATEC 2.3 DOHC California Design engine. It provides all necessary gaskets and seals for a complete engine overhaul or repair, ensuring a reliable and leak-free seal for various engine components.

The set includes a Multi-layered Steel (MLS) head gasket, intake manifold gasket, exhaust manifold gasket, valve cover gasket, Viton valve stem seals, camshaft seal, O-rings, front crankshaft seal, rear main seal, water pump gasket, other small gaskets, and gasket silicone sealant.

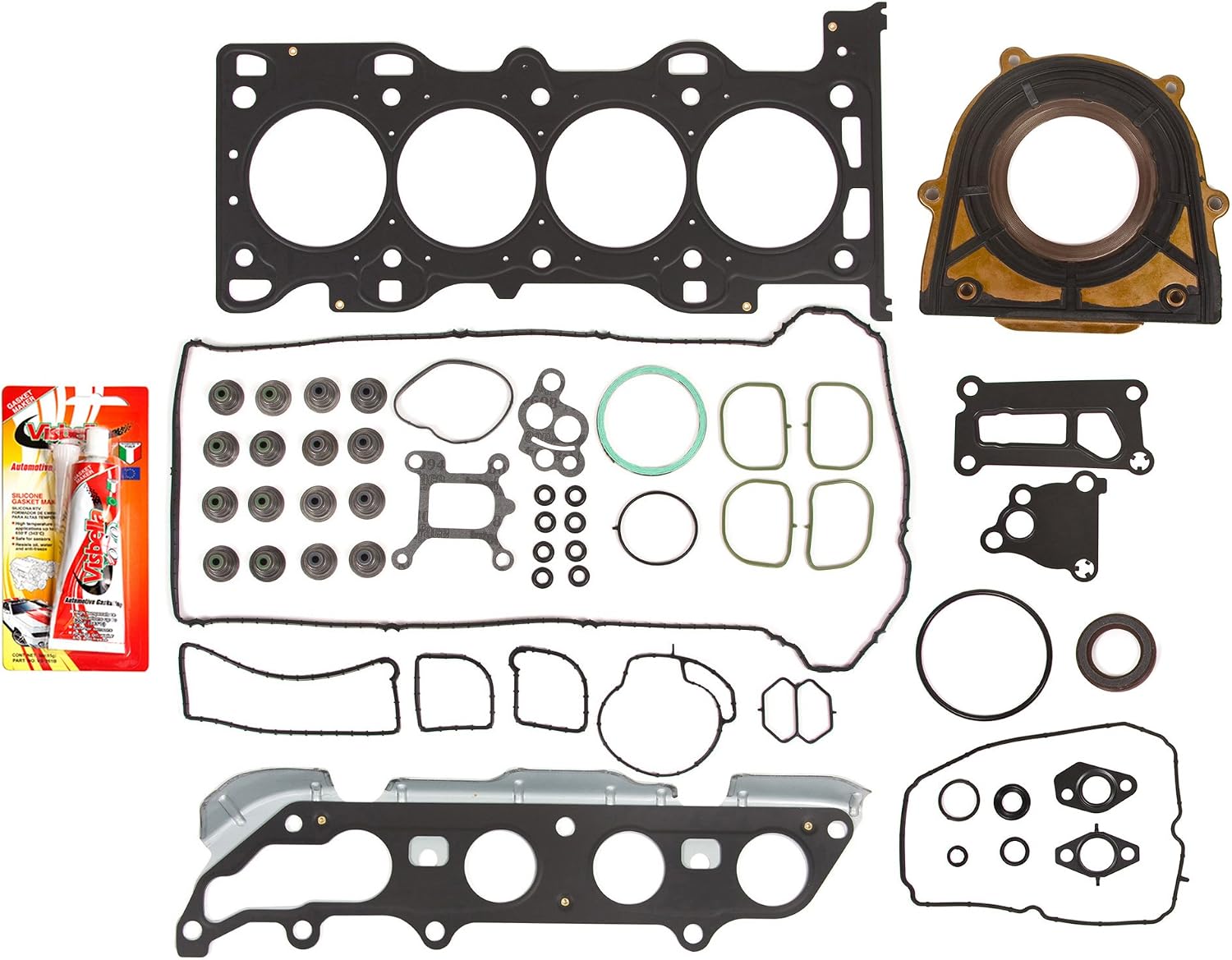

Figure 1: Overview of the complete gasket set components.

Compatibility

This gasket set is compatible with the following vehicle:

• Year: 2007
• Make: FORD
• Model: FOCUS
• Engine: 2.0L 121CID L4 DOHC 16V VIN CODE "N" - California Design

Installation Guidelines

Proper installation is crucial for the longevity and performance of the gaskets. It is highly recommended that installation be performed by a certified automotive technician. Refer to the vehicle's specific service manual for detailed torque specifications and installation procedures.

Key Components and Their Placement:

• Multi-layered Steel (MLS) Head Gasket: Designed for sealing the cylinder head to the engine block. Ensure surfaces are clean and flat before installation.


Figure 2: Detail of the MLS Head Gasket.

• Intake Manifold Gasket: Seals the intake manifold to the cylinder head.
• Exhaust Manifold Gasket: Seals the exhaust manifold to the cylinder head.


Figure 3: Exhaust Manifold Gasket.

• Valve Cover Gasket: Seals the valve cover to the cylinder head, preventing oil leaks.
• Viton Valve Stem Seals: Prevent oil from entering the combustion chamber past the valve stems.

Figure 4: Viton Valve Stem Seals.
• Camshaft Seal: Seals the camshaft.
• O-rings: Various sizes for different sealing points within the engine.
• Front Crankshaft Seal: Seals the front of the crankshaft.
• Rear Main Seal: Seals the rear of the crankshaft.
• Water Pump Gasket: Seals the water pump to the engine block.
• Gasket Silicone Sealant: For use in areas requiring additional sealing, as specified by the vehicle manufacturer.


Figure 5: Various smaller gaskets and seals included in the set.

Always ensure all mating surfaces are thoroughly cleaned and free of old gasket material, oil, and debris before installing new gaskets. Use appropriate torque wrenches for all fasteners to prevent over-tightening or under-tightening, which can lead to leaks or component damage.

Function and Performance

The gaskets in this set are engineered to provide a reliable seal under various engine operating conditions. Key performance characteristics include:

• Sealing Integrity: Designed to withstand high and low temperatures, as well as aggressive engine fluids, to maintain a tight seal.
• Durability: Constructed from materials like Multi-layered Steel (MLS), Alloy Steel, and Silicone to ensure long-lasting performance and resistance to wear.
• Optimized Engine Performance: Proper sealing prevents loss of compression, oil leaks, and coolant leaks, which are critical for maintaining engine efficiency, torque, and reducing emissions.

Inspection and Replacement

Gaskets are wear items and should be inspected periodically during routine engine maintenance or when symptoms of a leak are present. Signs of gasket failure may include:

• Visible fluid leaks (oil, coolant) around engine components.
• Engine overheating (potentially due to coolant loss from a head gasket).
• White smoke from the exhaust (indicating coolant burning).
• Blue smoke from the exhaust (indicating oil burning, possibly from valve stem seals or other oil seals).
• Loss of engine power or misfires (due to compression loss from a faulty head gasket).

If any of these symptoms are observed, it is recommended to have the engine inspected by a qualified technician to diagnose the issue and replace any failing gaskets or seals promptly.

Troubleshooting Common Issues

While this gasket set is designed for high quality, issues can arise from improper installation or other underlying engine problems. This section addresses common issues related to gasket performance:

For complex issues, professional diagnostic services are recommended.

Specifications

Warranty Information

Specific warranty details for this product are not provided in the available information. Please refer to the manufacturer's official website or contact Domestic Gaskets directly for warranty terms and conditions.

Customer Support

For technical assistance, installation inquiries, or product support, please contact Domestic Gaskets through their official channels. Contact information may be available on the product packaging or their official website.
