Tecnolite LED Lamp User Manual
Model: G45E27-LED/4W/30
1. Product Overview
The Tecnolite G45E27-LED/4W/30 is an energy-efficient LED lamp designed for general lighting purposes. It features a standard E27 base and emits a soft warm white light, providing an equivalent illumination to a 25-watt incandescent bulb while consuming significantly less energy.

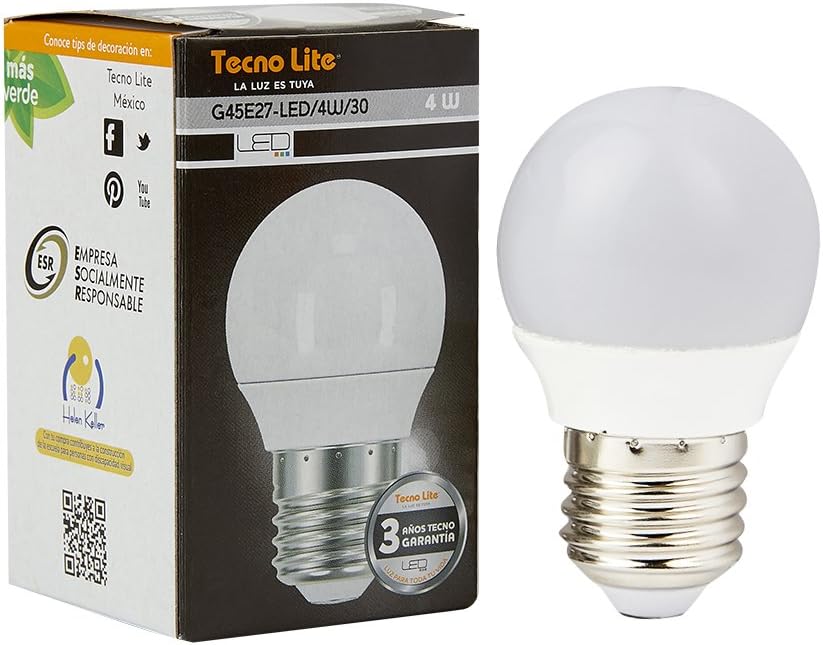

Image 1.1: The Tecnolite G45E27-LED/4W/30 LED lamp shown alongside its retail packaging. The packaging highlights key features such as LED technology, 4W power, E27 base, and a 3-year warranty.
Image 1.2: A close-up view of the Tecnolite G45E27-LED/4W/30 LED lamp, illuminated to demonstrate its soft warm white light output.
2. Safety Instructions
- Ensure power is turned off before installation or removal.
- Do not disassemble or modify the lamp.
- This lamp is designed for indoor and outdoor use, but avoid direct exposure to water unless the fixture is rated for wet locations.
- Do not use with dimmers unless explicitly stated as dimmable. This model is not specified as dimmable.
- Keep out of reach of children.
3. Setup and Installation
The Tecnolite G45E27-LED/4W/30 lamp is designed for easy installation into any standard E27 base fixture.
- Turn off power: Locate the light switch or circuit breaker controlling the fixture and turn off the power supply.
- Remove old bulb (if applicable): Carefully unscrew the existing bulb from the fixture. Allow it to cool if it was recently on.
- Install new LED lamp: Gently screw the Tecnolite G45E27-LED/4W/30 lamp into the E27 base socket until it is snug. Do not overtighten.
- Restore power: Turn the power supply back on at the switch or circuit breaker.
- Test: Turn on the light switch to ensure the lamp functions correctly.
Image 3.1: A detailed view of the E27 screw base of the Tecnolite LED lamp, showing the standard threading for installation into compatible fixtures.
4. Operating Instructions
Once installed, the Tecnolite G45E27-LED/4W/30 lamp operates like any standard light bulb.
- Simply use the wall switch or fixture switch to turn the light on or off.
- The lamp provides instant full brightness upon activation.
- This lamp is designed for continuous operation within its specified voltage range (127 Volts).
Image 4.1: An example of a living space illuminated with warm lighting, similar to the output of the Tecnolite G45E27-LED/4W/30 lamp, demonstrating its application in residential settings.
5. Maintenance
The Tecnolite LED lamp requires minimal maintenance due to its long lifespan and durable design.
- Cleaning: Ensure the lamp is off and cool before cleaning. Wipe the lamp with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
- Replacement: Replace the lamp when its light output significantly diminishes or it ceases to function. Follow the installation steps for replacement.
- Storage: If storing the lamp, keep it in its original packaging or a protective container in a cool, dry place.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not light up. | No power to the fixture, loose connection, or faulty lamp. | Check power switch and circuit breaker. Ensure lamp is screwed in tightly. Test lamp in another working fixture. |
| Lamp flickers. | Incompatible dimmer, loose connection, or voltage fluctuation. | Ensure no dimmer is used (this lamp is not dimmable). Tighten lamp. Consult an electrician if voltage issues persist. |
| Light output is too low. | Incorrect lamp for desired brightness, or lamp nearing end of life. | Verify the lamp's lumen output (250 lm) meets your needs. Replace if lamp is old. |
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | G45E27-LED/4W/30 |
| Brand | Tecnolite |
| Bulb Type | LED |
| Base Type | E27 |
| Wattage | 4 Watts |
| Incandescent Equivalent | 25 Watts |
| Luminous Flux | 250 Lumens |
| Light Color | Soft Warm White |
| Voltage | 127 Volts |
| Energy Savings | 75-90% |
| Dimensions (L x W x H) | 9.5 x 5 x 5 cm |
| Weight | 100 g |
| Usage Environment | Indoor and Outdoor |
Image 7.1: The Tecnolite LED lamp held in a hand, illustrating its compact size. Key dimensions of 45mm width and 76mm height are shown.
8. Warranty and Support
Tecnolite offers a warranty for this product. Please refer to the official Tecnolite website or the warranty information included with your purchase for full details.
- Warranty Period: The product comes with a 3-year warranty.
- Contact Support: For technical assistance or warranty claims, please visit the official Tecnolite website or contact their customer service.
- Online Resources: More information about Tecnolite products can be found at www.tecnolite.com.mx.
