ThreadNanny Double Piping Presser Foot

Introduction

The ThreadNanny 7mm Piping Foot is an essential accessory designed for crafters and sewers to efficiently create and attach piping cord. This specialized presser foot features a two-groove underside that securely holds and guides the cord, ensuring professional and consistent results. It is compatible with a wide range of low shank snap-on sewing machines, simplifying tasks that would otherwise be tedious if performed manually.

Safety Information

• Always ensure your sewing machine is turned off and unplugged before attaching or removing any presser foot.
• Verify that the presser foot is securely attached to the machine's presser foot holder before beginning any sewing operation.
• Use the correct needle size and type for your fabric and thread to prevent damage to the foot or machine.
• Keep fingers clear of the needle and moving parts during operation.
• Store the presser foot in a safe place when not in use to prevent damage or loss.

Product Features

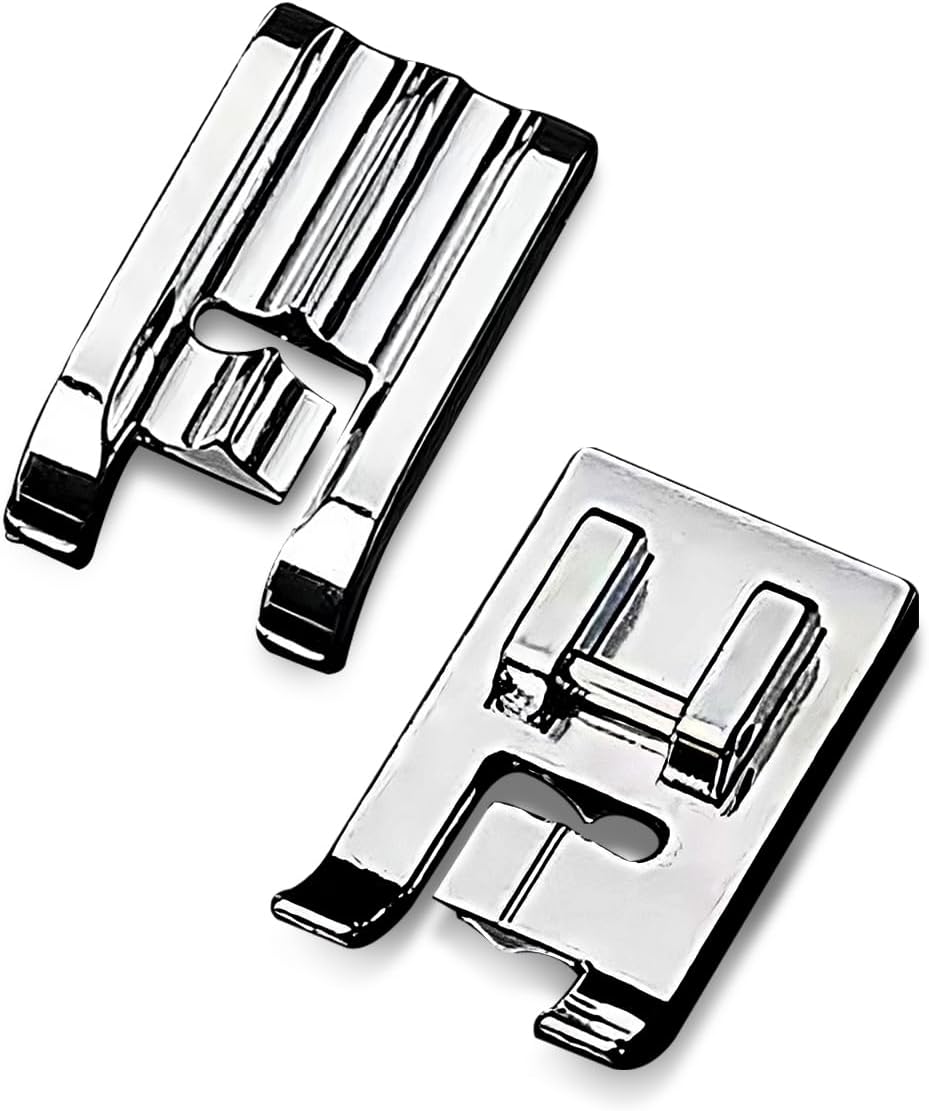

Image: The ThreadNanny Double Piping Presser Foot, showcasing its two-groove design for holding piping cord.

• High Quality Construction: Durable metal design for long-lasting performance.
• Two-Groove Underside: Specifically designed with two grooves to hold and guide piping cord, ensuring even and professional stitching.
• Versatile Use: Ideal for both creating your own piping cord and attaching pre-made piping to fabric.
• Wide Compatibility: Fits most low shank snap-on sewing machines, including Brother, Babylock, Singer (with potential adapter), Euro-Pro, Janome, Kenmore, White, Juki, New Home, Simplicity, Necchi, and Elna.
• Part Numbers: Equivalent to part numbers SA192, F067, XF2860001.

Setup

Attaching the Double Piping Presser Foot to your sewing machine is a straightforward process. Ensure your machine is powered off before proceeding.

1. Raise the Presser Foot Lever: Lift the presser foot lever to its highest position.
2. Remove Existing Presser Foot: If another presser foot is attached, press the release button or lever at the back of the presser foot holder to detach it.
3. Align the Piping Foot: Position the Double Piping Presser Foot so that the bar on the foot aligns with the groove on the presser foot holder.
4. Snap into Place: Lower the presser foot lever until the foot snaps securely into the holder. You should hear a click.
5. Verify Attachment: Gently try to pull the foot off to ensure it is firmly attached before turning on your machine.

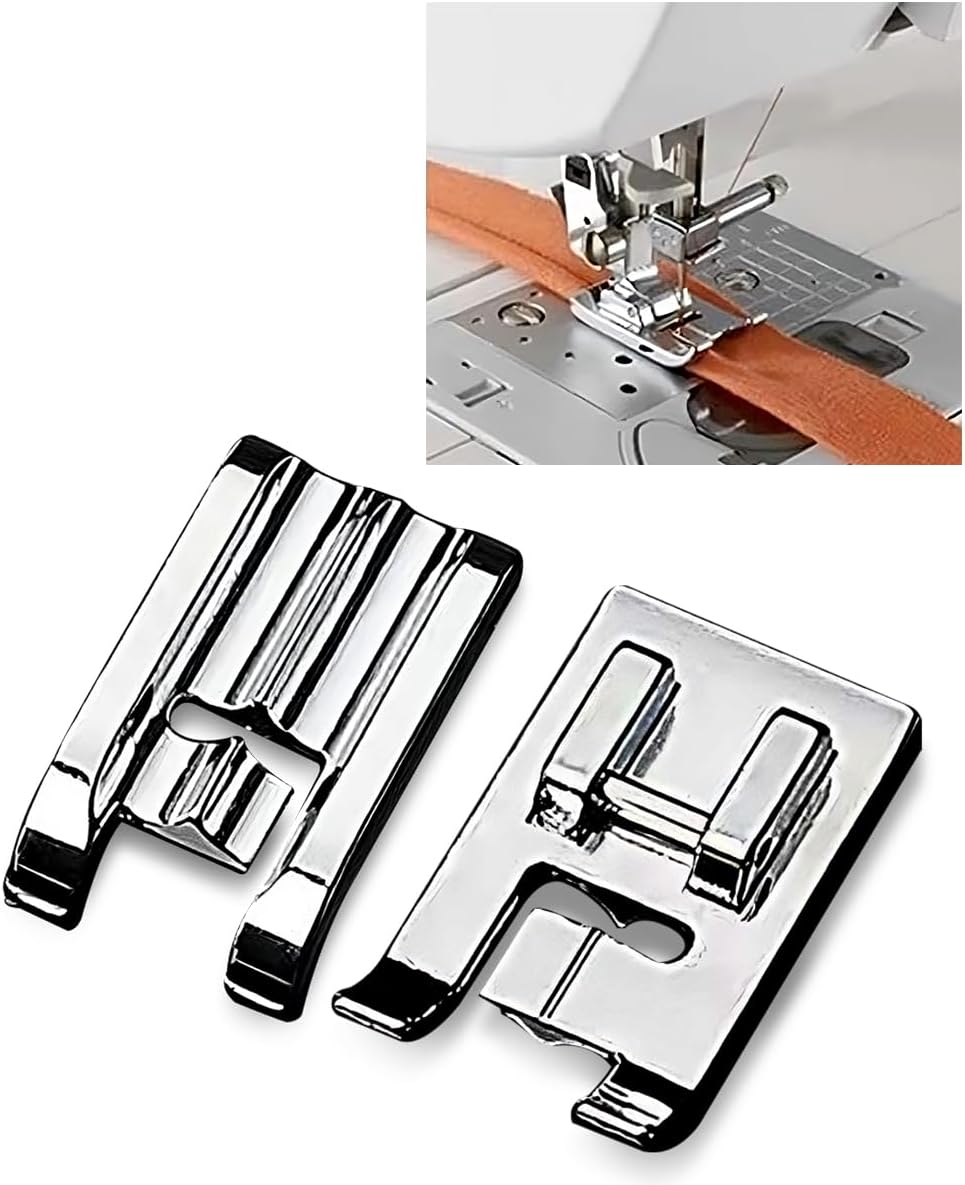

Image: The Double Piping Presser Foot correctly installed on a sewing machine, ready for use.

Operating Instructions

The Double Piping Presser Foot is designed to simplify the creation and attachment of piping. Follow these steps for optimal results:

Creating Piping Cord:

1. Prepare Fabric Strip: Cut a fabric strip on the bias (diagonal to the grain) for flexibility, or on the straight grain if less stretch is desired. The width should be sufficient to wrap around your chosen cord with seam allowance.
2. Insert Cord: Place your piping cord inside the folded fabric strip.
3. Position Under Foot: Place the fabric-wrapped cord under the piping foot, ensuring the cord sits snugly within one of the two grooves on the underside of the foot.
4. Adjust Needle Position: Adjust your needle position if necessary so that it stitches as close as possible to the cord without stitching onto it.
5. Sew: Sew slowly and steadily, guiding the fabric and cord to maintain an even seam allowance. The foot will help keep the cord in place.

Attaching Piping:

1. Prepare Project: Pin or baste your prepared piping to the right side of your fabric project edge, aligning raw edges.
2. Position Under Foot: Place the project with the piping under the piping foot. The piping cord should sit in one of the grooves, allowing the needle to stitch directly next to the cord.
3. Sew: Stitch along the piping, ensuring your needle is as close to the cord as possible. The foot's design helps maintain a consistent seam.
4. Add Second Fabric Layer (if applicable): If attaching piping between two fabric layers, place the second fabric layer right sides together over the first layer and piping. Stitch again, following the previous stitch line, using the piping foot to guide.

Maintenance

• Cleaning: After each use, gently wipe the presser foot with a soft, dry cloth to remove any lint or dust. Avoid using harsh chemicals or abrasive materials.
• Storage: Store the presser foot in a clean, dry place, preferably in its original packaging or a dedicated sewing accessory box, to prevent scratches or damage.
• Inspection: Periodically inspect the foot for any signs of wear, bending, or damage. If the foot appears damaged, replace it to ensure proper sewing machine function and stitch quality.

Troubleshooting

Specifications

Warranty and Support

For any questions regarding the ThreadNanny Double Piping Presser Foot, including warranty information or technical support, please contact ThreadNanny directly through their official channels or the retailer from whom the product was purchased.

As this product is from a small business brand, your support is greatly appreciated. For further assistance, refer to the contact information provided with your purchase or visit the ThreadNanny store online.

Note: Specific warranty terms may vary. Please retain your proof of purchase for any warranty claims.
