1. Introduction
Thank you for choosing the GLOBO LIGHTING Outdoor LED Luminaire. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting product. Please read these instructions carefully before installation and retain them for future reference.
1.1 Safety Information
- Electrical Safety: Installation must be performed by a qualified electrician in accordance with all local and national electrical codes. Ensure the power supply is disconnected before installation, maintenance, or cleaning.
- Outdoor Use: This luminaire is designed for outdoor use (IP44 rated). Ensure all connections are waterproof and sealed correctly to prevent water ingress.
- Handling: Handle the product with care. Do not drop or subject it to strong impacts.
- LED Module: The LED light source is integrated and not user-replaceable. Do not attempt to open or modify the LED module.
2. Product Overview
The GLOBO LIGHTING Outdoor LED Luminaire (Model 9007371303656) is a modern, energy-efficient outdoor lighting solution. It features a durable stainless steel housing and a translucent plastic cover, providing warm white illumination suitable for various outdoor settings.
2.1 Key Features
- Integrated 11W LED, 750 lumens, 3000K warm white.
- Durable dark grey stainless steel housing with transparent plastic cover.
- IP44 rated for outdoor use, resistant to splashing water.
- Energy efficiency class A.
- Modern design, suitable for universal outdoor applications.
2.2 Components
The luminaire consists of the main body, an integrated LED module, and a mounting base. All necessary mounting hardware is typically included.
Figure 1: GLOBO LIGHTING Outdoor LED Luminaire, showing its sleek stainless steel design and translucent top.
Figure 2: The luminaire installed in an outdoor garden environment, demonstrating its aesthetic integration.
3. Setup and Installation
This luminaire is designed for flush or semi-flush mounting, typically as a wall-mounted or bollard-style fixture. It requires a wired electrical connection. Professional installation is highly recommended.
3.1 Pre-Installation Checklist
- Ensure the power supply to the installation area is switched off at the main circuit breaker.
- Verify that the mounting surface is suitable and can support the weight of the luminaire.
- Gather all necessary tools (e.g., drill, screwdriver, wire strippers, sealant).
- Confirm the luminaire's dimensions and plan the installation location.

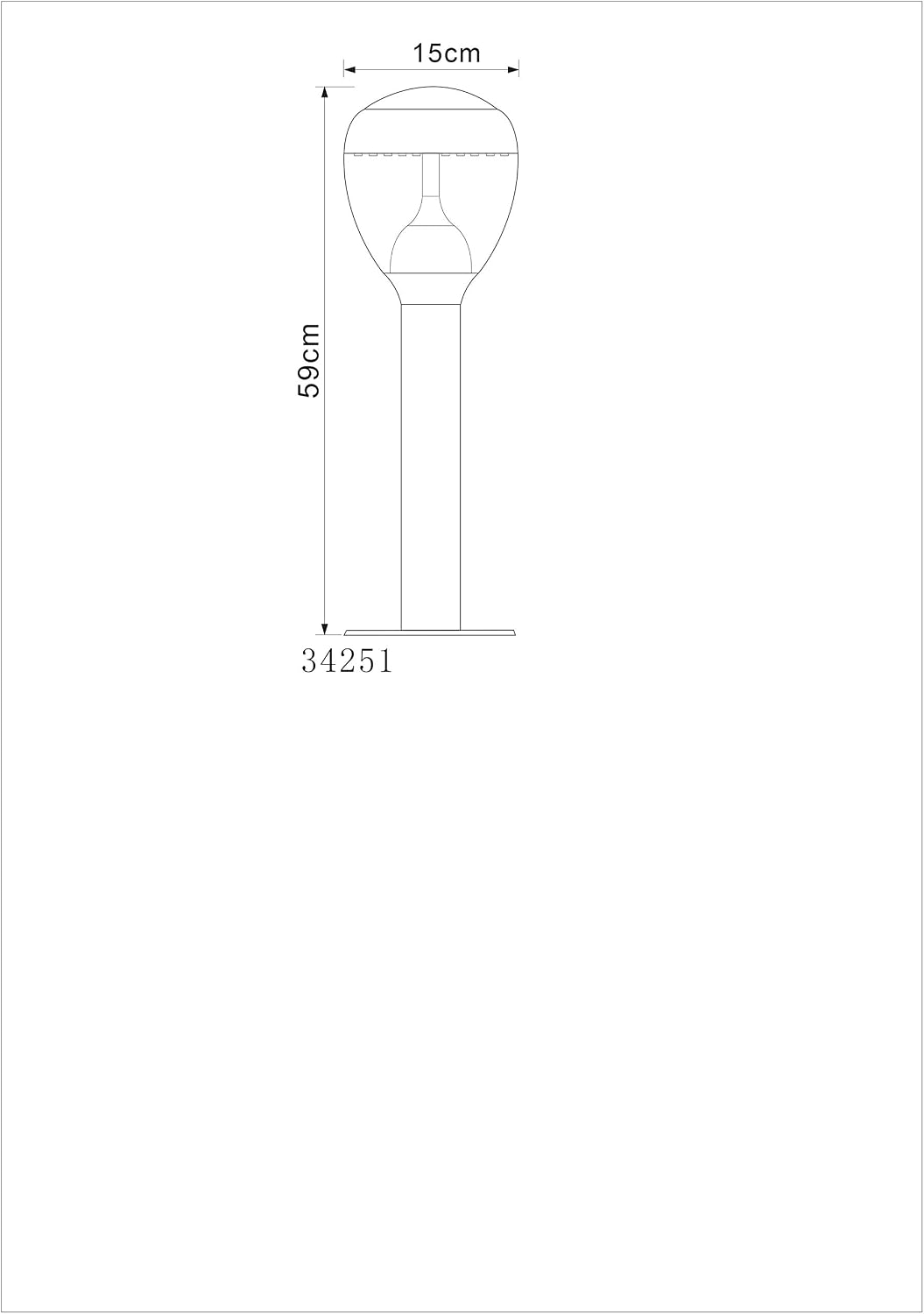

Figure 3: Technical drawing showing the dimensions of the luminaire (15cm diameter, 59cm height).
3.2 Installation Steps (General Guide)
- Mark Mounting Points: Use the luminaire's base as a template to mark the drilling points on the desired surface.
- Drill Holes: Drill pilot holes at the marked points. Insert appropriate wall plugs if necessary.
- Wire Connection: Carefully connect the luminaire's electrical wires to the main power supply wires. Ensure correct polarity (Live, Neutral, Earth) and secure all connections with appropriate connectors. Use waterproof connectors for outdoor installations.
- Mount Luminaire: Secure the luminaire to the mounting surface using the provided screws. Ensure it is firmly attached.
- Seal: Apply a suitable outdoor sealant around the base of the luminaire and any cable entry points to maintain the IP44 rating and prevent water penetration.
- Restore Power: Once installation is complete and all connections are secure and sealed, restore power at the main circuit breaker.
4. Operating Instructions
The GLOBO LIGHTING Outdoor LED Luminaire operates by direct electrical connection. Once properly installed and connected to a power source, it will illuminate when power is supplied.
- Power On/Off: Control the luminaire using the external wall switch or timer connected to its power supply circuit.
- Automatic Operation: For automated operation, connect the luminaire to a compatible outdoor timer or a dusk-to-dawn sensor (not included).
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your luminaire.
- Cleaning: Disconnect power before cleaning. Wipe the stainless steel housing with a soft, damp cloth. For the plastic cover, use a mild, non-abrasive cleaner to avoid scratching. Do not use harsh chemicals or abrasive materials.
- Inspection: Periodically inspect the luminaire for any signs of damage, loose connections, or wear. Check the integrity of the sealant around the base.
- LED Module: The integrated LED module does not require maintenance or replacement. If the light source fails, the entire luminaire should be replaced.
6. Troubleshooting
If you encounter issues with your luminaire, refer to the following troubleshooting guide:
| Problem | Possible Cause | Solution |
|---|---|---|
| Luminaire does not light up. | No power supply. | Check the circuit breaker and wall switch. Ensure power is on. |
| Loose electrical connection. | Disconnect power and check all wiring connections. Re-secure if loose. (Consult a qualified electrician). | |
| Faulty LED module. | If all power and connections are verified, the integrated LED module may be faulty. The entire luminaire may need replacement. Contact support. | |
| Light is dim or flickers. | Inconsistent power supply. | Check for voltage fluctuations or issues with the electrical circuit. |
| Dirt or debris on cover. | Clean the plastic cover thoroughly. |
If the problem persists after attempting these solutions, please contact customer support.
7. Specifications
| Specification | Value |
|---|---|
| Model Number | 9007371303656 |
| Brand | GLOBO |
| Product Dimensions (L x W x H) | 10.01 x 10.01 x 59 cm (approx. 15 cm diameter, 59 cm height) |
| Item Weight | 879.97 grams (approx. 1.94 pounds) |
| Material | Stainless Steel |
| Finish | Satin |
| Color | Stainless Steel (Dark Grey) |
| Shade Material | Stainless Steel |
| Light Color | Warm White |
| Color Temperature | 3000K |
| Luminous Efficacy | 750 lm |
| Bulb Type | Integrated LED |
| Number of Bulbs | 1 |
| Wattage | 11 W |
| Voltage | 180 V (Input voltage may vary by region, typically 100-240V compatible) |
| Power Source | Corded Electric |
| Indoor/Outdoor Use | Outdoor |
| Waterproof Rating | IP44 (Splash-proof) |
| Energy Efficiency Class | A |
| Mounting Type | Wall Mount / Flush Mount |
| Included Components | Bulbs included (integrated LED) |
8. Warranty and Support
For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. GLOBO LIGHTING products are designed for durability and performance.
8.1 Customer Support
If you have any questions, require technical assistance, or need to report a defect, please contact your point of purchase or the GLOBO LIGHTING customer service department. Please have your model number (9007371303656) and proof of purchase ready when contacting support.
