Bosch Dishwasher Mounting Set Instruction Manual

1. Introduction

This manual provides essential information for the proper installation and use of the Bosch Dishwasher Mounting Set. This genuine replacement mounting set is designed to securely fasten your dishwasher, ensuring stability and safe operation. Please read these instructions carefully before proceeding with installation.

2. Safety Precautions

Always prioritize safety when working with appliances. Before beginning any installation or repair, ensure the dishwasher is disconnected from the power supply and water lines. If you are unsure about any step, it is recommended to consult a qualified technician. Repairs to gas appliances should only be made by a Gas Safe Registered engineer.

3. Components Overview

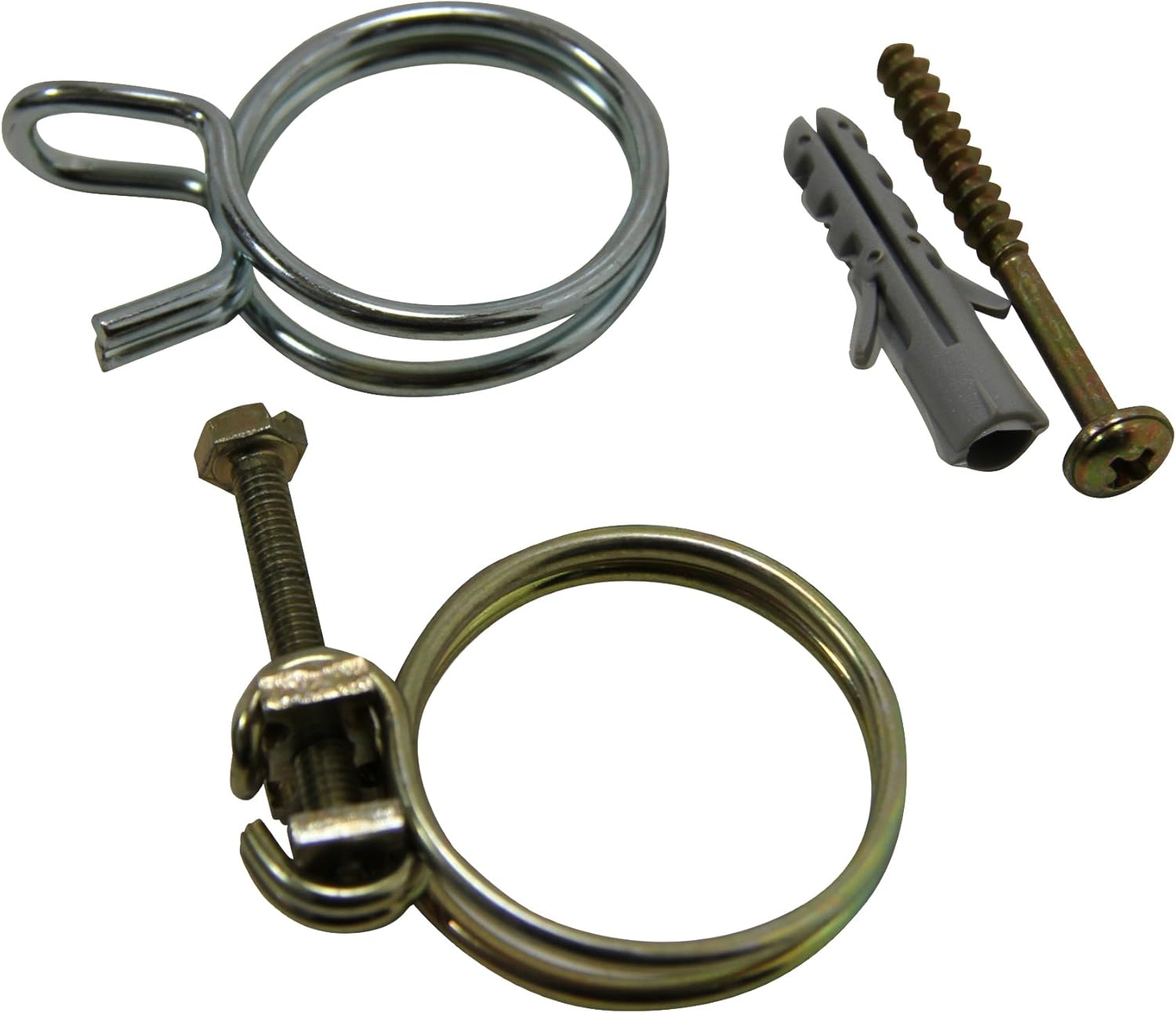

This image displays the various components included in the Bosch Dishwasher Mounting Set. It features a spring-type clamp, a screw-adjustable hose clamp, a wood screw, and a plastic wall plug. These parts are designed to secure the dishwasher during installation.

The mounting set typically includes various fasteners and brackets necessary to secure the dishwasher to the underside of a countertop or to adjacent cabinetry. Familiarize yourself with each component before beginning the installation process.

• Clamps: Used to secure hoses or other flexible connections.
• Screws: For fastening brackets or the dishwasher frame to a stable surface.
• Wall Plugs (Anchors): Used in conjunction with screws for secure fastening into drywall or masonry.

4. Setup and Installation

The primary function of this mounting set is to stabilize the dishwasher within its cabinet opening. Proper installation prevents the dishwasher from tipping or moving during operation.

1. Position the Dishwasher: Carefully slide the dishwasher into its designated opening, ensuring it is level and aligned with the surrounding cabinetry.
2. Locate Mounting Points: Identify the mounting tabs or brackets on the top or sides of the dishwasher frame. These are typically designed to align with the underside of the countertop or the side panels of the cabinet.
3. Secure Top Mount (if applicable): If your dishwasher has top mounting tabs, use the provided screws to fasten these tabs to the underside of the countertop. Ensure the screws are driven into solid wood or use appropriate anchors if fastening into other materials.
4. Secure Side Mount (if applicable): If your dishwasher uses side mounting brackets, extend these brackets and fasten them to the side panels of the adjacent cabinets using the provided screws.
5. Hose Clamps: Use the provided clamps to secure any hoses (e.g., drain hose, water supply hose) to their respective connections, ensuring a tight, leak-free seal.
6. Final Check: Gently push and pull on the dishwasher to confirm it is securely mounted and does not wobble.

5. Operating

The mounting set is a static component designed for structural support. Once correctly installed, it does not require active operation. Its function is to maintain the stability and position of the dishwasher during its normal wash cycles.

6. Maintenance

The Bosch Dishwasher Mounting Set requires minimal maintenance. Periodically, it is advisable to:

• Check Fasteners: Every 6-12 months, inspect the screws and clamps to ensure they remain tight and secure. Vibrations from the dishwasher's operation can sometimes loosen fasteners over time.
• Inspect Components: Look for any signs of corrosion or damage to the metal components. Replace any damaged parts immediately.

7. Troubleshooting

If your dishwasher appears unstable or moves during operation after installation of the mounting set, consider the following:

• Dishwasher Wobbles: Re-check all mounting screws and clamps to ensure they are fully tightened. Verify that the dishwasher is level.
• Loose Hoses: If you notice leaks or unusual noises from hoses, ensure the hose clamps are securely fastened.
• Incorrect Fasteners: Ensure the correct type and size of screws/anchors were used for your specific countertop or cabinet material.

If issues persist, consult the main dishwasher appliance manual or contact a professional.

8. Specifications

9. Warranty Information

This Bosch Dishwasher Mounting Set comes with a manufacturer's warranty of 6 Months from the date of purchase. Please retain your proof of purchase for any warranty claims. The warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, misuse, or unauthorized modifications.

10. Support

For further assistance or technical support regarding your Bosch Dishwasher Mounting Set, please refer to the original dishwasher appliance manual or visit the official Bosch website. You may also contact Bosch customer service directly for specific inquiries related to genuine replacement parts.

Bosch Customer Service: Please refer to your regional Bosch website for contact details.
