MTD Genuine Parts 954-0329A V-Belt Instruction Manual

1. Introduction

This manual provides instructions and important information for the MTD Genuine Parts V-Belt, part number 954-0329A. This V-belt is an Original Equipment Manufacturer (OEM) authorized replacement part designed for use in various MTD lawn and garden equipment. Proper installation and maintenance are crucial for optimal performance and longevity of your equipment.

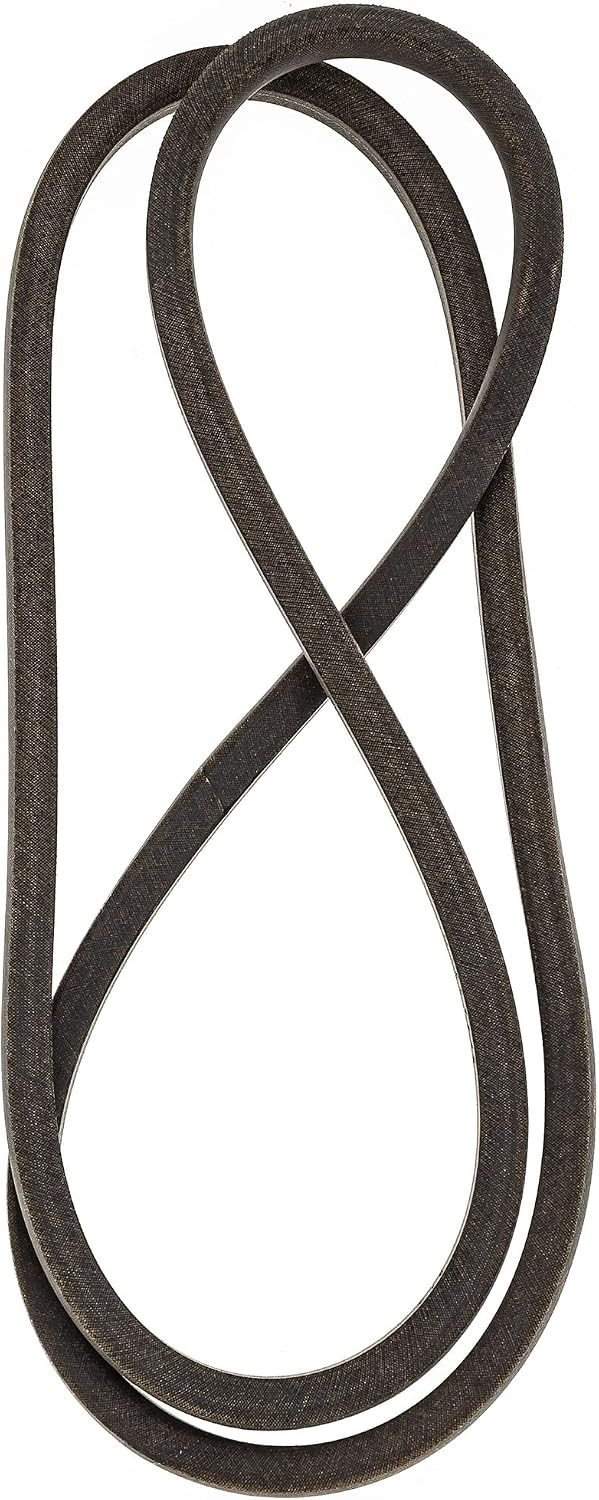

Image 1: General view of the MTD Genuine Parts 954-0329A V-Belt. This image displays the overall shape and texture of the replacement V-belt.

2. Safety Information

Always prioritize safety when working with power equipment and replacement parts. Failure to follow safety guidelines can result in serious injury.

• Disconnect Power: Before attempting any installation or maintenance, ensure the equipment is turned off and the spark plug wire is disconnected to prevent accidental starting.
• Wear Protective Gear: Always wear appropriate personal protective equipment, including safety glasses and heavy-duty gloves, to protect against cuts and pinches.
• Consult Equipment Manual: Refer to your specific equipment's owner's manual for detailed safety instructions and belt replacement procedures unique to your model.
• Secure Equipment: Ensure the equipment is stable and cannot move or tip over during the installation process.

3. Compatibility

The MTD Genuine Parts 954-0329A V-Belt is designed to fit various MTD models. To confirm compatibility with your specific equipment, verify the required OEM part number in your equipment's owner's manual or on the existing belt.

Image 2: Close-up view of the MTD 954-0329A V-Belt, showing the part number printed on the belt surface for identification.

4. Installation

The following are general steps for V-belt replacement. Always consult your equipment's specific service manual for detailed instructions and diagrams.

1. Prepare Equipment: Ensure the equipment is off, cooled down, and the spark plug wire is disconnected. Position the equipment on a flat, stable surface.
2. Access Belt Area: Depending on your equipment, you may need to remove guards, deck covers, or other components to gain access to the belt drive system.
3. Relieve Tension: Locate any tensioning mechanisms (e.g., idler pulleys, tension springs) and relieve tension on the old belt.
4. Remove Old Belt: Carefully remove the worn or broken belt from the pulleys. Note its routing path for correct installation of the new belt.
5. Install New Belt: Route the new MTD 954-0329A V-Belt around the pulleys, following the exact path of the old belt. Ensure it is seated correctly in all pulley grooves.
6. Apply Tension: Re-engage the tensioning mechanism to apply proper tension to the new belt. Check for correct alignment and tension according to your equipment's manual.
7. Reassemble: Reinstall any guards, covers, or components that were removed.
8. Test Operation: Reconnect the spark plug wire. Start the equipment and test its operation in a safe, open area to ensure the belt functions correctly.

5. Operating Considerations

After installing the new V-belt, ensure your equipment is operated according to its manufacturer's guidelines. Avoid sudden starts or stops, and do not overload the equipment, as this can prematurely wear the belt.

6. Maintenance

Regular inspection and maintenance of your V-belt will extend its lifespan and ensure efficient operation of your equipment.

• Inspect Regularly: Periodically inspect the belt for signs of wear, cracking, fraying, glazing, or stretching. Replace the belt if any damage is observed.
• Check Tension: Ensure the belt maintains proper tension as specified in your equipment's manual. An overly loose belt can slip, while an overly tight belt can cause excessive wear on pulleys and bearings.
• Keep Clean: Keep the belt and pulleys free from dirt, debris, oil, and grease, which can cause slippage and accelerated wear.
• Storage: When storing equipment for extended periods, ensure the belt is not under excessive tension.

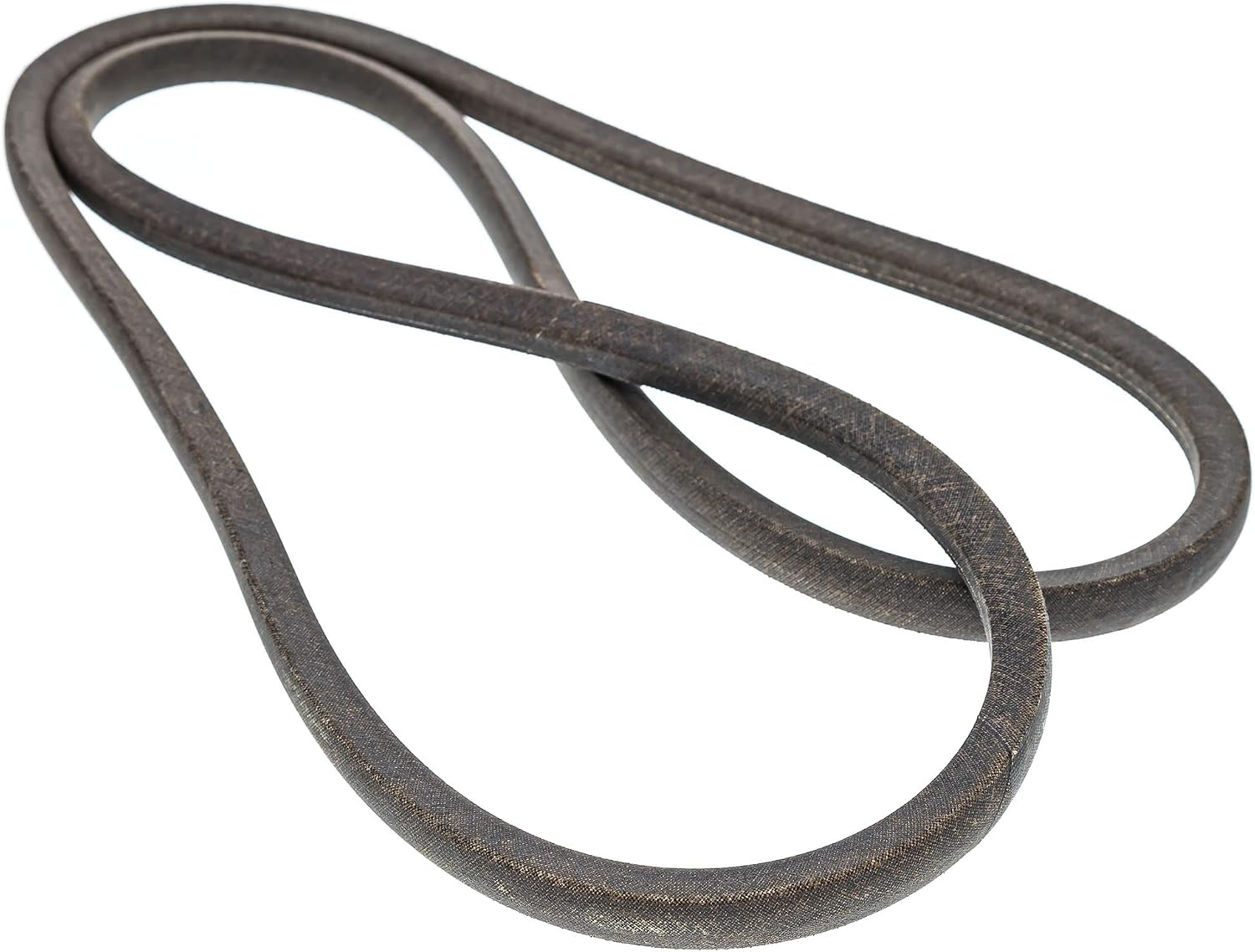

Image 3: An alternative view of the MTD V-Belt, useful for examining its condition during maintenance checks.

7. Troubleshooting

If you experience issues with your equipment's belt drive system, consider the following common troubleshooting points:

• Belt Slipping: This can be caused by incorrect tension (too loose), worn belt, glazed belt, or oil/grease on the belt or pulleys. Check tension and inspect the belt for wear or contamination.
• Belt Breaking Prematurely: Possible causes include incorrect belt type, improper installation, excessive tension, misaligned pulleys, or foreign objects interfering with the belt path.
• Excessive Noise: Squealing or grinding noises can indicate a loose belt, worn bearings in pulleys, or a misaligned belt.
• Equipment Not Engaging: Ensure the belt is correctly routed and tensioned, and that all engagement mechanisms are functioning properly.

8. Specifications

9. Warranty

This MTD Genuine Parts V-Belt comes with a limited warranty of 3 months from the date of purchase. This warranty covers defects in material and workmanship under normal use. For specific warranty claims or details, please refer to the official MTD Genuine Parts warranty policy or contact customer support.

10. Support

For further assistance, technical support, or to inquire about other MTD Genuine Parts, please visit the official MTD Genuine Parts website or contact their customer service department. When contacting support, please have your equipment model number and the V-belt part number (954-0329A) available.

You can find more information and contact details by visiting the MTD Genuine Parts Store.
